How to Fix A Broken iPhone 6 Screen Replacement

Before the release of iPhone 6, all rumors predicted that Apple would adopt the Sapphire Glass instead of the Corning Gorilla Glass to make it stronger and more solid than ever. However, for some reasons, the screen glass of iPhone 6 and 6 plus is still made from Corning Gorilla Glass. For most people, breaking the screen of your iPhone 6 may be the problem. Though Apple has offered a $109 service for replacing the broken iPhone 6 screen, it may not be the most convenient way for you because you have to make an appointment and drive a few hours to the apple store for just a few minutes work. Here we will walk you through a step by step easy repair guide of how to replace your iPhone 6 broken screen.

Tools Needed:

Screwdriver

Plastic Spudger Tool

Tweezers

Case Opening Tool

Suction Cup Tool

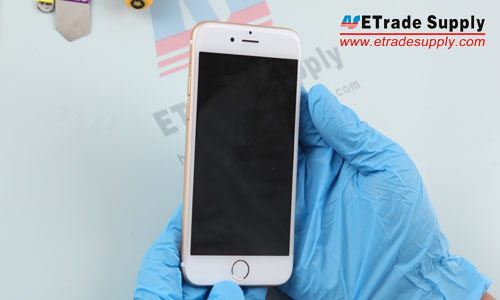

1. Power off the Apple iPhone 6.(Please make sure you've shut down your iPhone 6 before doing anything else in case of the causing the motherboard short circuit)

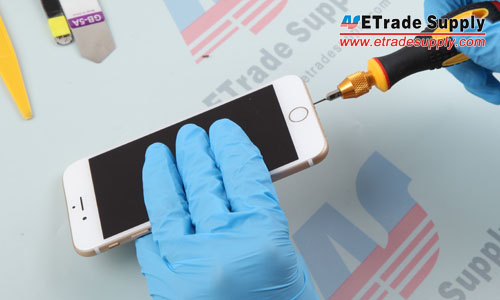

2. Undo the 2 charging port screws. (Notice: there're lots of different screws inside, mark or separate them when disassembling to prevent confusion.)

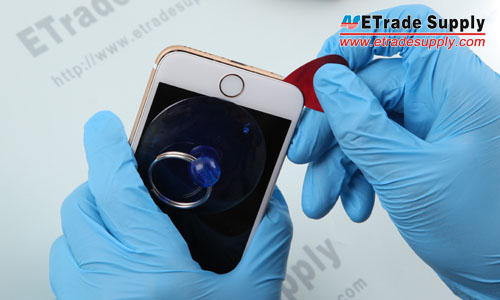

3. Use the suction cup tool and case opening tool to separate the LCD assembly from the rear housing assembly. (Notice: be careful not to damage the flex ribbons.)

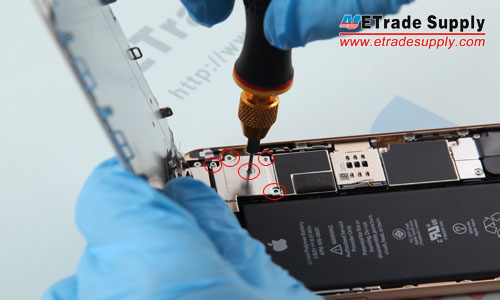

4. Undo the 5 screws that lock the metal cover above the LCD assembly flex ribbon connectors.

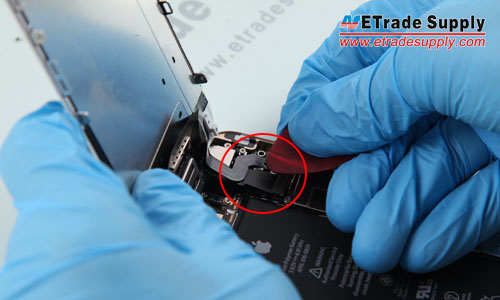

5. Carefully pry up the 3 connectors.

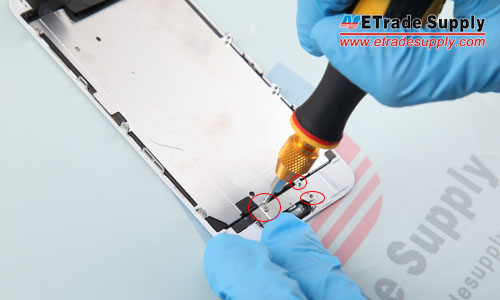

6. Undo the 3 screws from the home button bracket.

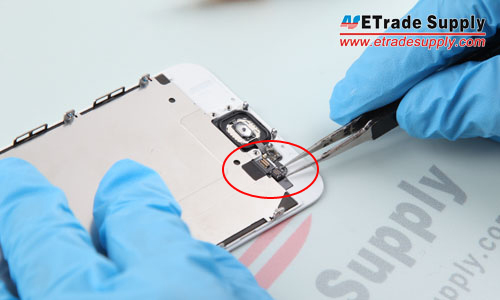

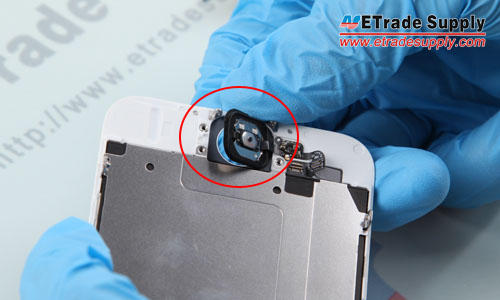

7. Carefully pry up the home button flex ribbon connector, gently poke the home button and take it out.

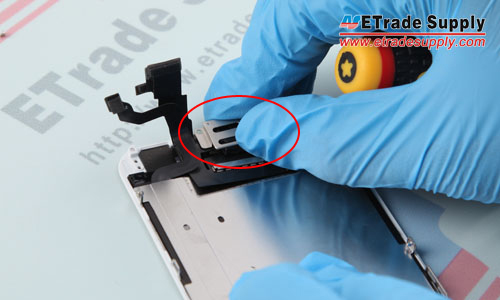

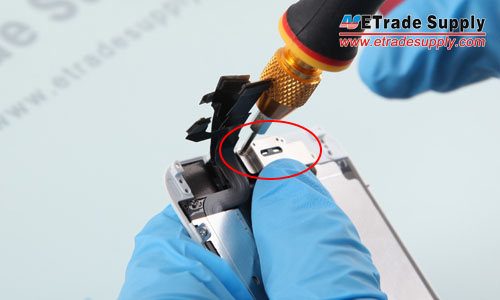

8. Undo the 2 screws that lock the metal cover above the earpiece speaker and front facing camera.

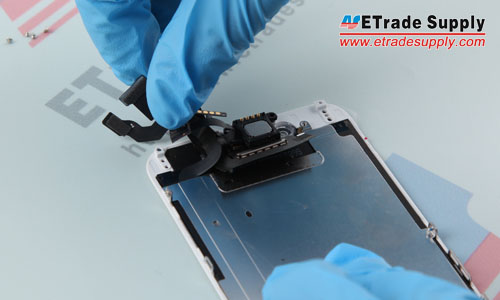

9. Remove the front facing camera and the earpiece speaker.

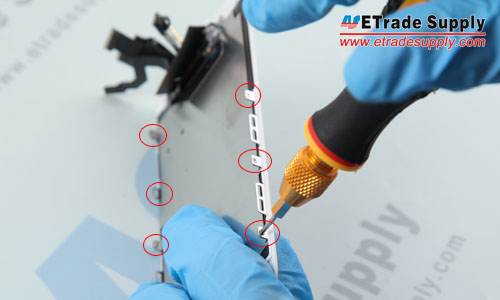

10. Undo the 6 screws that lock the LCD frame and LCD back plate.

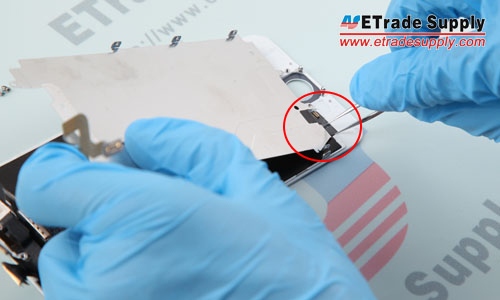

11. Use tweezers to carefully pick up the flex ribbon connector and remove the LCD back plate.

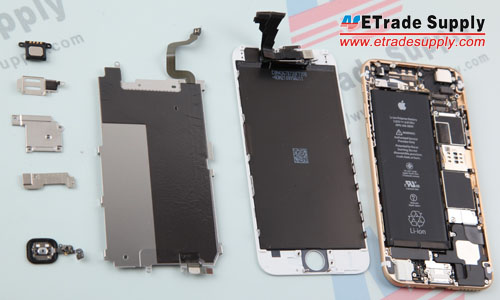

12. Separated the LCD assembly, metal plate and rear housing assembly.

13. Reassemble the metal plate and the new LCD assembly replacement, fasten the screws. Then assemble the home button.

14. Replace the metal cover and lock it with the screws.

15. Reassemble the earpiece speaker and cover the metal bracket, then fasten it with the screws.

16. Connect the LCD screen assembly and the rear housing assembly.

17. Replace the metal cover above the connectors.

18. Lock the metal cover with 5 screws.

19. Assemble the LCD screen assembly and the rear housing assembly.

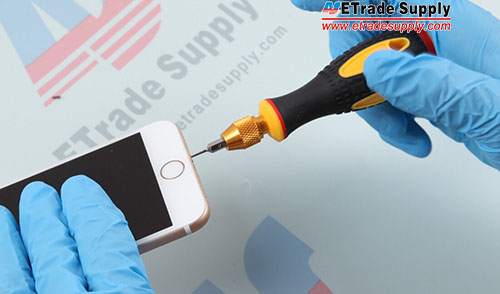

20. Fasten the 2 charging port screws. Congratulations you’ve completely replaced your iPhone 6 screen.
