Differences Between iPhone 6 and iPhone 6 Plus LCD Assembly

Since the iPhone 6 and iPhone 6 Plus were released this past September, we have noticed some obvious and some not so obvious differences between the two, in particular the screens. We all know that the iPhone 6 Plus has a larger screen size, which enables a larger viewing area for playing games, watching videos or even taking pictures. However, for one-handed performance, the iPhone 6 is undoubtedly a better choice, but with a higher resolution the iPhone 6 Plus’ screen is much sharper and brighter, quoted from users. iphone 6 and iphone 6 screen comparison chart

From the chart, we can see that the main differences are the screen sizes and resolutions. Apart from those specs, what other differences do they have? Let’s take an informative tour of the iPhone 6 and iPhone 6 Plus’ LCD Assemblies.

iphone 6, 6 Plus Screen Comparison 1

At first glance, the iPhone 6 LCD Assembly looks the same as the iPhone 6 Plus LCD Assembly, yet, differences still can be seen from the back sides. Obviously, one of the iPhone 6 QR Codes is near the top, while the iPhone 6 Plus has its position reversed.

iphone 6, 6 Plus Screen Comparison 2

Looking at the picture below, we can see that the iPhone 6 shares exact the same Home Button hole with the iPhone 6 Plus. Perhaps their home buttons are compatible with each other. After careful examination and tests, we proved that the iPhone 6 Home Button Assembly with Flex Ribbon can be used on the iPhone 6 Plus. So if your iPhone 6 Home Button unfortunately fail to function, you can buy an iPhone 6 Plus Home Button Assembly with Flex Ribbon replacement instead.

iphone 6, 6 Plus Screen Comparison 6

Exploring deeper, we can see that the iPhone 6 and iPhone 6 Plus LCD and Digitizer Flex Ribbons are different shapes, as well as the frames. So, the iPhone 6 LCD Frame and iPhone 6 Rear Housing are also different from the iPhone 6 Plus’ internal design even aside of the obvious size difference. That’s to say, Apple has spared no extra efforts, the iPhone 6 Plus is not just a “bigger than bigger” iPhone 6.

iphone 6, 6 Plus Screen Comparison 4

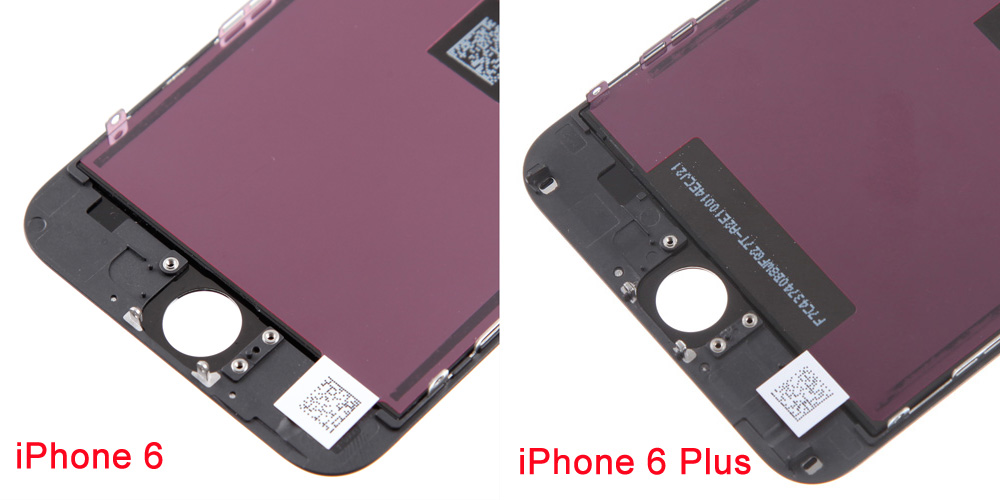

iphone 6, 6 Plus Screen Comparison 5

All in all, the iPhone 6 and iPhone 6 Plus have common Home Buttons even though their screens have apparent differences such as size, resolution, design etc.

If you want to learn more information besides a screen comparison, please read our other article: What are the Differences Between iPhone 6 Plus, iPhone 6 and iPhone 5S
