How to Repair A Cracked Lumia 520 Screen

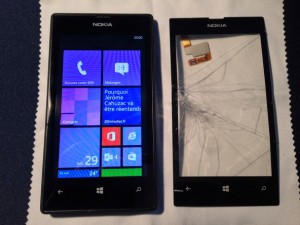

The Nokia’s Lumia has been plagued with cracked screen problems since the release of the Lumia 920. We have seen many complaints from lots of people that the Lumia 520 screens cracked or shattered for various causes. In some reports, people said they dropped the phone on the ground, and the touch screen digitizer was broken, but the LCD display functionality still works fine. In several reports, people told us that they just cracked lumia 520 screen assembly (both touch screen digitizer and LCD screen) completely, as the front glass was huge broken and the LCD displayed nothing.

If you’ve cracked the lumia 520 screen accidentally and you plan to just change it with a brand new one, ETrade Supply is here to help and we can walk you through screen repairs on not only this Nokia Lumia 520 but also other models including Nokia, iPhone, Samsung, HTC, Motorola,etc. In this tutorial article, we will show you how to DIY repair cracked lumia 520 screen and give you links to the parts and tools you need from our online store.

How to Repair the Cracked  Screen on Lumia 520

How to Repair the Cracked Screen on Lumia 520



Tools and Parts You Need to DIY Fix the Cracked Screen on Lumia 520:

* Professional smartphone repair tools you need:

1. T4 Screwdriver.

2. Case open tool.

3. Plastic card.

* 100% OEM brand new Lumia 520 replacement parts you need:

1. Nokia Lumia 520 replacement touch screen digitizer

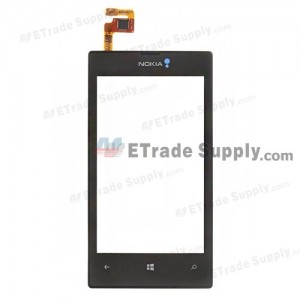

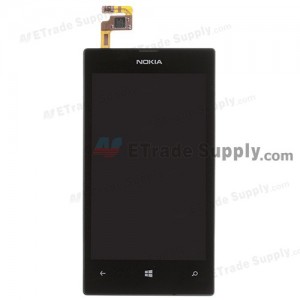

Touch screen digitizer for Lumia 520

Touch screen digitizer for Lumia 520

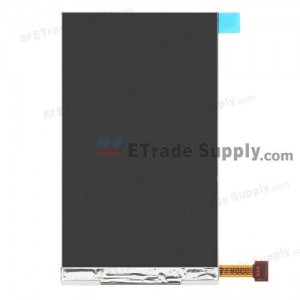

2. Nokia Lumia 520 replacement LCD display

Replacement LCD screen for Lumia 520

Replacement LCD screen for Lumia 520

3. Nokia Lumia 520 replacement screen assembly (including LCD screen and touch screen digitizer)

Replacement Screen for Lumia 520

Replacement Screen for Lumia 520



Detailed Steps on How to Disassemble Lumia 520 and Even replace the screen:

Before the start, you can protect the Lumia 520 screen with a piece of the protective film.

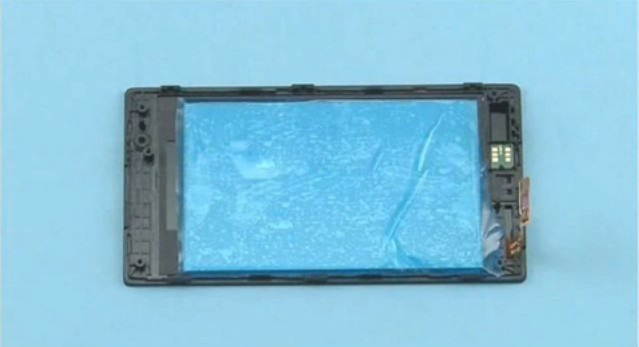

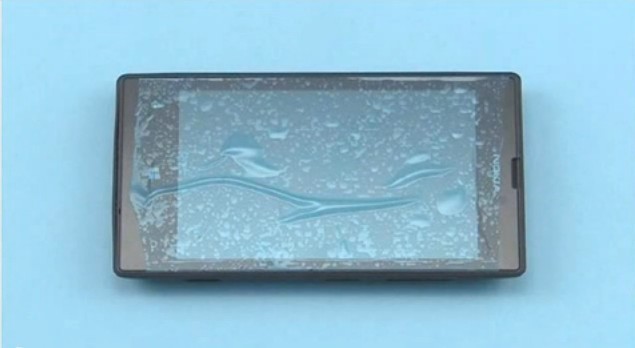

Protect the Lumia 520 screen with the protective film

Protect the Lumia 520 screen with the protective film

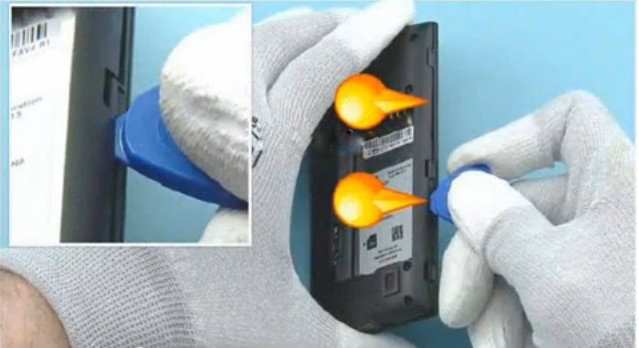

1. Release the back cover by pushing from the top part

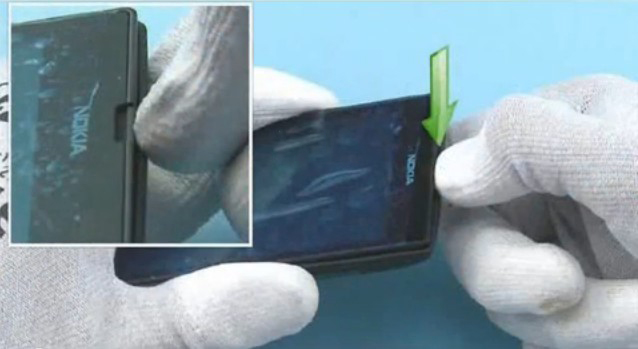

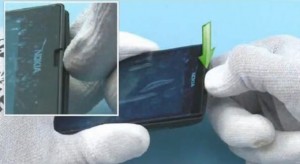

Release the back cover

Release the back cover

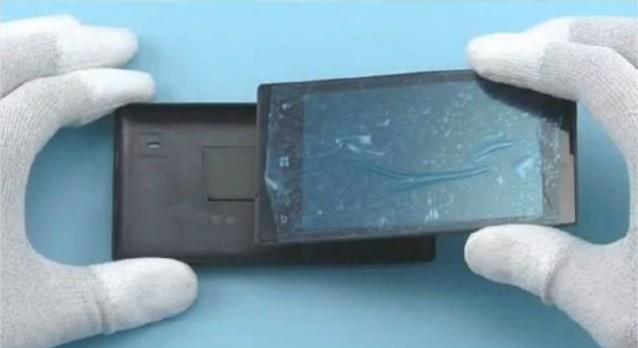

2. Remove the back cover

Remove the back cover

Remove the back cover

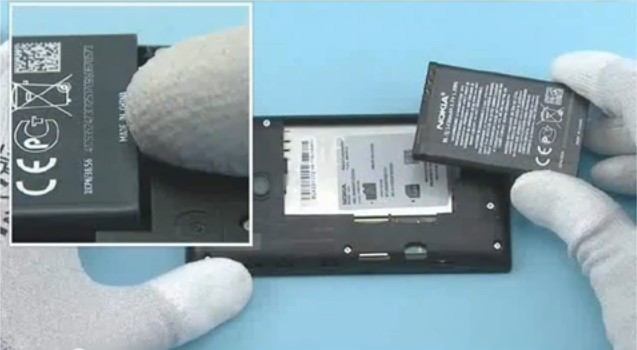

3. Lift up the battery from the bottom and remove it.

Lift up the battery

Lift up the battery

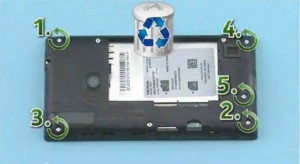

4. Undo the 5 screws in the order shown.

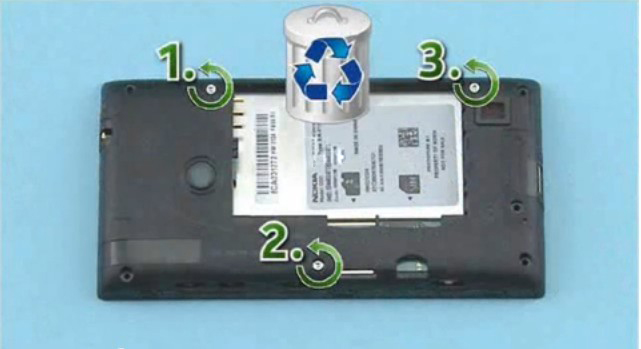

Undo the 5 screws

Undo the 5 screws



5. Undo the 3 screws in the order shown.

Undo the 3 screws

Undo the 3 screws

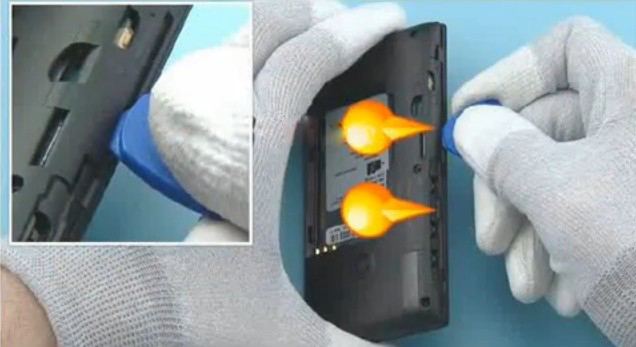

6. Release the 2 clips on the left side, starting from the bottom.

Release the 2 clips

Release the 2 clips



7. Release the 2 clips on the right side, starting from the bottom.

Release the 2 clips on the right side

Release the 2 clips on the right side

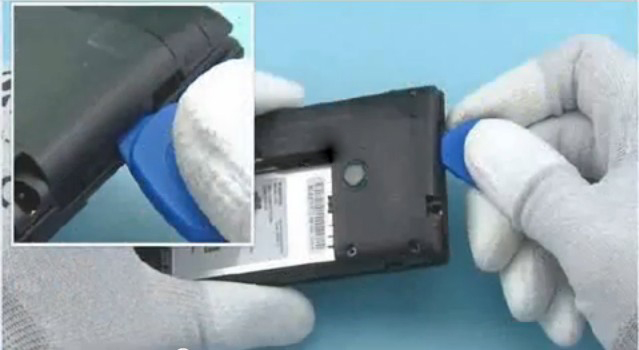

8. Release the top side in the order shown.

Release the top side

Release the top side

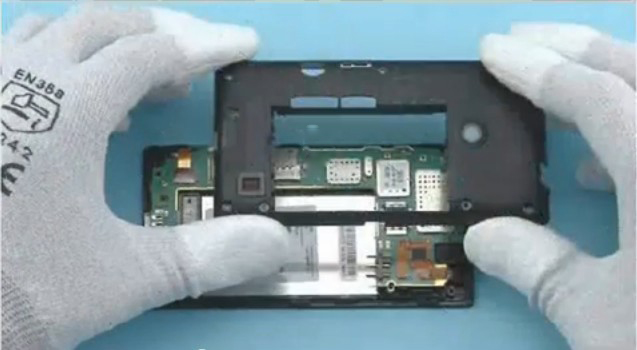

9. Lift up and remove the middle frame in the order shown.

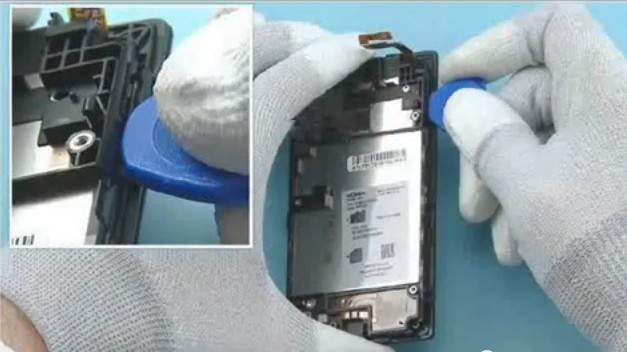

Lift up and remove the middle frame

Lift up and remove the middle frame

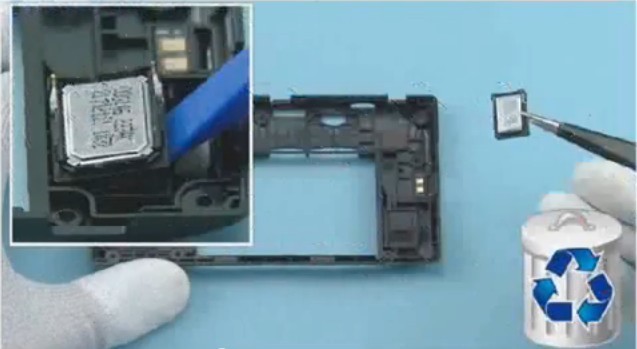

10. Lift up the speaker and then remove it.

Remove the speaker

Remove the speaker

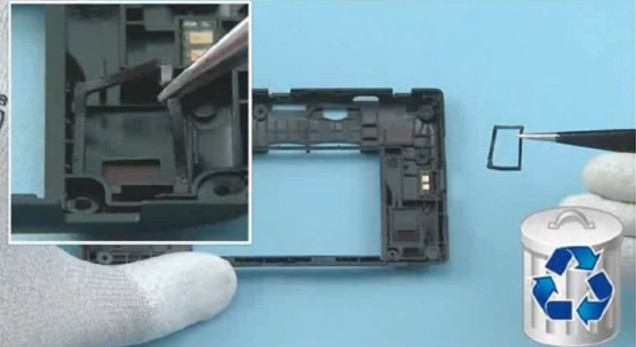

11. Remove the gasket of the speaker.

Remove the gasket of the speaker

Remove the gasket of the speaker



12. Disconnect the connector of the display.

Disconnect the connector

Disconnect the connector

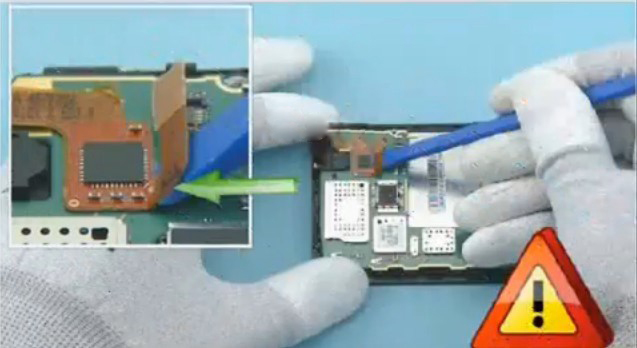

13. Disconnect the connector of the touch screen.

Disconnect the connector of the touch screen

Disconnect the connector of the touch screen

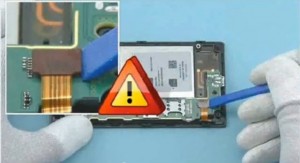

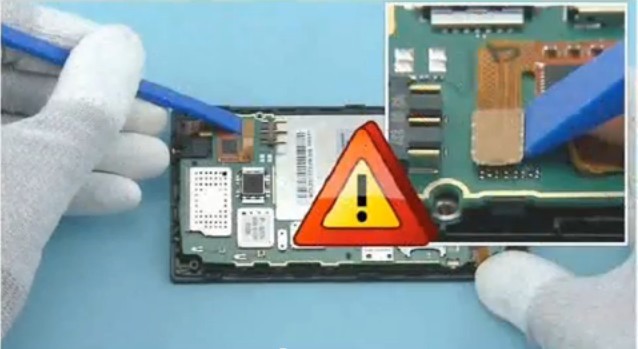

14. Release the touch screen connector from the motherboard.

Release the touch screen connector

Release the touch screen connector

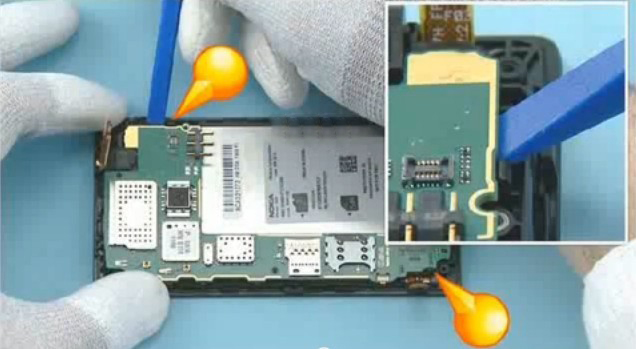

15. Release the two clips which holding the motherboard.

Release the two clips

Release the two clips

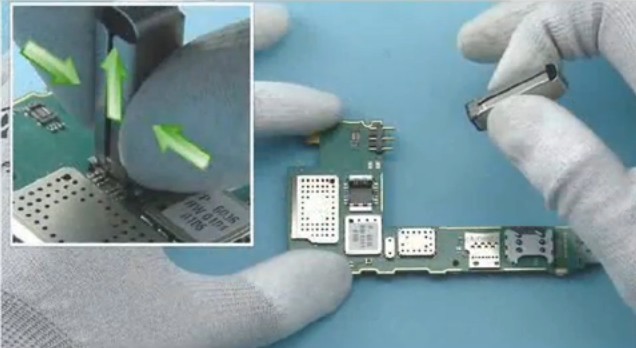

16. Lift up and remove the motherboard.

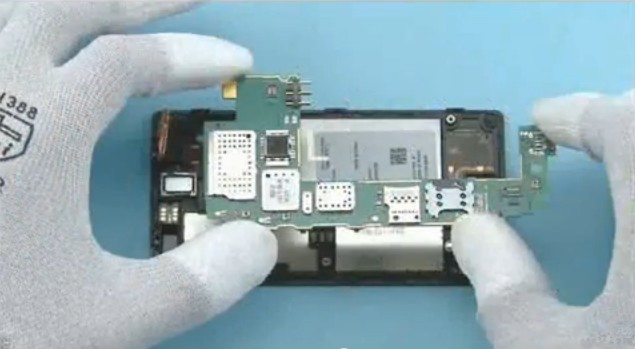

Remove the motherboard

Remove the motherboard



17. Remove the camera.

Remove the camera

Remove the camera

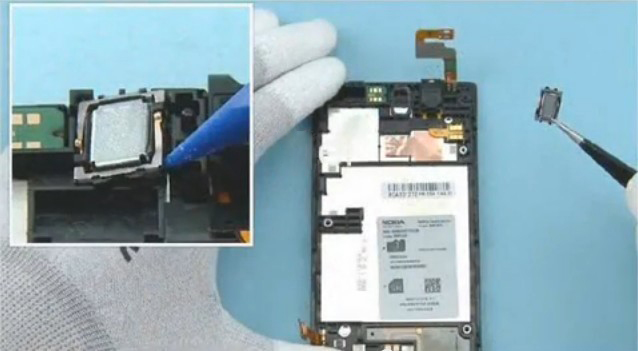

18. Release the ear speaker and remove it.

Release the ear speaker and remove it

Release the ear speaker and remove it

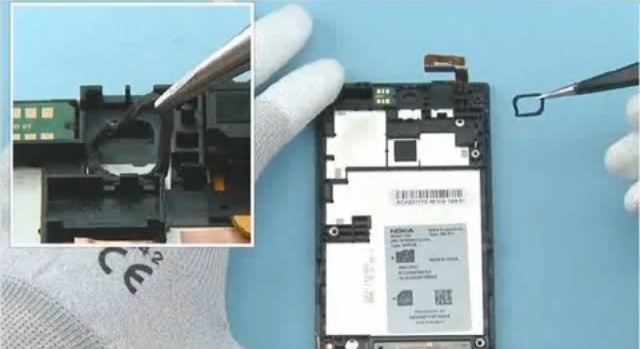

19. Remove the gasket of the ear speaker.

Remove the gasket of the ear speaker

Remove the gasket of the ear speaker

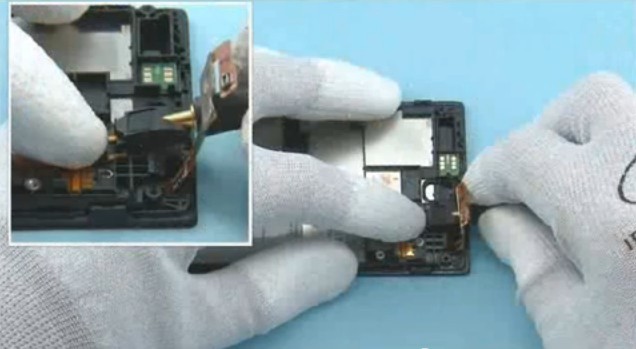

20. Lift up and release the earphone earphone jack.

20.1Lift up and release the earphone jack

20.1Lift up and release the earphone jack

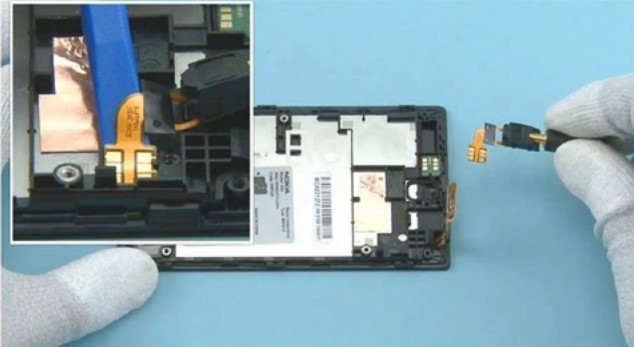

20.2Lift up and release the earphone jack

20.2Lift up and release the earphone jack

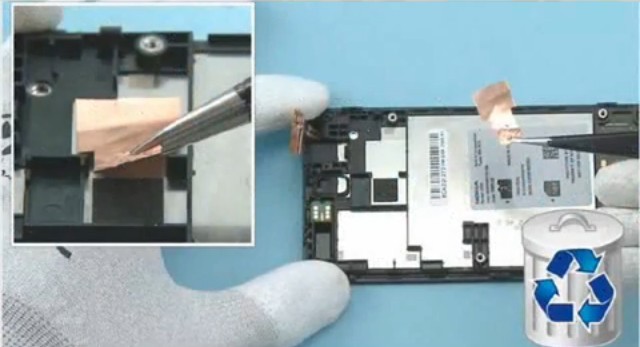

21. Remove  the heat spreader

Remove  the heat spreader

Remove the heat spreader



22. Release the display  from the shown place.

Release the display

Release the display

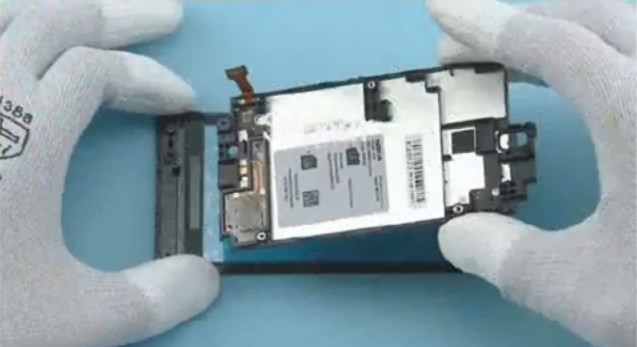

23. Separate the screen assembly which including the touch screen digitizer and LCD screen from the screen support.

Separate the screen assembly

Separate the screen assembly

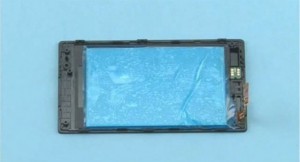

24. Protect the other side of the screen with the protective film.

Protect the other side of the screen

Protect the other side of the screen

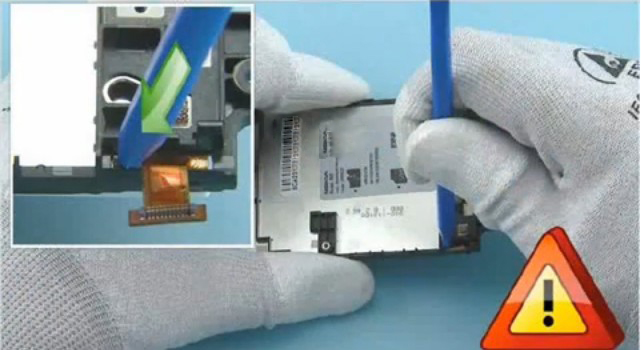

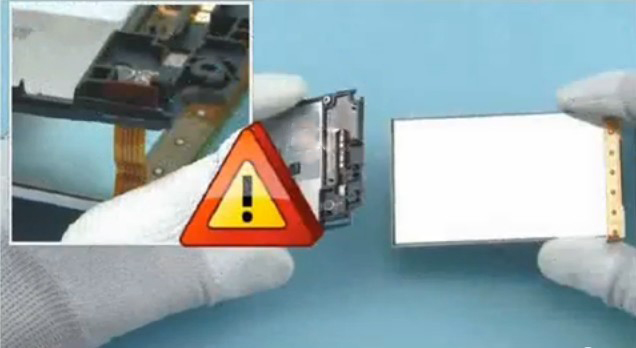

25. Release and separate the LCD display from the screen assembly.

25.1Release and separate the LCD display

25.1Release and separate the LCD display

25.2Release and separate the LCD display

25.2Release and separate the LCD display

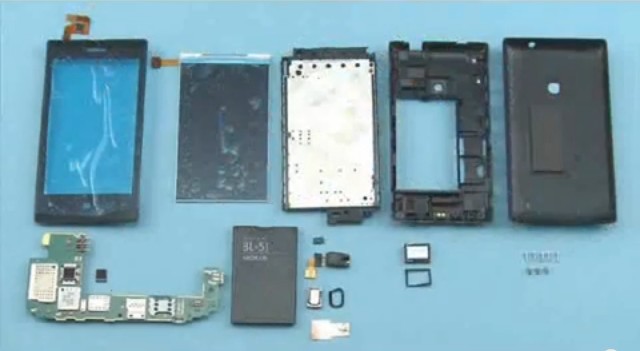

Finally, disassembly procedure is complete, you can replace the digitizer or screen assembly, and then reassemble the device in reverse order.
