Easy to Repair the Cracked Samsung Galaxy S4 Screen Assembly

The process of repairing the broken Samsung Galaxy S4 screen assembly is similar to the process of disassembling the Galaxy S4, which is much easier than replacing the Galaxy S4 screen glass only. Since the Samsung Galaxy S4 have many different colors, you could change your Sapphire front glass into white or pink one to make it different.

[caption id="attachment_4385" align="aligncenter" width="504"]Easy to Repair the Cracked Samsung Galaxy S4 Screen Assembly How to Repair the Cracked Samsung Galaxy S4 Screen Assembly[/caption]

Stuff needed:

Tweezers

Small Phillips Screwdriver

Triangle Case Opening Tool

New Replacement Galaxy S4 Screen Assembly with Frame

Steps

1. Power off the Galaxy S4, then remove the back cover and battery.

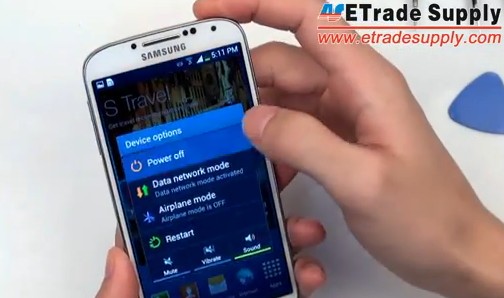

turn off the galaxy s4

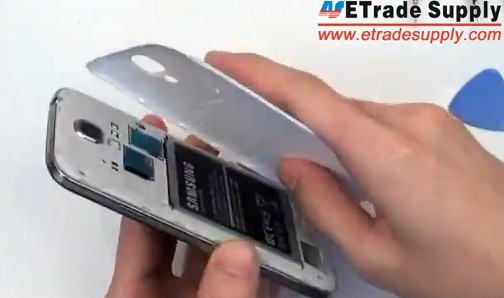

remove the galaxy s4 battery cover

remove the galaxy s4 battery2. Use Small Phillips Screwdriver to release the 9 screws on the rear housing.

to release the 9 screws on the galaxy s4 rear housing.3. Take out the loud speaker assembly.

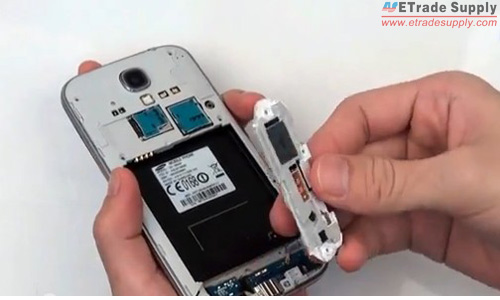

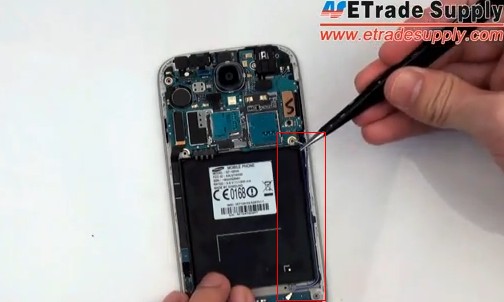

Take out the galaxy s4 loud speaker assembly4. Put the case opening tool into the screen S4 display assembly and the middle frame to release the clips around the edge. Then use Tweezers to open the clip inside the battery compartment. Now you can remove the S4 middle frame.

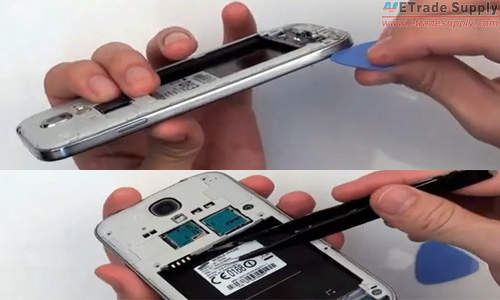

release the clips around the edge and inside the galaxy s4 battery compartment

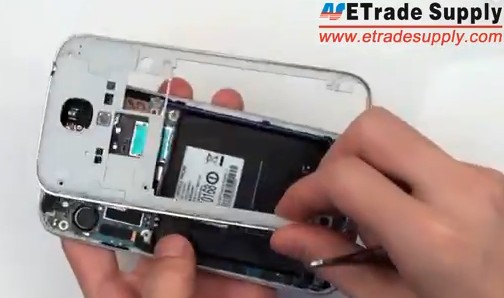

remove the galaxy s4 rear housing5. Use case opening tool to disconnect the 9 connectors, and pick out the antenna.

disconnect the 9 connectors, and pick out the antenna

take out the galaxy s4 antenna6. Insert the case opening tool to loosen the adhesive on the USB board carefully. Pick out the USB port metal shield with the help of Tweezers.

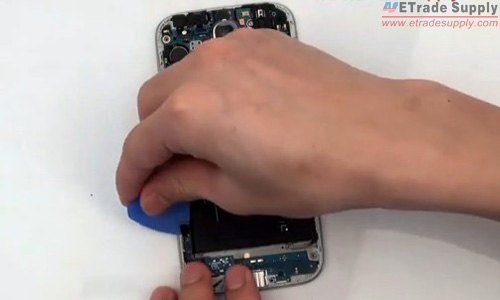

Insert the case opening tool to loosen the adhesive on the USB board carefully

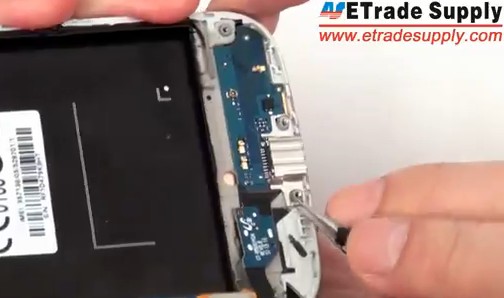

Pick out the galaxy s4 USB port metal shield



7. Use case opening tool to gently remove the USB cable which is adhered to the front housing by strong double-side adhesive. Then take out the USB port board.

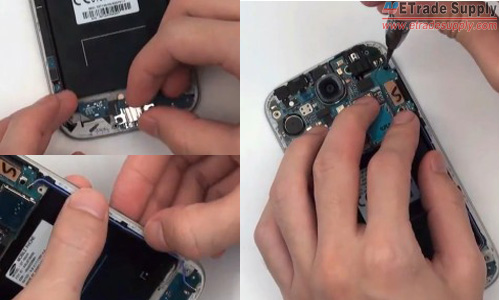

remove the galaxy s4 USB cable

take out the galaxy s4 USB port boarda

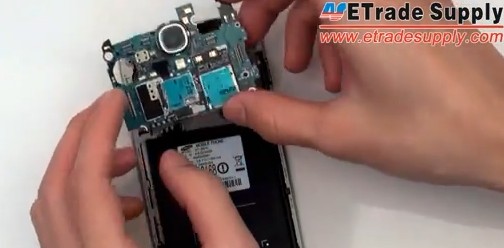

8. Undo 2 screws on the motherboard to release the board and remove it.

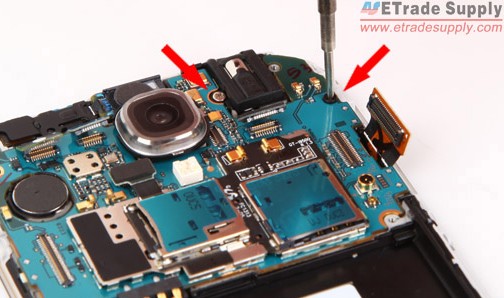

Undo 2 screws on the galaxy s4 motherboard

remove the galaxy s4 motherboard

9. Use Tweezers to pick out the head phone jack, front facing camera and its metal shield, proximity sensor flex cable, ear speaker and vibrating motor. Now only left the broken S4 screen assembly with frame.

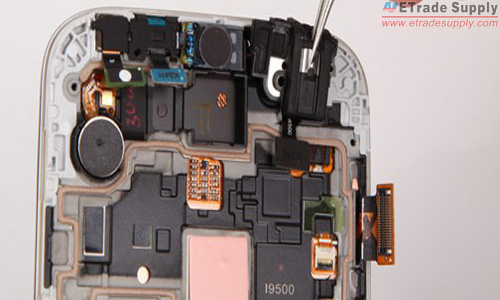

pick out the galaxy s4 head phone jack

remove the galaxy s4 front facing camera and its metal shield

remove the galaxy s4 proximity sensor flex cable, ear phone and vibrating motor

10. Get a new replacement screen display with frame for SGS4. Install the vibrating motor, earpiece, proximity sensor cable back on the S4 display assembly and front housing.

new replacement screen assembly for Galaxy S4



Install the galaxy s4 vibrating motor, ear phone and proximity sensor cable back

11. Assemble the front facing camera, the metal shield head phone jack.

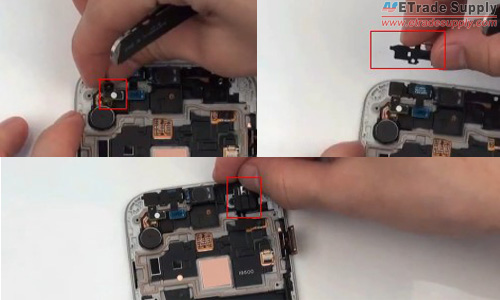

Assemble the galaxy s4 front facing camera, the metal shield head phone jack.

12. Install the motherboard to the S4 LCD assembly with frame, and connect all the connectors.

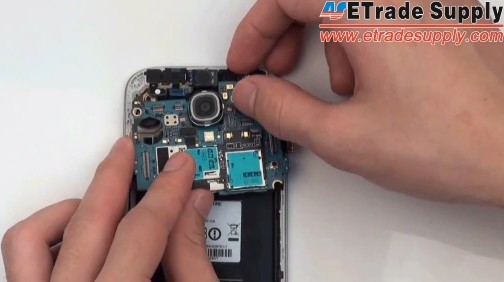

install the galaxy s4 motherboard

13. Reinstall the charging port cable, the metal shield, the antenna. Then use 2 screws to fasten the motherboard.

install the galaxy s4 charging port cable

install the galaxy s4 metal shield, the antenna

14. Install the rear housing and the loud speaker assembly. And fasten them with 9 screws.

install the galaxy s4 rear housing

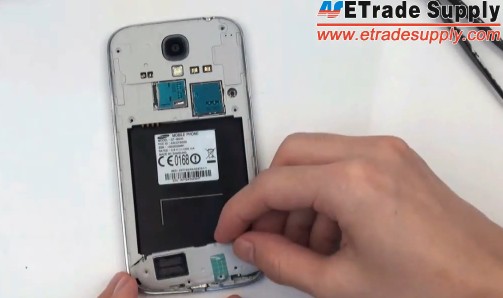

install the galaxy s4 loud speaker

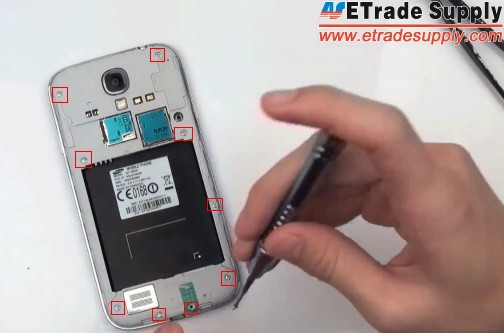

fasten the galaxy s4 rear housing

15. Put on the S4 battery and battery cover, and turn on the device to make sure it works as normal.

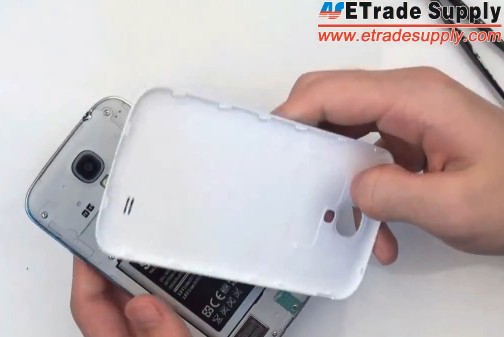

install the galaxy s4 battery and battery door

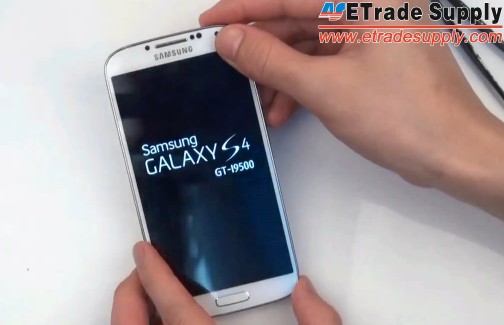

turn on the galaxy s4 to make sure it works as normal.

You can watch our YouTube videos of Galaxy S4 disassembly and S4 assembly for detailed information. Welcome to subscribe our YouTube channel for more updates of cellphone repair guides.
