Sony Xperia XZ Premium Teardown/Disassembly

Released on June 2017, this Xperia XZ Premium is the newest flagship smartphone of Sony. It comes to us with a 4K 5.50-inch touchscreen display, IP68 certified, Snapdragon 835 chipset, 19M rear camera. Here we’d like to show you the whole teardown process of this Sony Xperia XZ Premium, showing the ropes on how to replace its screen assembly, battery, charging port replacements etc.

Tools needed:

Heat gun

Philips screwdriver

Tweezers

Spudger

Plastic thin card

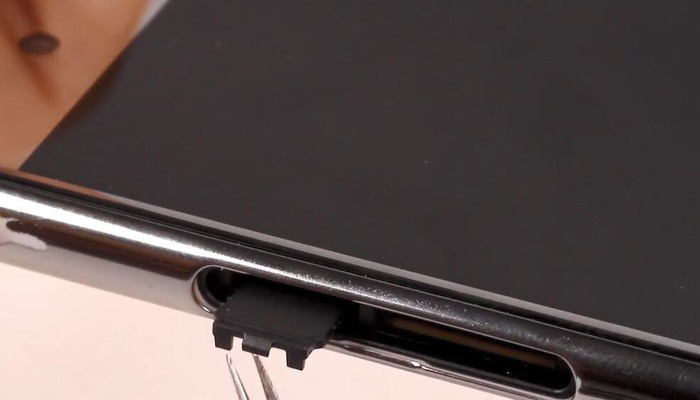

Step 1 Power off the Phone and take out the SIM Card Tray

It is necessary to power off the phone then take out the SIM card tray before starting this disassemble work.

Sony Xperia XZ Premium TeardownDisassembly001 Sony Xperia XZ Premium TeardownDisassembly002

Step 2 Remove Back Housing

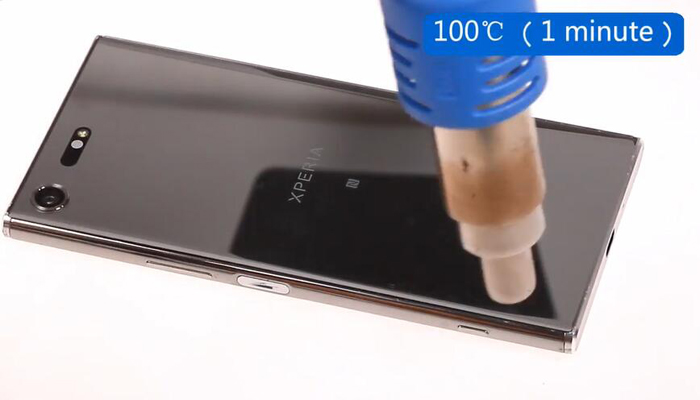

Heating the back housing with a heat gun will make it easier to remove the back housing.

Sony Xperia XZ Premium TeardownDisassembly003

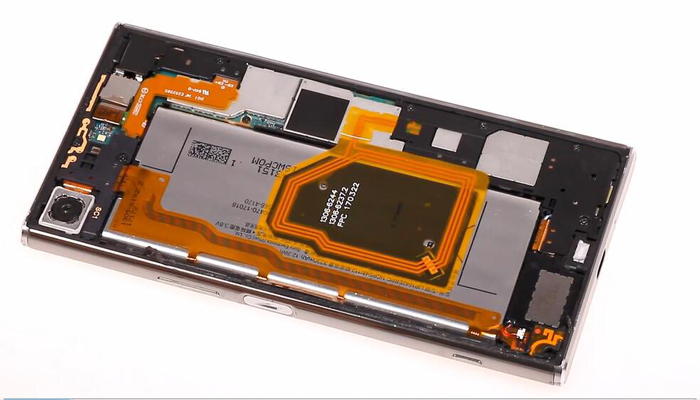

Pry the gap between back housing and frame with a plastic thin card then slide around the phone edge. (Heat it again if it’s hard to remove)

Sony Xperia XZ Premium TeardownDisassembly004

Step 3 Remove Motherboard

Undo 9 screws as shown in the picture below with Philips screwdriver.

Sony Xperia XZ Premium TeardownDisassembly005

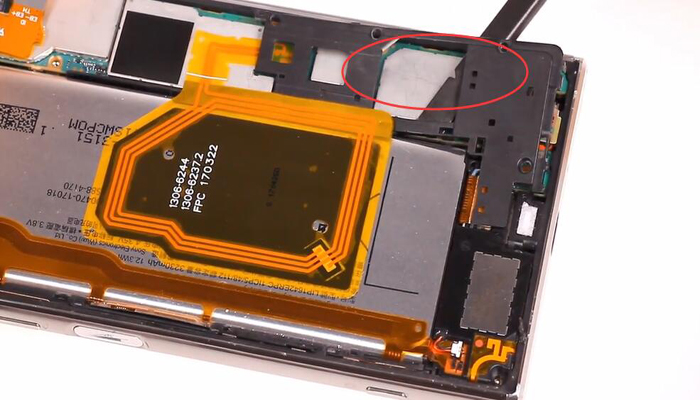

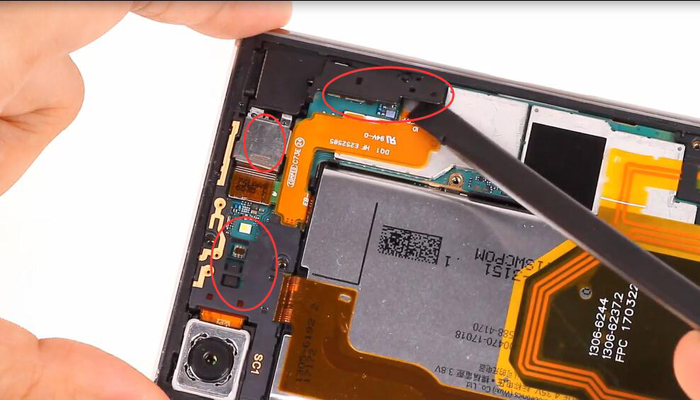

Remove 4 covers on the motherboard with a spudger.

Sony Xperia XZ Premium TeardownDisassembly006 Sony Xperia XZ Premium TeardownDisassembly007

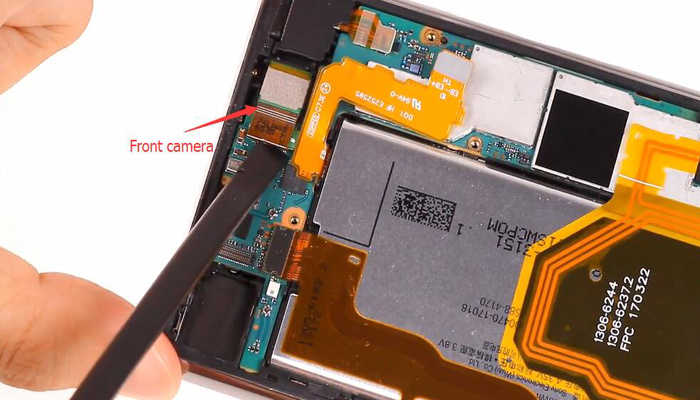

Remove 2 cameras on the motherboard.

Sony Xperia XZ Premium TeardownDisassembly008 Sony Xperia XZ Premium TeardownDisassembly009

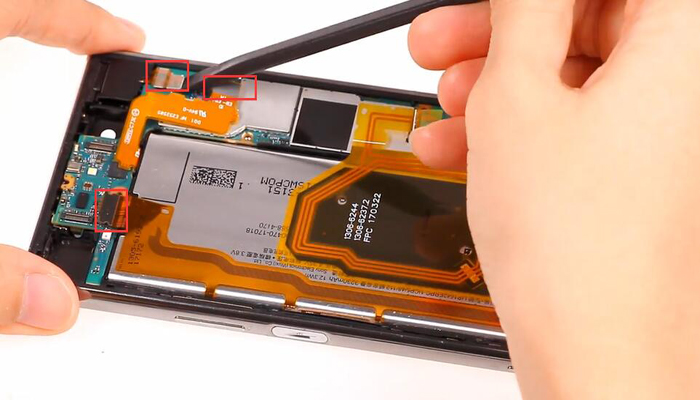

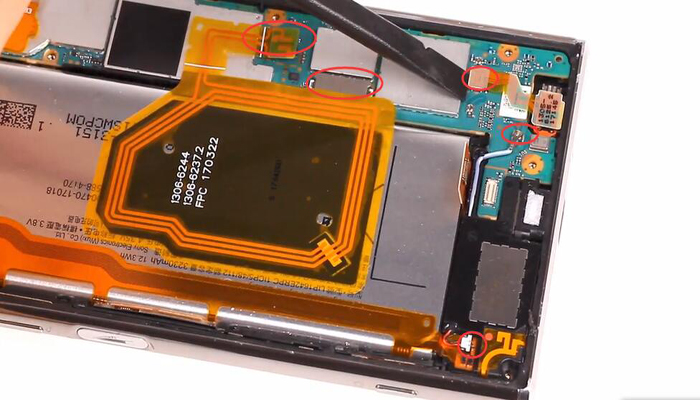

Release connectors on the motherboard.

Sony Xperia XZ Premium TeardownDisassembly0010 Sony Xperia XZ Premium TeardownDisassembly011

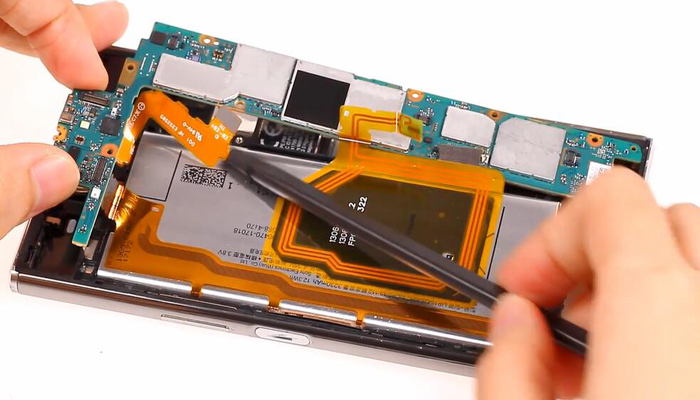

Pry out the motherboard with a spudger.

Sony Xperia XZ Premium TeardownDisassembly012

Step 4 Remove Battery

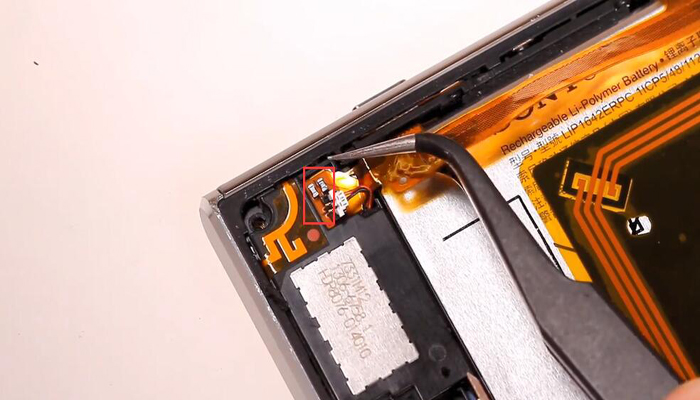

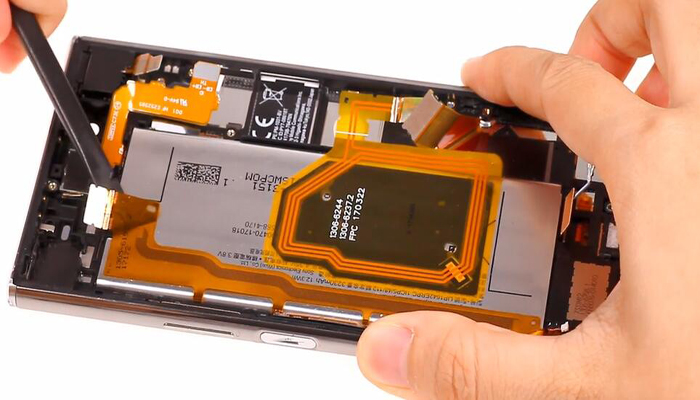

Remove the long flex cable on battery carefully with a spudger.

Sony Xperia XZ Premium TeardownDisassembly013 Sony Xperia XZ Premium TeardownDisassembly014

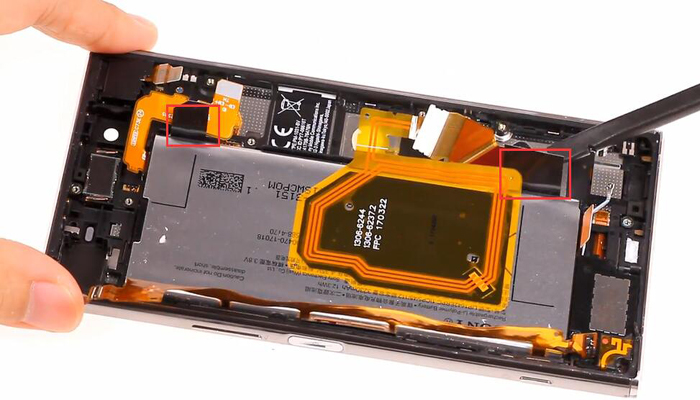

Tear off two battery tapes and pry out the battery with the spudger.

Sony Xperia XZ Premium TeardownDisassembly015

Step 5 Remove Other Parts

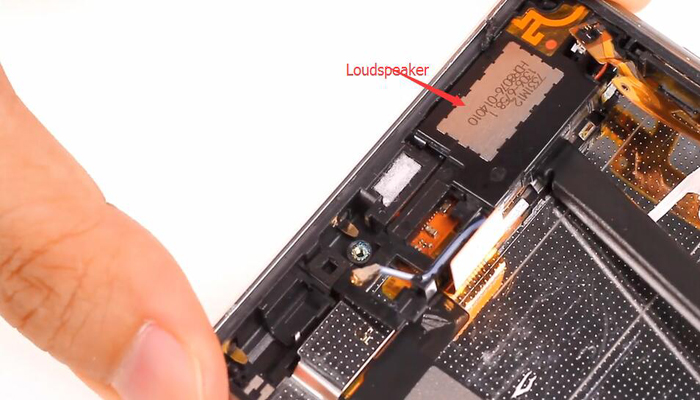

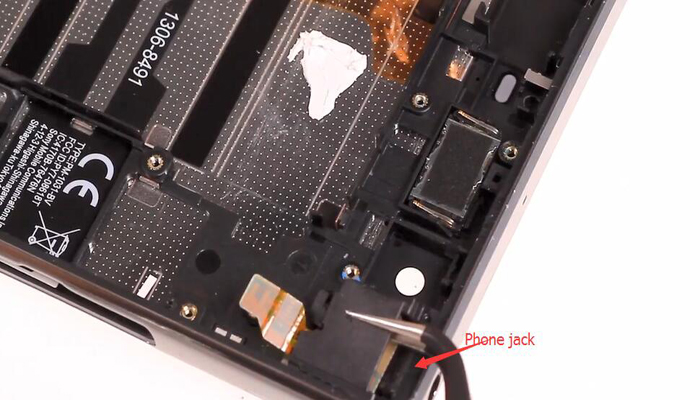

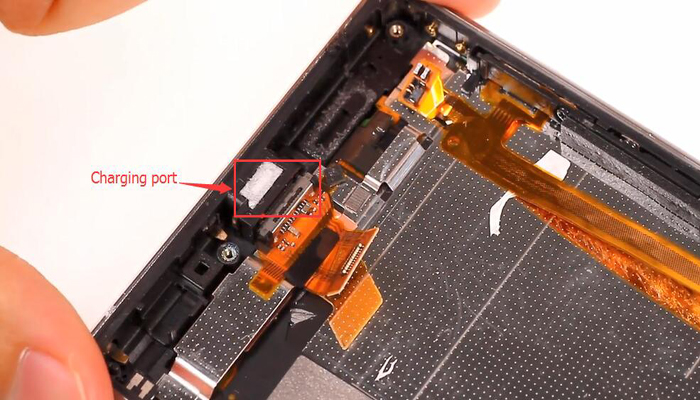

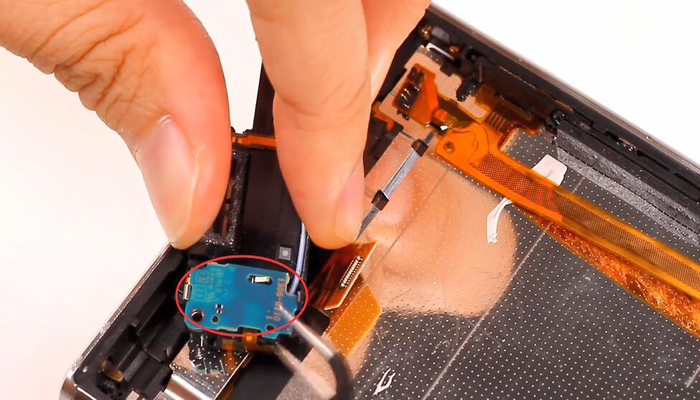

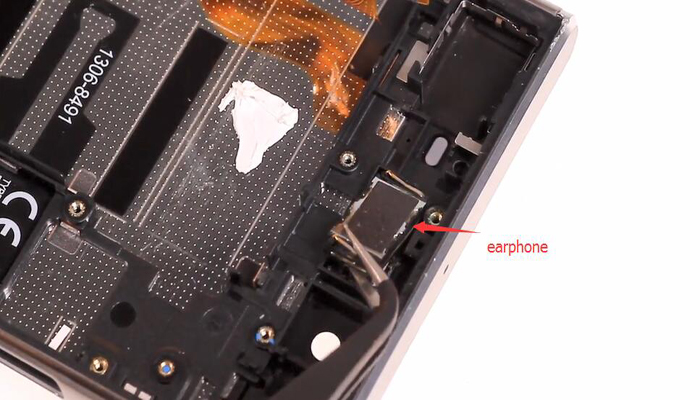

Remove other parts on the frame such as phone jack, charging port, ear speaker and loudspeaker, etc.

Sony Xperia XZ Premium TeardownDisassembly016 Sony Xperia XZ Premium TeardownDisassembly017 Sony Xperia XZ Premium TeardownDisassembly018 Sony Xperia XZ Premium TeardownDisassembly019 Sony Xperia XZ Premium TeardownDisassembly020

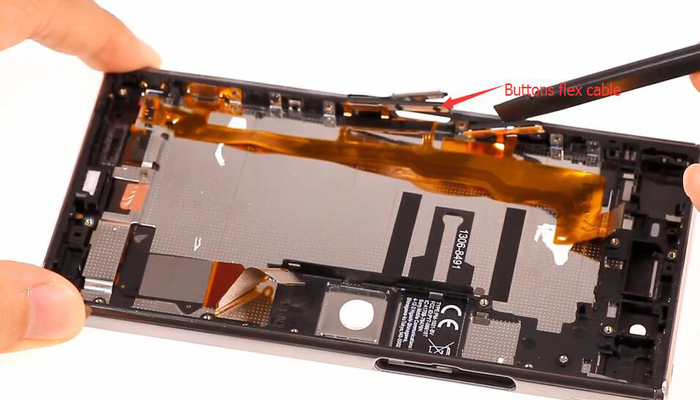

Step 6 Remove Side Button Flex Cable

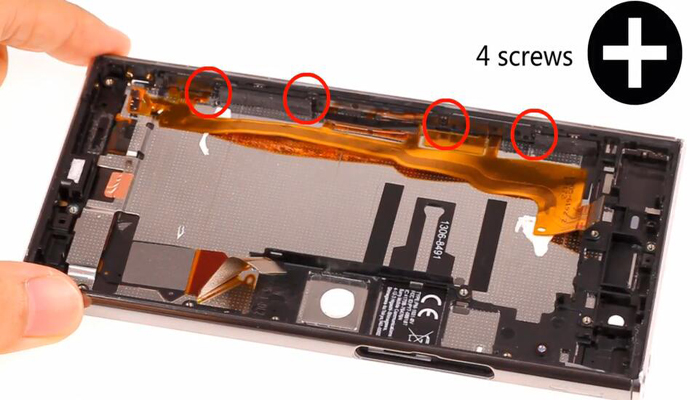

Undo 4 screws as the pictures shown below with a philips screwdriver.

Sony Xperia XZ Premium TeardownDisassembly021 Sony Xperia XZ Premium TeardownDisassembly022

Step 7 Separate Screen from Frame

Heat the top of screen with a heat gun at 100 ℃ for 30 seconds

Sony Xperia XZ Premium TeardownDisassembly023

Pry the screen as the picture shown below to get a gap between screen and frame with a spudger.

Sony Xperia XZ Premium TeardownDisassembly024

Cut the adhesive with a plastic thin card and slide around the screen.

Sony Xperia XZ Premium TeardownDisassembly025

Tear off the tape on the screen connector.

Sony Xperia XZ Premium TeardownDisassembly026

Then the screen can be separated from the frame but be careful not to damage the flex cable.

Sony Xperia XZ Premium TeardownDisassembly027

Now the Sony Xperia XZ Premium teardown is completed and hope it can be helpful for you.

Sony Xperia XZ Premium TeardownDisassembly028

If you have any suggestions please leave a comment below and share with us.
