How to Replace the iPhone XS Taptic Engine & Loudspeaker?

Tools Used:

 Screwdriver kit – Phillips, Pentalobe, Y-type

 Suction cup

 Plastic plectrum

 Ultra-thin plastic sheet

 Tweezers

 Spudger

 Hot air gun



1. Tear down iPhone XS and take off the display screen

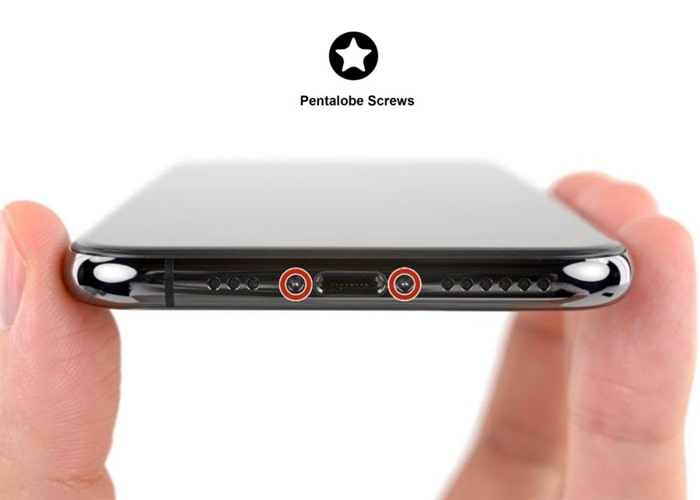

 1.1 Power off the phone, take out the iPhone XS SIM card tray and loosen the two pentalobe screws on the bottom



loosen the two pentalobe screws-etradesupply



 1.2 Use hot air gun blowing the edge on the display, in 80℃ for about 2 minutes



hot air gun blowing the frame edge-etradesupply

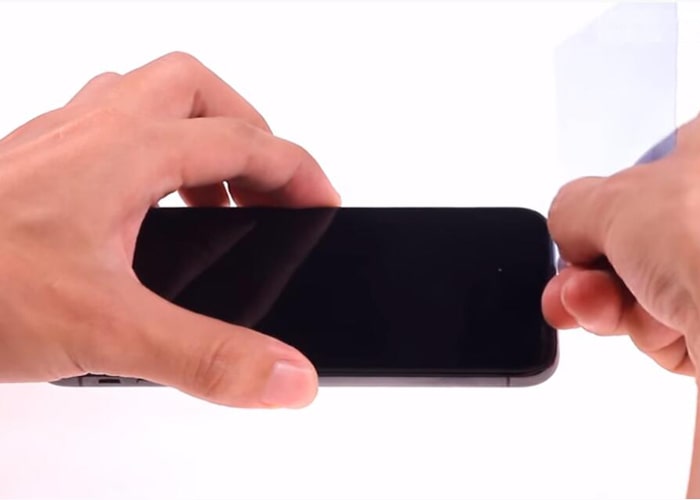

 1.3 Use the suction cup to make a gap between the display and the frame, then insert the ultra-thin plastic sheet to slice around the gap to separate the display screen from the phone



Separate the iPhone XS display screen-etradesupply



 1.4 Pry and flip over the display screen carefully, loosen the four Y-type screws and a Phillips screw, remove the metal bracket with tweezers

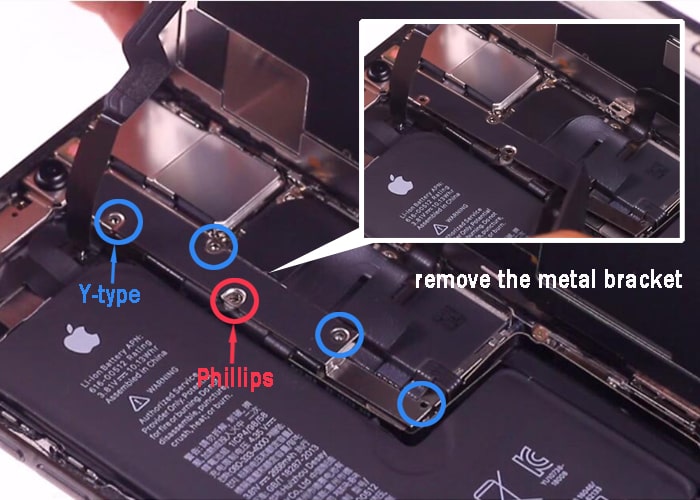

loosen the five screws and remove the metal bracket-etradesupply

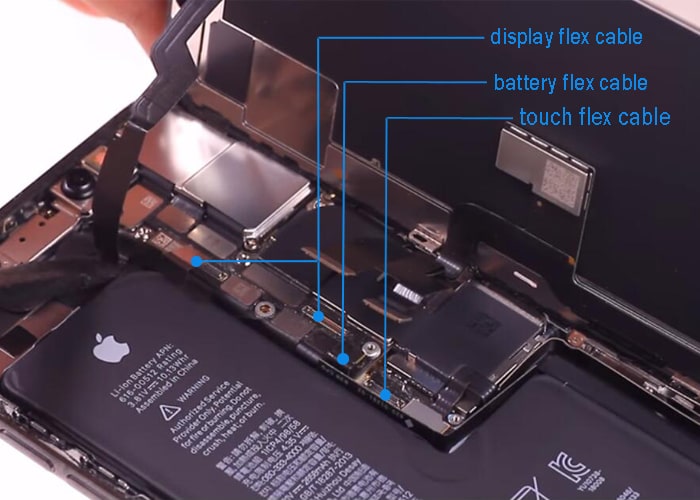

 1.5 Disconnect the battery flex cable first, then the touch flex cable and the display flex cable. Remove the display screen away after it is entirely disconnected



Disconnect the display flex cables-etradesupply



2. Replace the iPhone XS taptic engine and loudspeaker

 2.1 Loosen the seven Phillips screws and the Y-type screw, then remove the small metal brackets which are for fixing the taptic engine modules carefully with tweezers

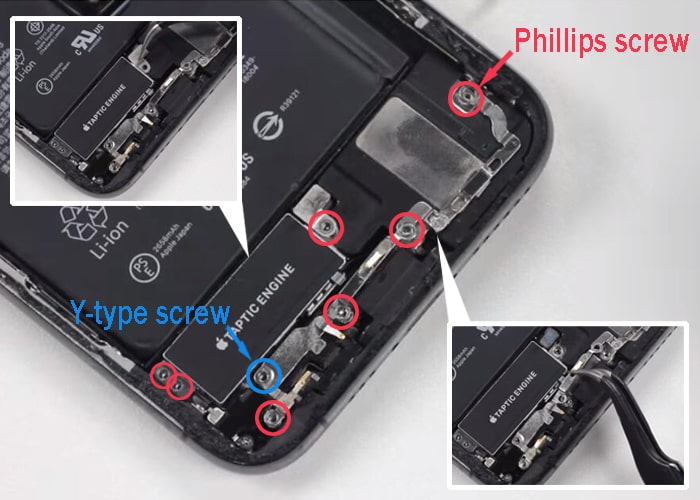

loosen the seven screws and remove the taptic engine-etradesupply



 2.2 Disconnect the iPhone XS loudspeaker flex cable and then use spudger and tweezers to pry up and remove the loudspeaker. The taptic engine is connected under the loudspeaker, just be careful and don’t bring it up

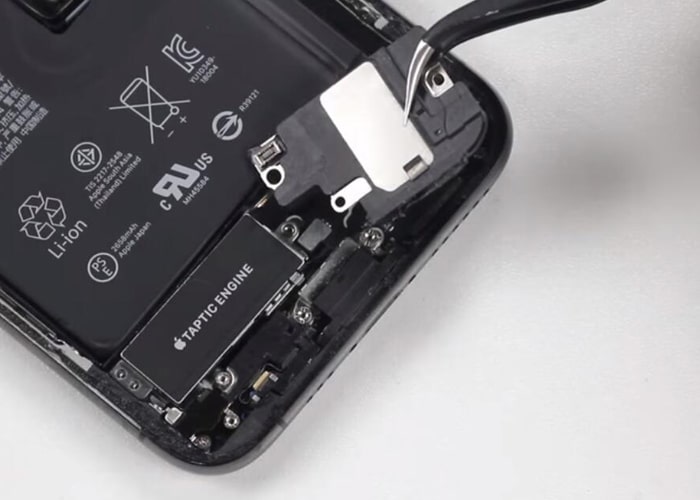

remove the loudspeaker-etradesupply

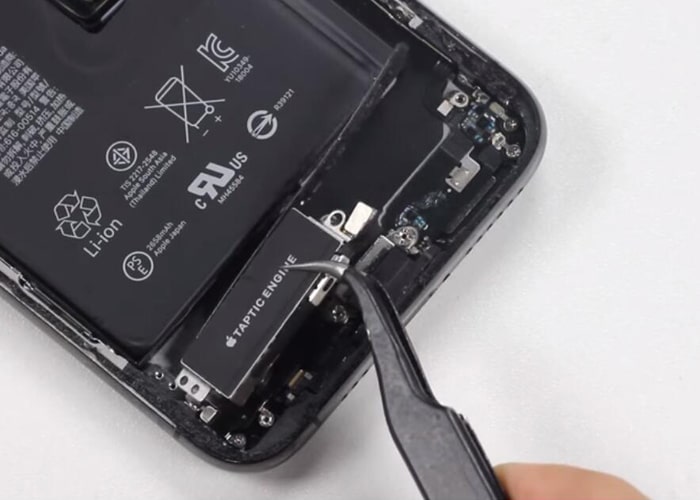

 2.3 Take down the taptic engine after the loudspeaker is removed



take down the taptic engine-etradesupply



 2.4 Place the new replacement iPhone XS taptic engine in the phone and connect the flex cable

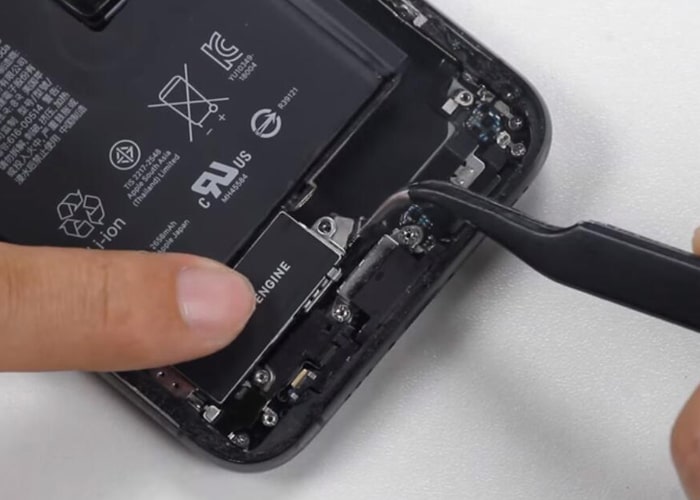

install the new taptic engine-etradesupply



 2.5 Install the new loudspeaker into the phone and connect the flex cable

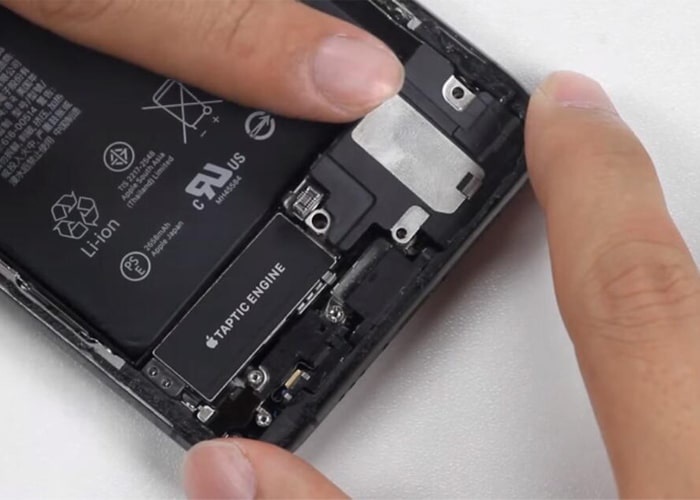

install the new loudspeaker-etradesupply



 2.6 Place the small metal brackets back and fix them with the eight screws

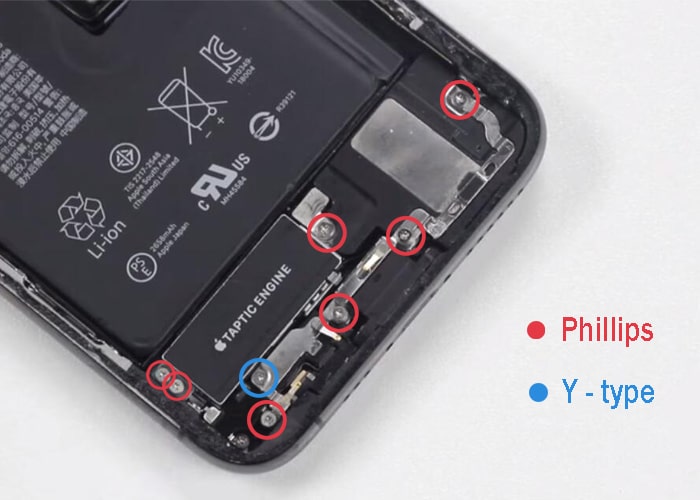

place the metal brackets back and fixing with the eight screws-etradesupply



3. Reinstall the iPhone XS display screen

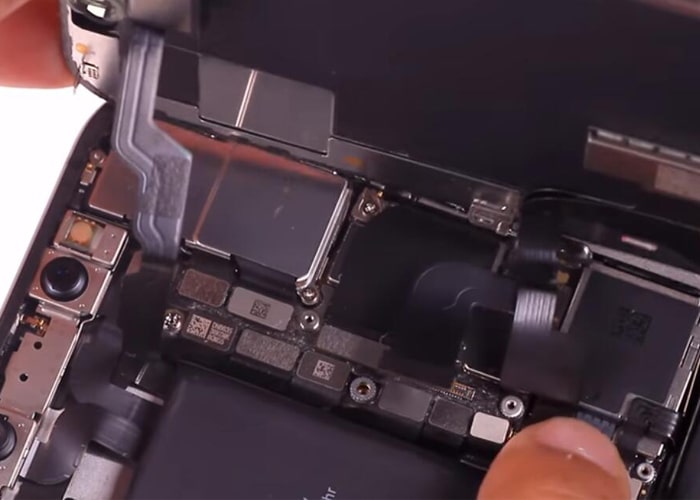

 3.1 Connect the flex cables back, includes the display flex cable, the touch flex cable and the battery flex cable for the last



connect the flex cables back-etradesupply

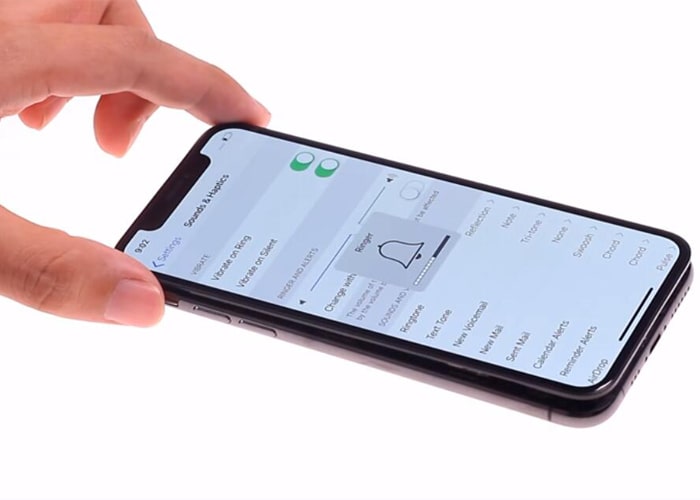

 3.2 Turn on the phone and test the function of the new replaced elements. Test the screen 3D touch to check the vibration response. Go to Settings >> Sounds & Haptics. Play ringtone and adjust the volume to see if the loudspeaker is normal



turn on the phone and test the new replaced elements-etradesupply



 3.3 Disconnect the flex cables as the orders in Step 1.5 and remove the display screen, clear out the frame adhesive glue

 3.4 Attach a new iPhone XS frame adhesive back to the phone

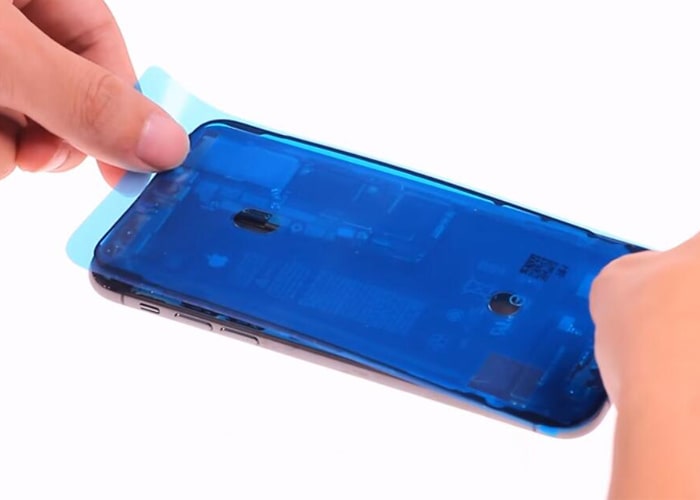

attach a new frame adhesive on the phone-etradesupply



 3.5 Connect and reinstall the display screen back, place the metal cover for fixing it with the five screws.

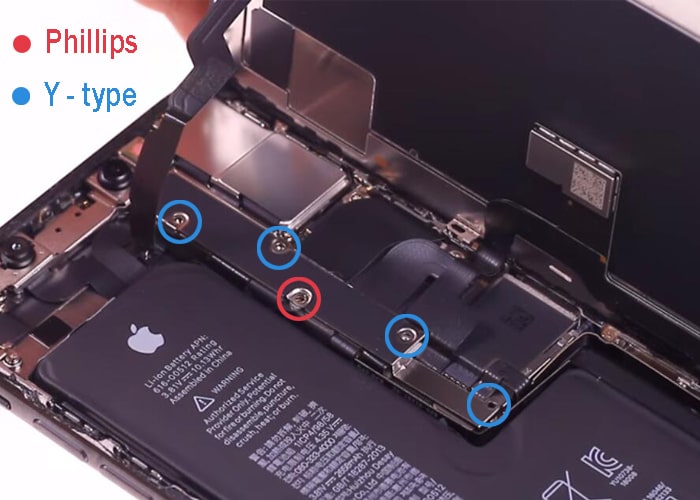

connect the flex cables back and fixing the metal braket with five screws -etradesupply



3.6 Tightly install the display, insert the SIM card tray back and tighten the two pentalobe screws on the bottom



Noted: Your iPhone XS would be not 100% waterproof after repaired. Be patient and careful if you are the first time to repair your iPhone. Any questions will be answered as long as you leave your comments below, or you can email us if you have any questions about the iPhone XS replacement parts in the process above.
