iPhone 7 Full Teardown for Screen, Battery And Charging Port

After months of speculation and impatient waiting, Apple has finally announced the iPhone 7 and iPhone 7 Plus. The excellent camera, A10 Fusion chip, wireless headphone, the new iPhone 7 impressed all a lot, here we're going to disassemble iPhone 7 to offer some repair tips when fix LCD screen, battery or charging port flex cable etc.

Tools Needed:

Step 1. Shut down the device then take out the SIM card tray.



1.power off and take out sim card tray

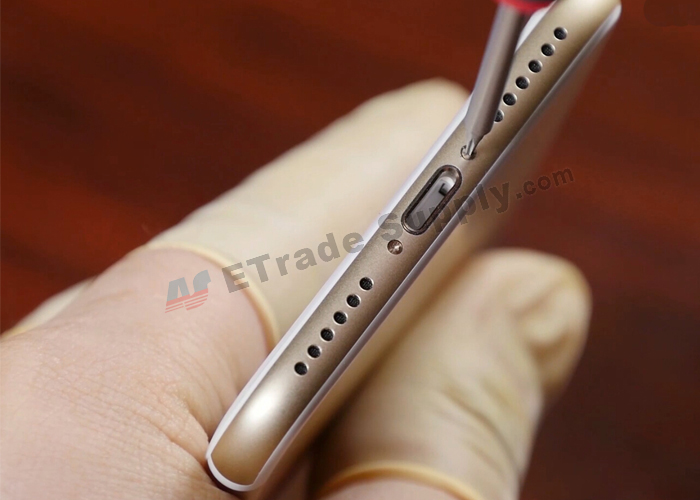

Step 2. Undo 2 Pentalobe screws on the bottom of the device. (Same screwdrivers as 6S/6S+/6/6+, however, the screws are a little bit longer)



2.undo 2 screws



3. Heat up the edges of the device, separate the screen assembly and the rear housing assembly with the help of a double-sided suction cup. (the flex cables of the screen are on the right side of the phone, take your time here in case of breaking any of them)

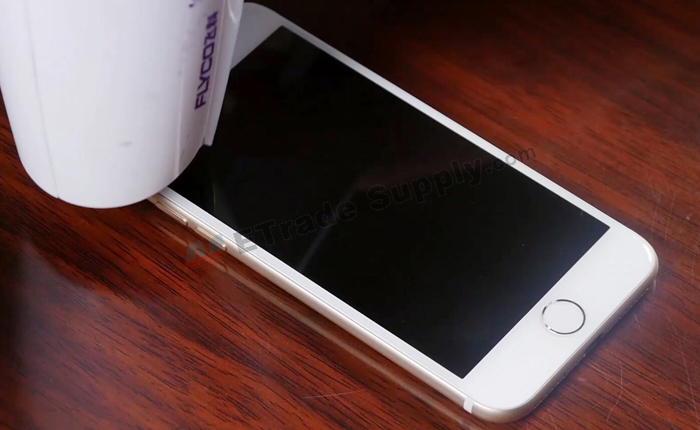

3.heat up screen

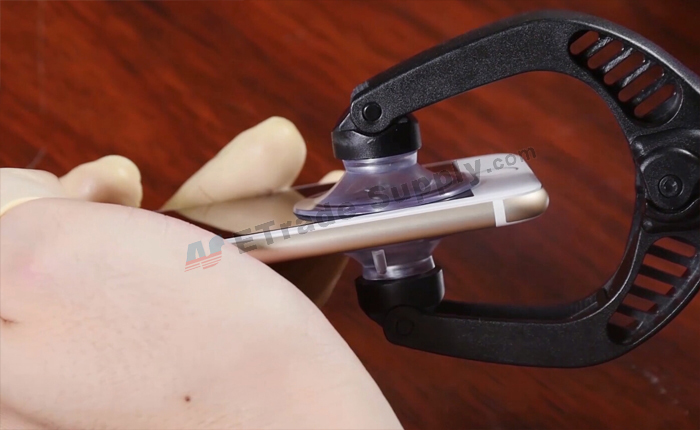

4.lift up screen with suction cup

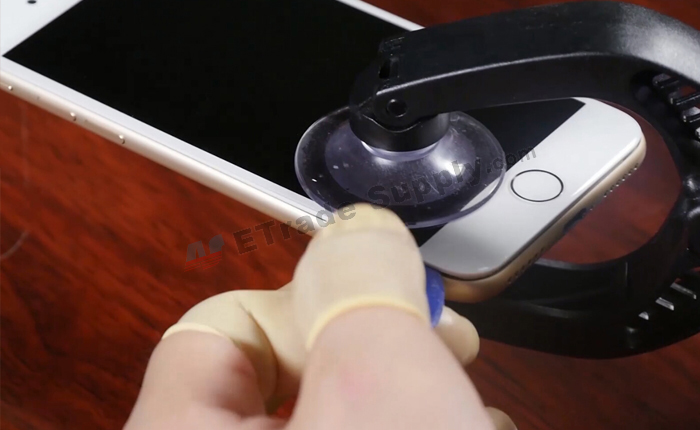

5.open a gap with guitar pick

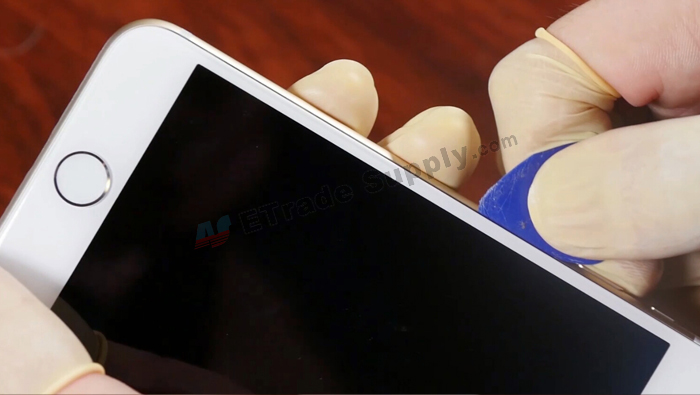

6.cut screen adhesives

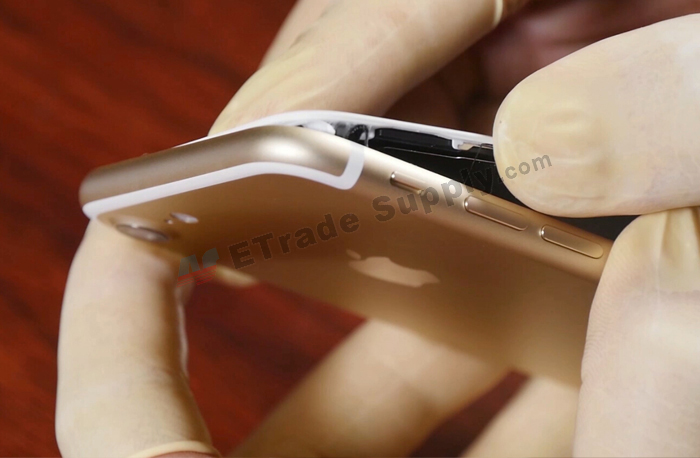

7.lift up screen



8.iPhone 7 screen



Step 4. Undo 4 triangle screws (the same triangle head screwdriver used on Apple watch) holding the metal shield covering the battery, LCD display and digitizer connectors.

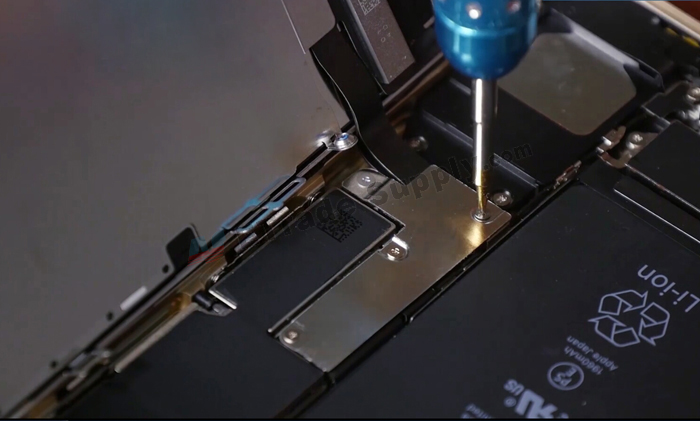

9.Undo 4 triangle screws

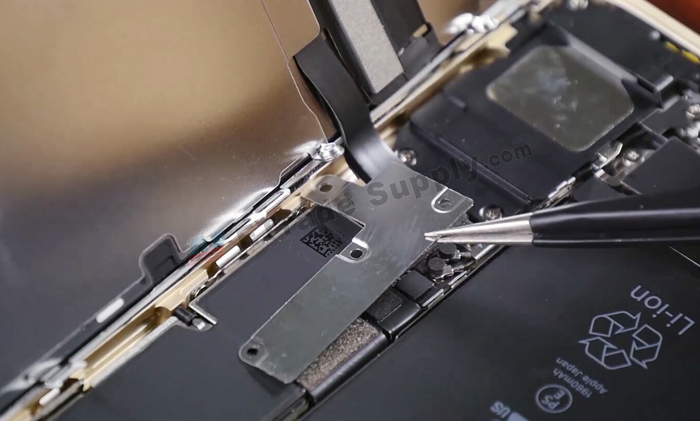

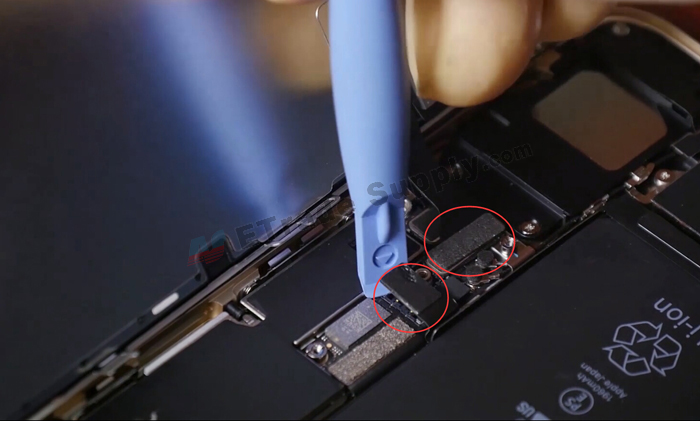

Remove the metal shied, release battery and screen connectors.



10.remove metal sheild



11.remove connectors

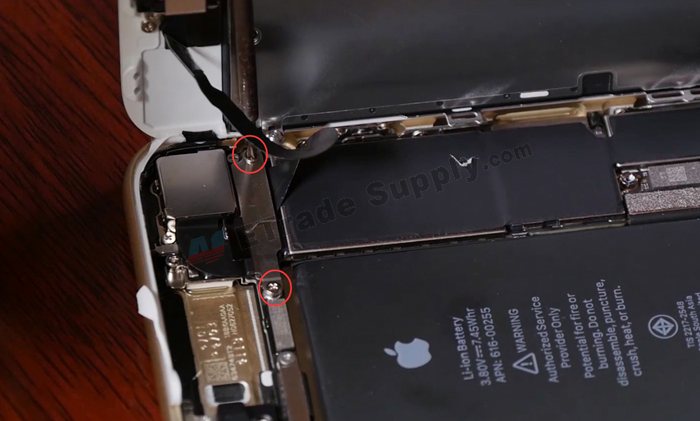

5. Undo 2 Philips screws and its metal shield, then disconnect the front-facing camera flex cable.



12.undo screws

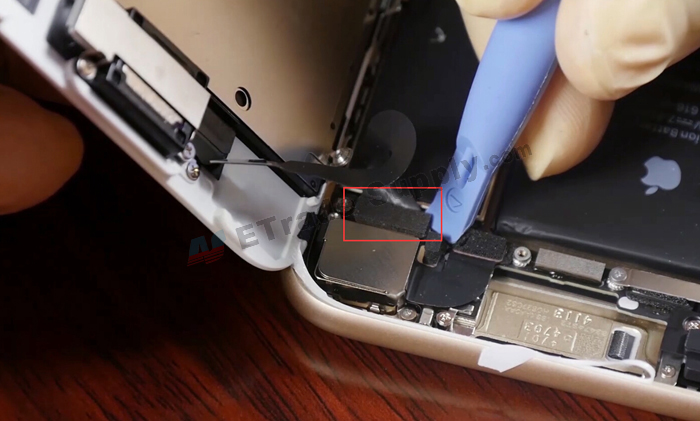

13.disconnect connector

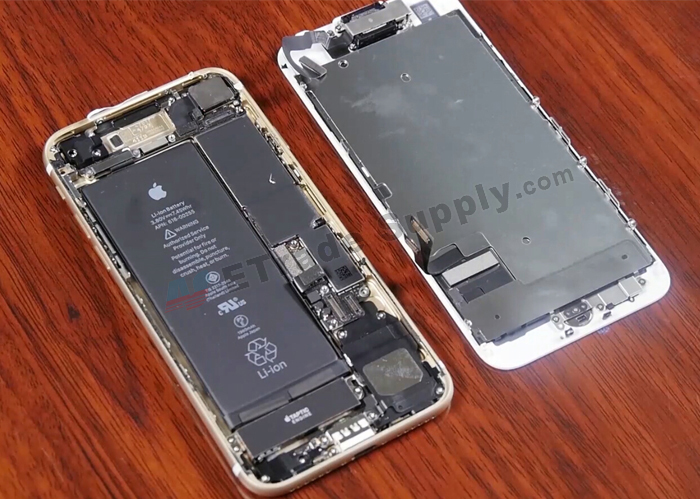

Then the screen assembly can be removed now.



14.remove screen assembly

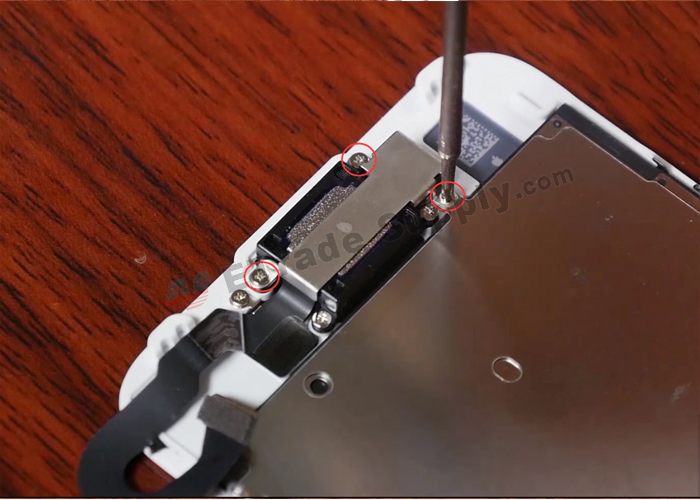

Step 6. Undo 3 small Philips screws holding the front-facing camera metal shield and then remove the metal shield.



15.remove 3 phillips screws

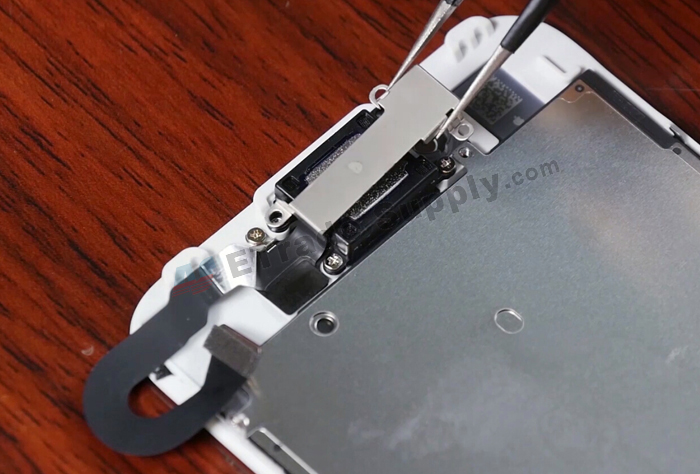

16.remove metal cover

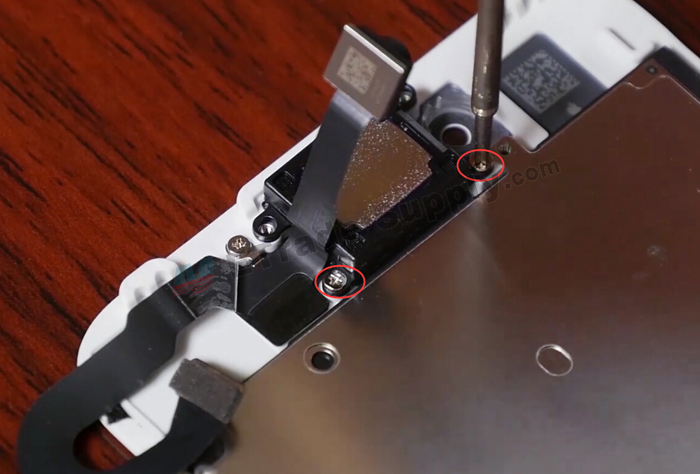

Step 7. Undo 2 small Philips screws holding the earphone.



17.remove earpiece screws

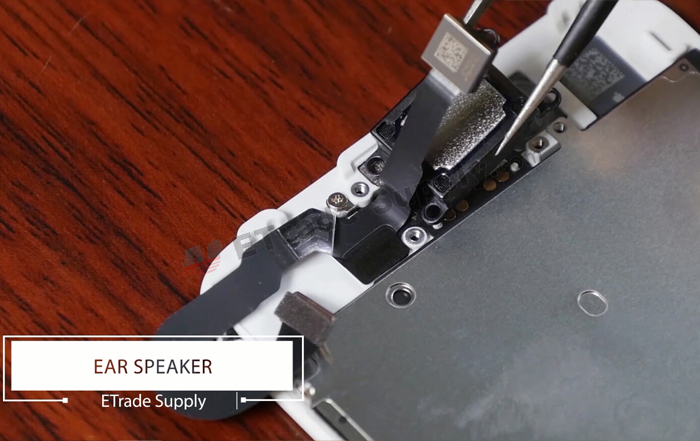

Then remove the ear speaker.



18.remove earpiece



Step 8. Apply proper heat then pick up the front-facing camera with light and proximity sensor.

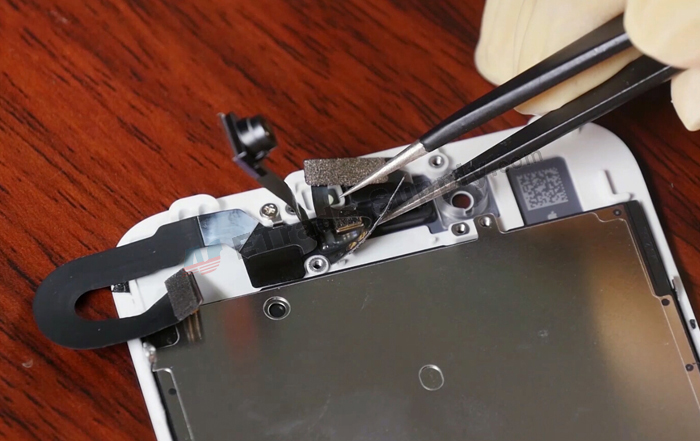

19.remove front camera and proximity sensor

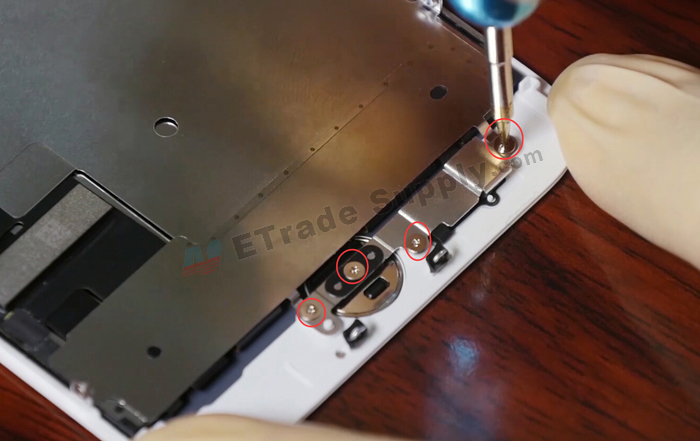

Step 9. Undo 4 triangle screws holding the home button metal shield.



20.remove home button screws

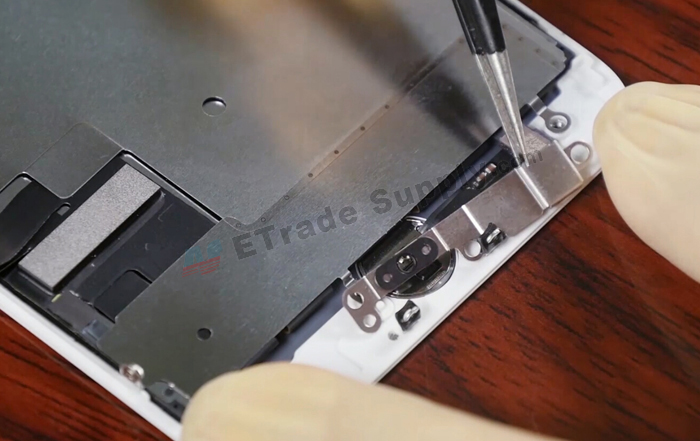

21.remove metal shield



Step 10. Undo 6 triangle screws holding the metal shield. Be careful, the LCD and digitizer flex cables are bonded to the metal shield on its back!

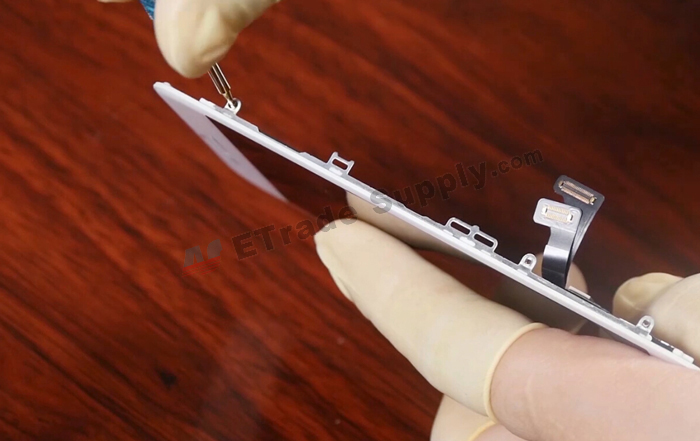

22.remove 6 tri-point screws

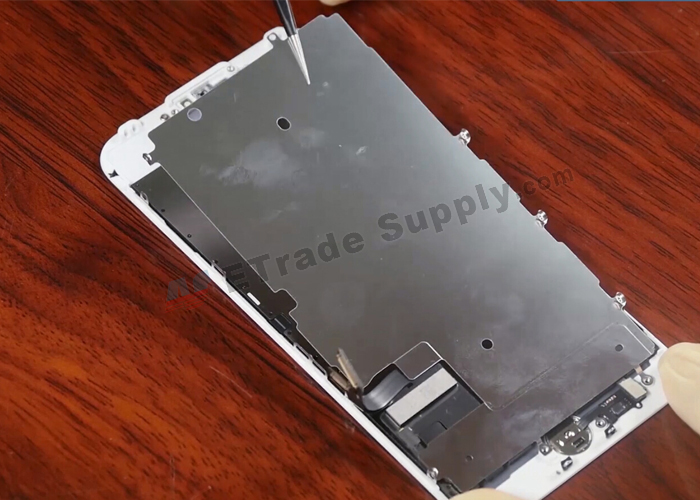

23.remove metal screen shield

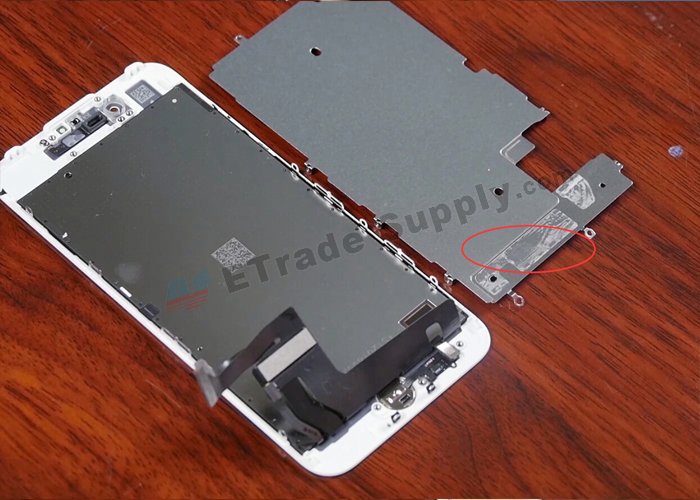

24.screen shield



Step 11. Disconnect home button flex cable connector, apply some heat to loosen the home button flex cable, then press down the home button.

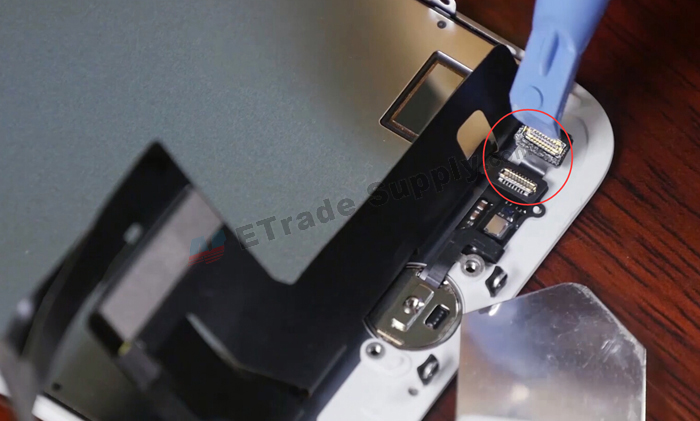

25.disconnect home button flex cable

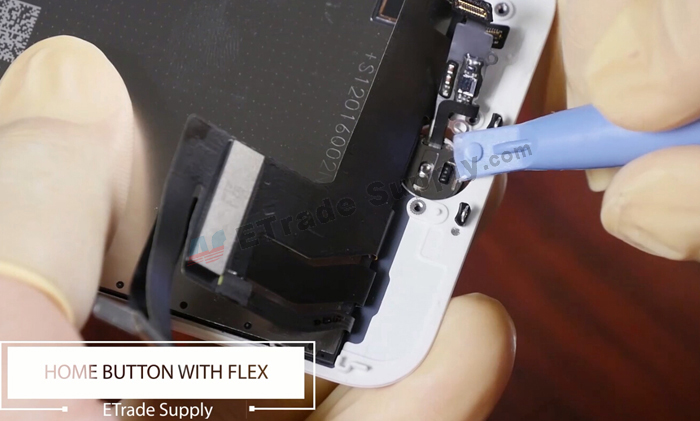

26.remove home button



Step 12.Undo 2 small Philips screws holding the rear facing camera then release it

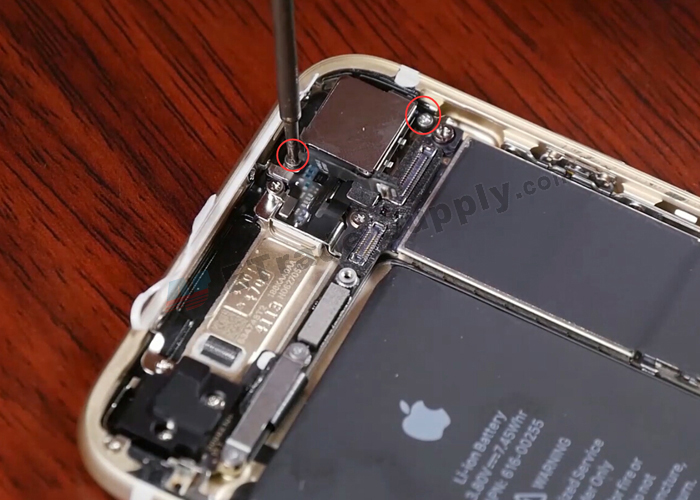

28.undo rear camera screws

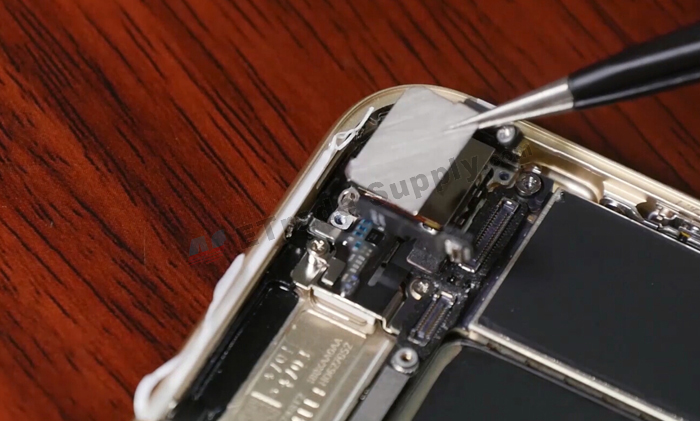

29.remove metal cover

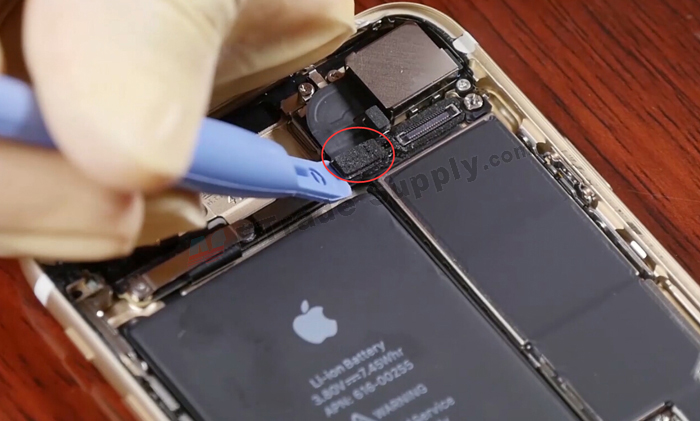

27.release rear camera connector

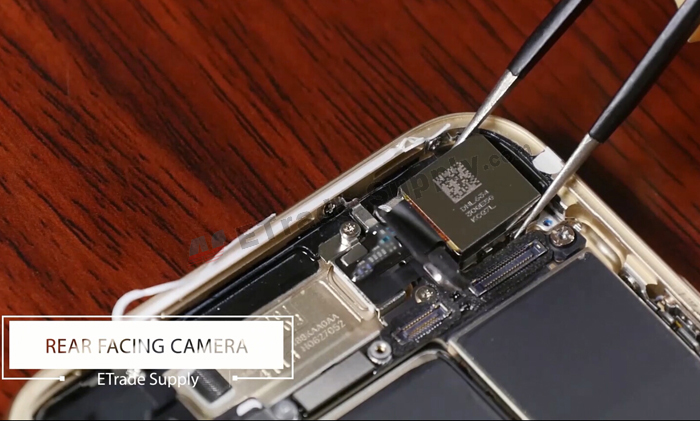

30.remove rear camera

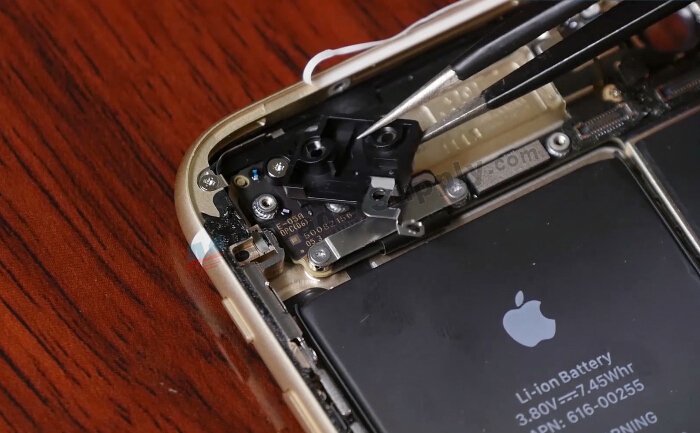

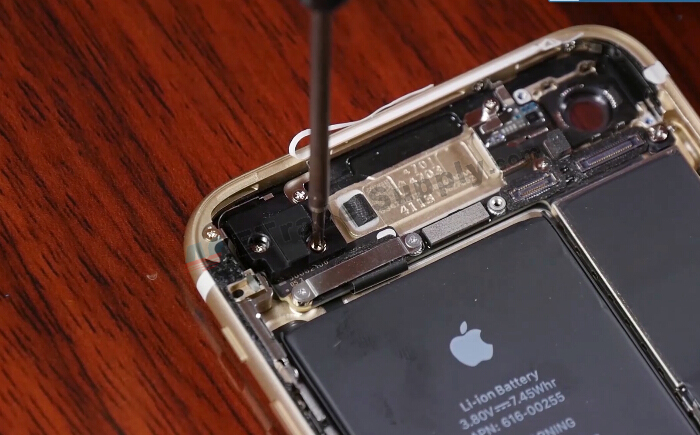

Step 13. Undo 3 small Philips screws holding the Wifi antenna metal shield then 2 Philips screws under it, then you can remove the wifi antenna now.



31

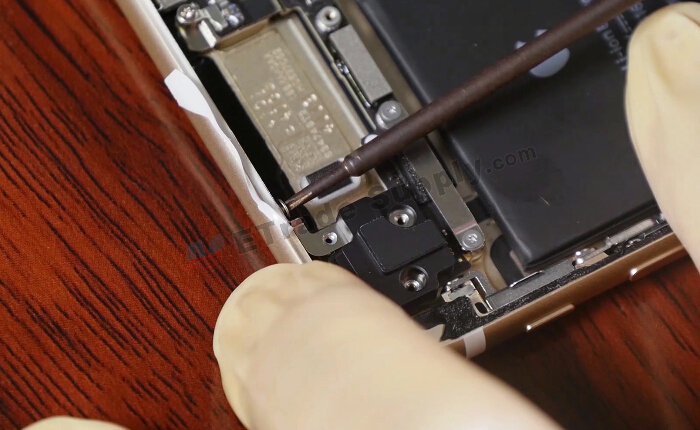

32



33



Step 14. Undo 2 triangle screws holding the side keys metal shield.

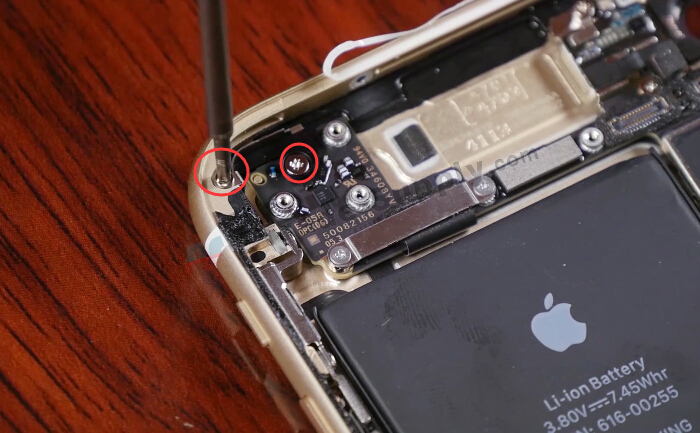

34

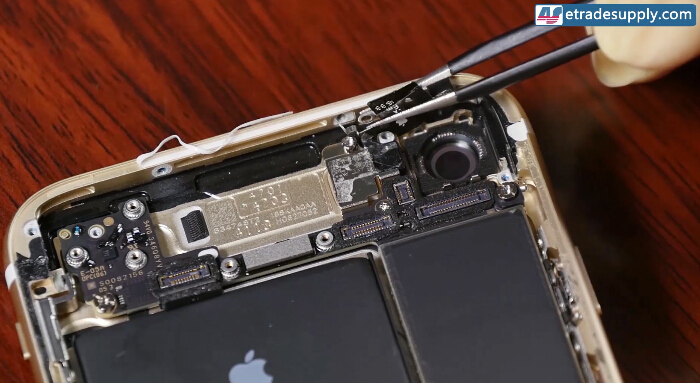

Step 15. Undo 2 small Philips screws then remove the antenna then you can remove antenna flex cable (be careful when prying up the antenna flex which is stuck to the rear housing).

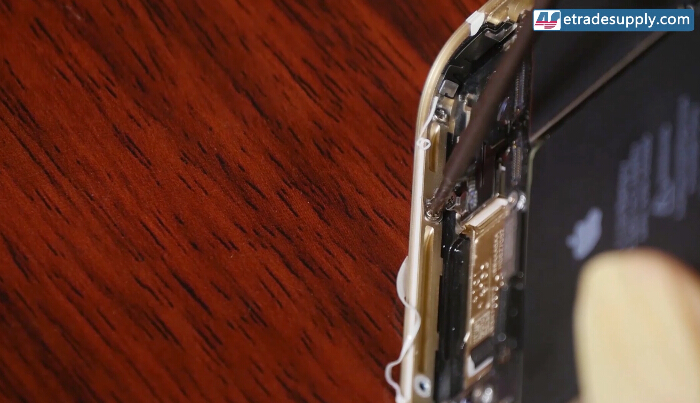

remove another antenna screw

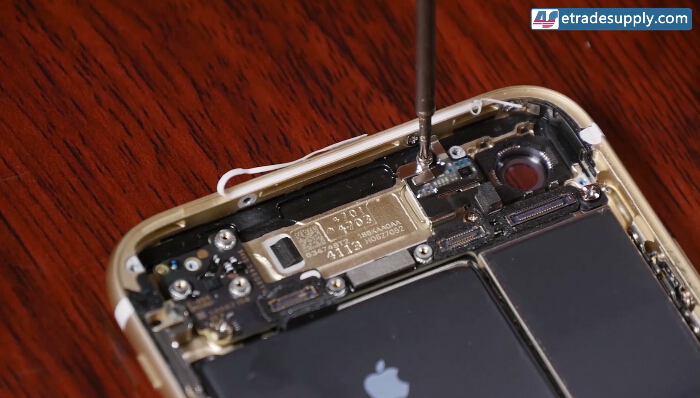

remove antenna screws



remove antenna

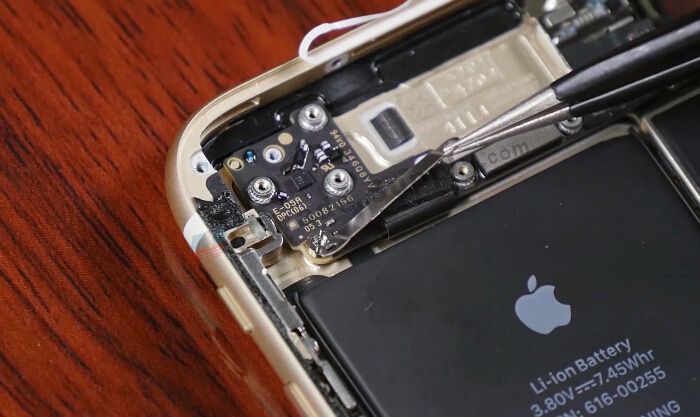

Here we need to undo 2 Phillips screws and remove the metal shield cover before releasing the side button flex cable connector.

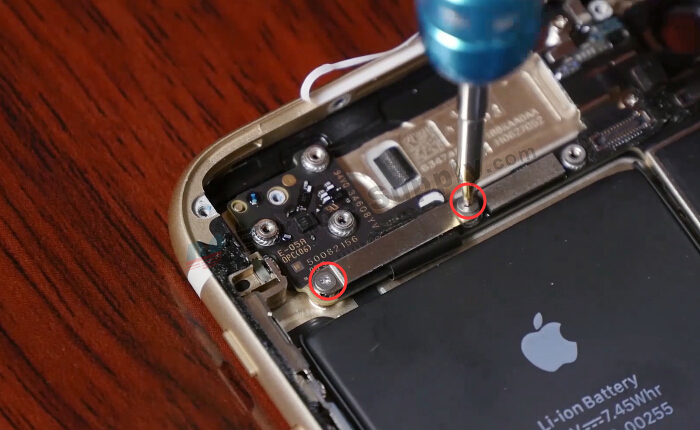

35



36

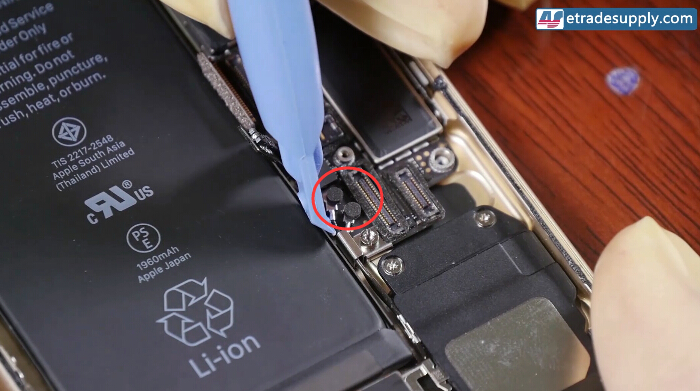

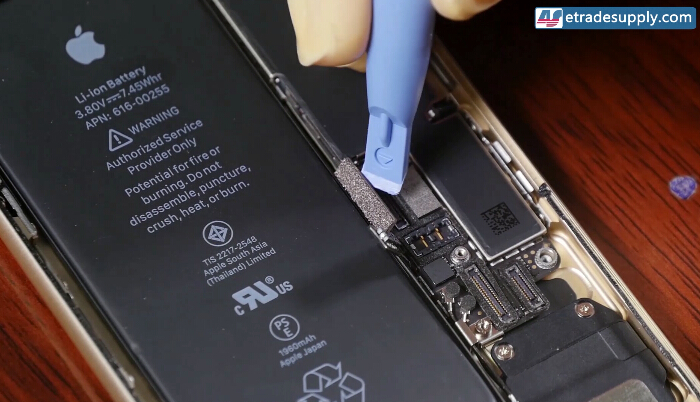

Step 16. Disconnect the charging port flex cable connector, signal cable clips, and side button flex cable connector.

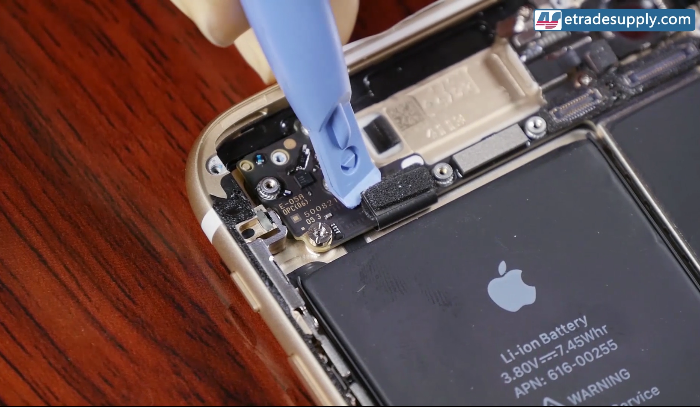

remove side button flex cable connector



release signal cable clips



remove charging port flex connector

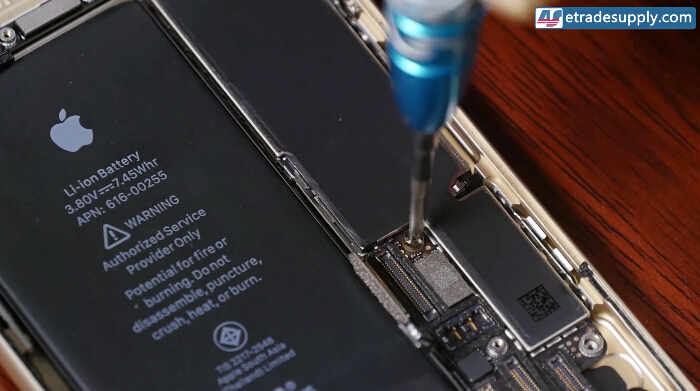

Undo all Philips screw holding the motherboard.

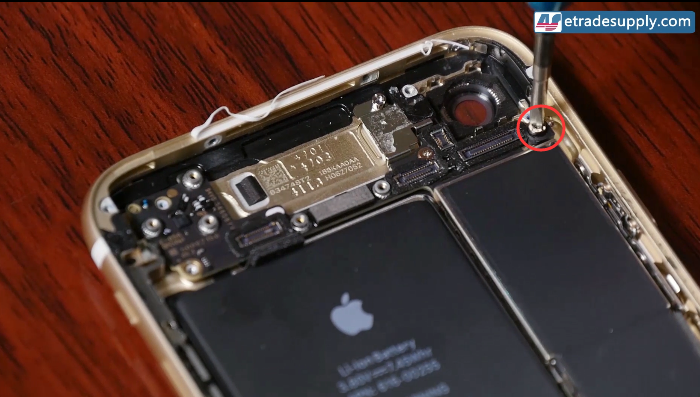

remove another motherboard screw

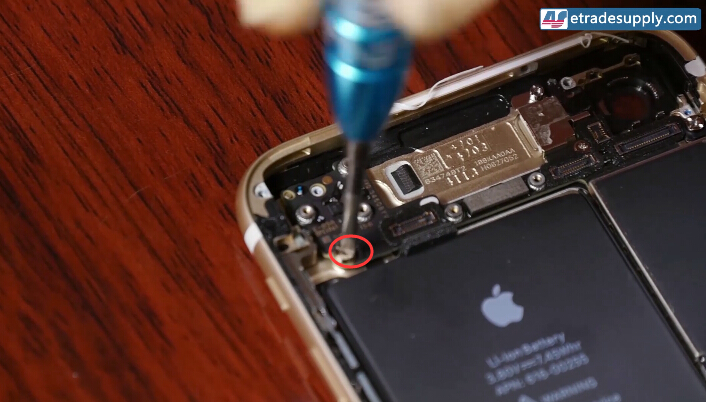

remove motherboard screw



remove motherboard screw3

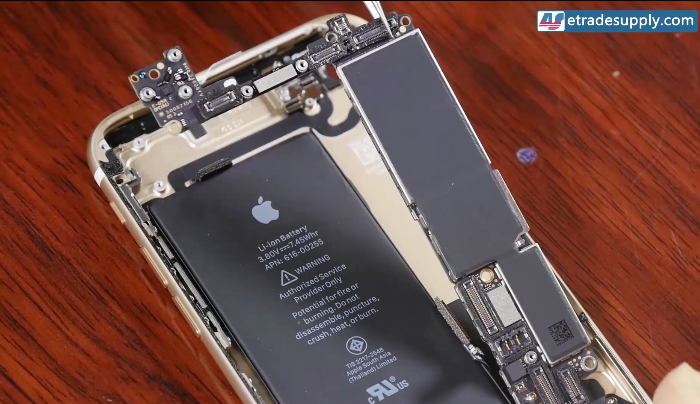

then motherboard can be removed.



remove iPhone7 motherboard



Step 17. Undo 3 Small Philips screws holding the vibrating motor.

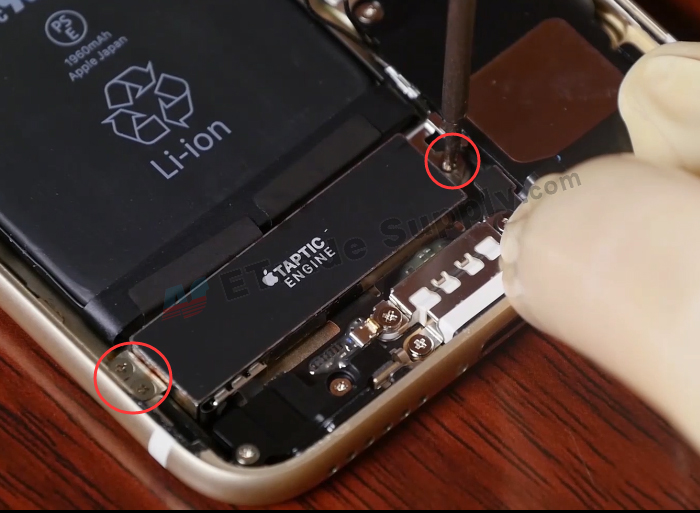

remove taptic engine screws



Step 18. Undo 2 Small Philips screws then remove the cover.

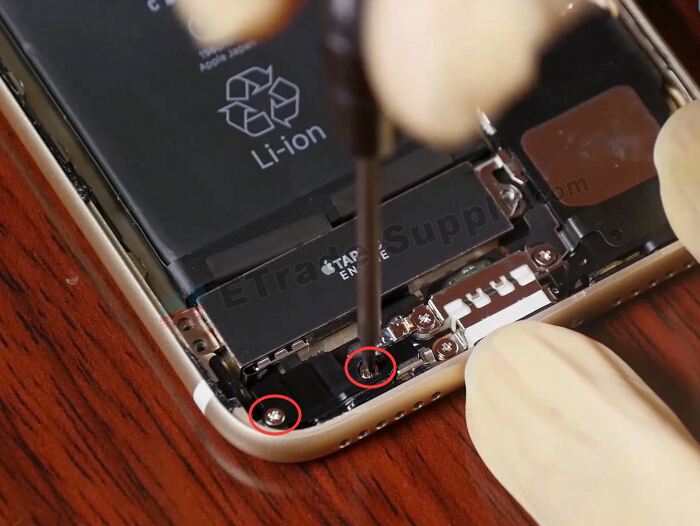

remove plastic cover screw

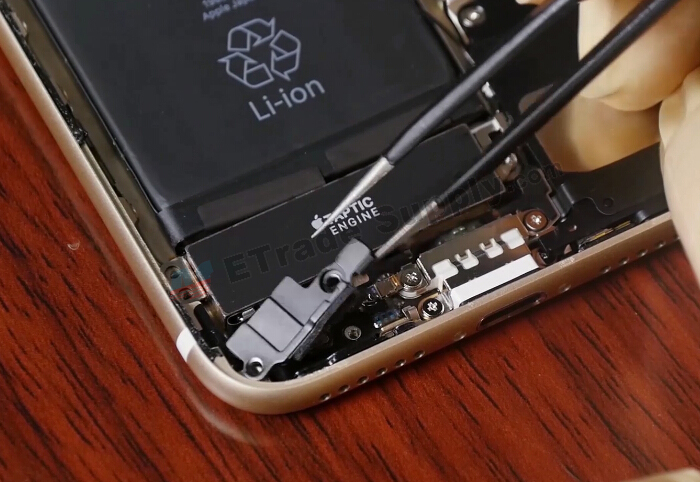

remove plastic cover

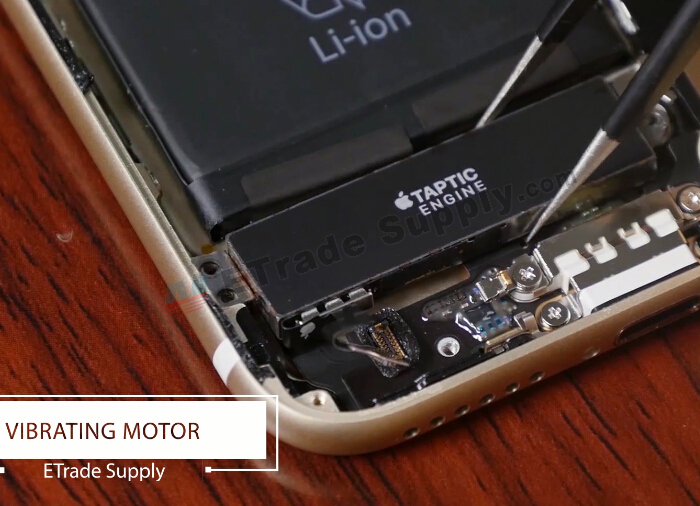

Step 19. Disconnect the Taptic engine connector then release it.

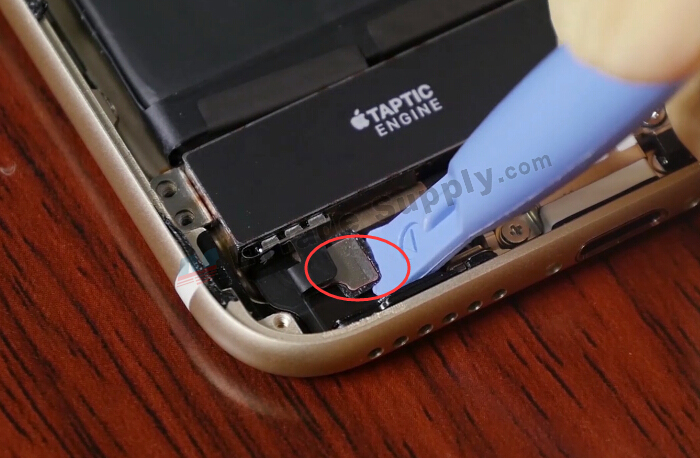

release taptic engine connector



remove taptic engine

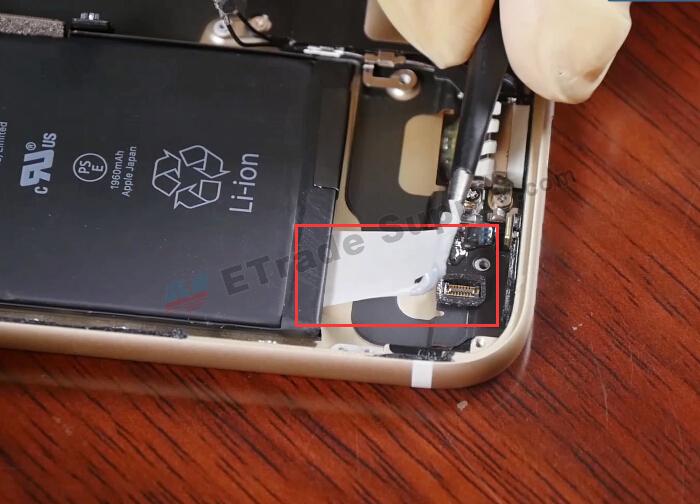

Step 20. Gradually pull out the battery adhesive to release the battery.



pull off battery tape

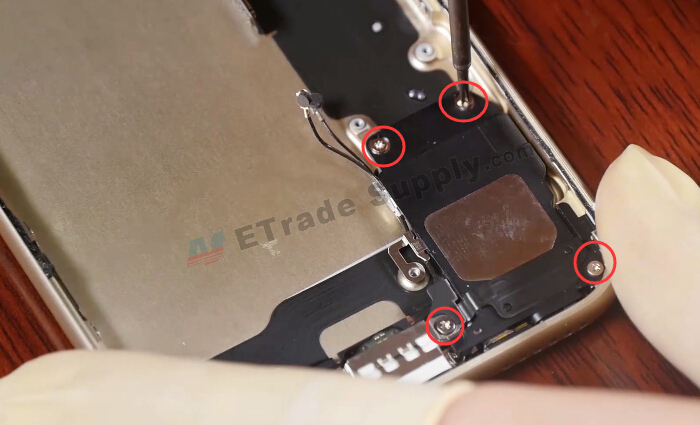

Step 21. Undo 4 small Philips screws holding the loudspeaker then release loudspeaker.



undo loudspeaker screw.jpg

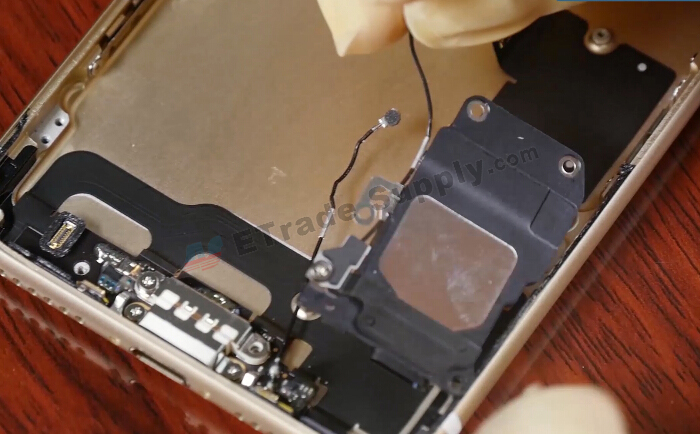

remove loudspeaker



Step 22. Undo 5 small Philips screws securing the charging port flex cable assembly then remove the charging port cable.

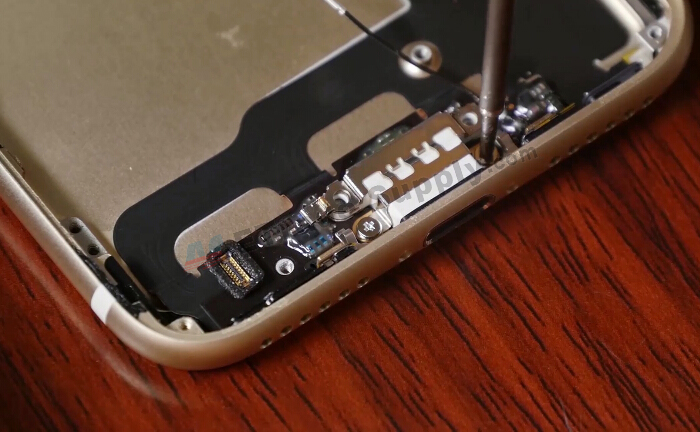

undo charging port screw

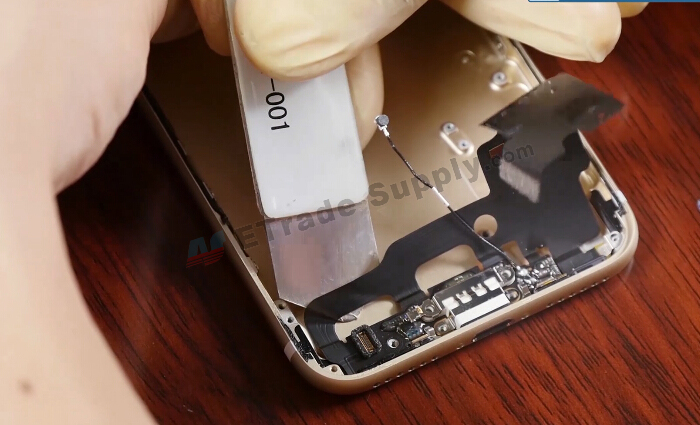

remove charging port flex

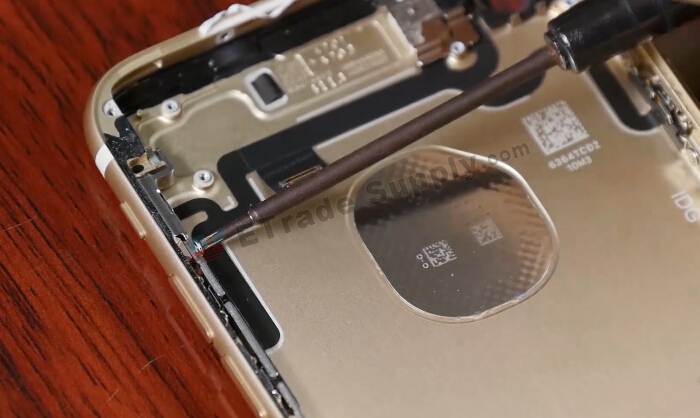

Step 23. Undo 5 small Philips screws and 1 Philips screw then remove the power button flex cable.



undo side button flex screws

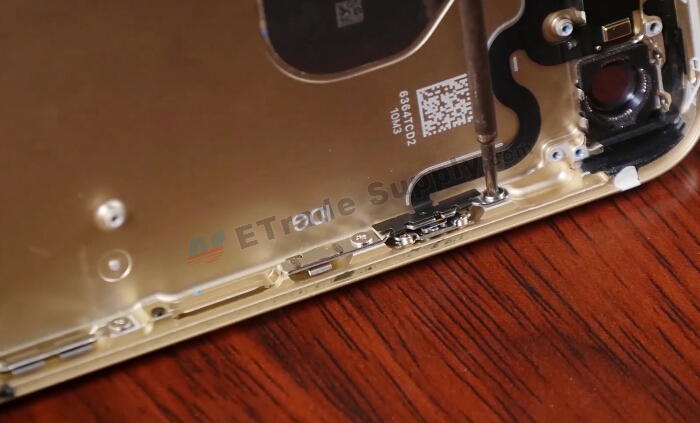

undo side button flex screws2

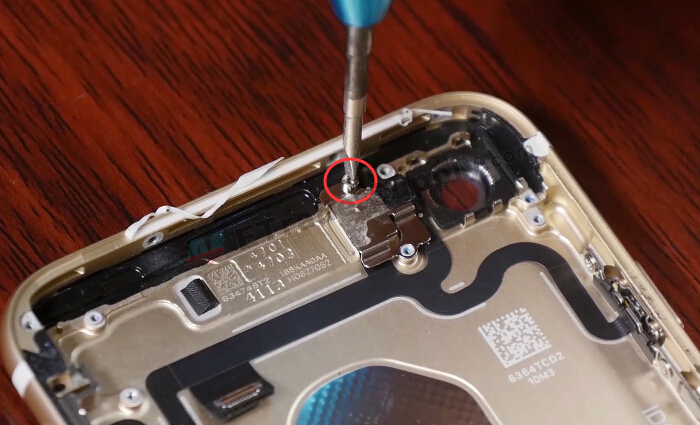

undo side button flex small screw

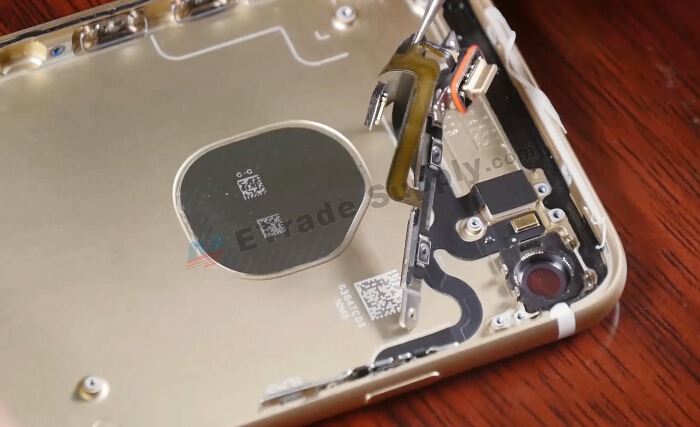

remove side button flex cable

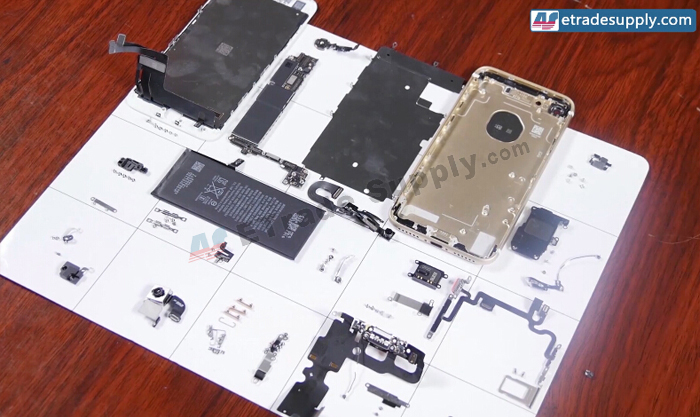

Job did! This is the whole disassembly process of the iPhone 7.



iPhone 7 whole teardown



Check our iPhone 7 teardown video!





iPhone 7 Plus disassembly is coming soon, if you like our blog don't hesitate to give us a like, any idea or suggestions are welcomed!
