How to Fix Cracked iPhone 6S for Screen Replacement

There’s a saying going around that you should not quarrel with your girlfriend during these days as the new iPhone is appearing on the market now, she might get too angry and throw the cellphone away whether it’s an old phone or even a new iPhone. And the quarrel will only end when you buy a new phone for her, possibly the new iPhone.

Well, it has already happened in China, a girl was pissed off by her boyfriend and in an argument she threw her brand new Rose Gold iPhone 6S, which she had got just for hours. Does the poor man have to buy her a new iPhone, not necessarily; he can learn to fix his girlfriend’s cracked iPhone 6S with a screen replacement for big savings here:


Tools Needed:

Pentalobe screwdriver

Suction Cup Tool

Prying tool

Tweezers

Eject Pin

Case Opening Tool

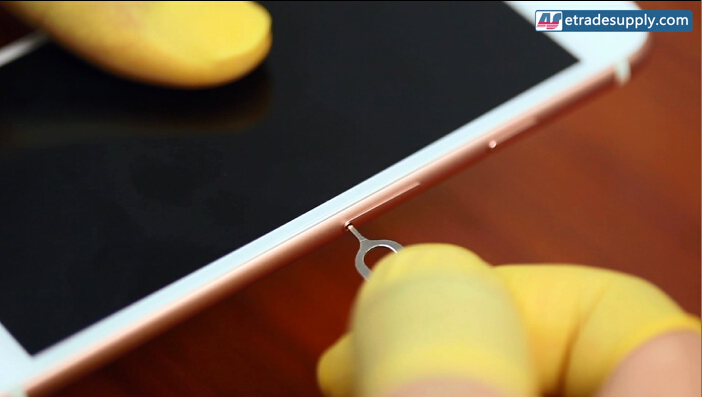

1. Power off the iPhone 6S and remove the SIM card tray with en eject pin tool.


2. Undo the 2 charging port screws with a Pentalobe screwdriver.

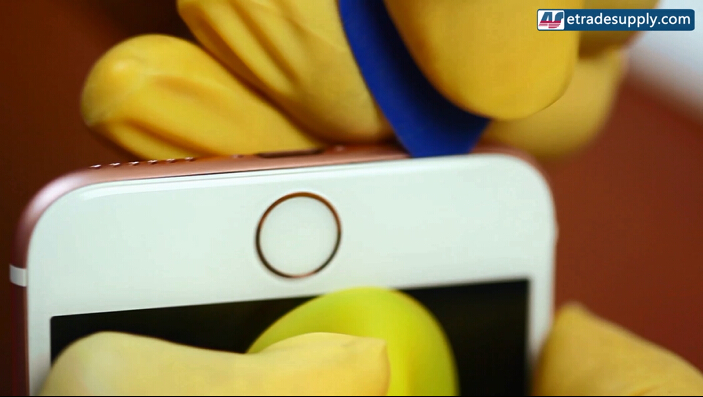

3. Pop up the LCD assembly by lifting up a gap with a suction cup tool and insert the case opening tool in between, running around the edges to release the LCD assembly.

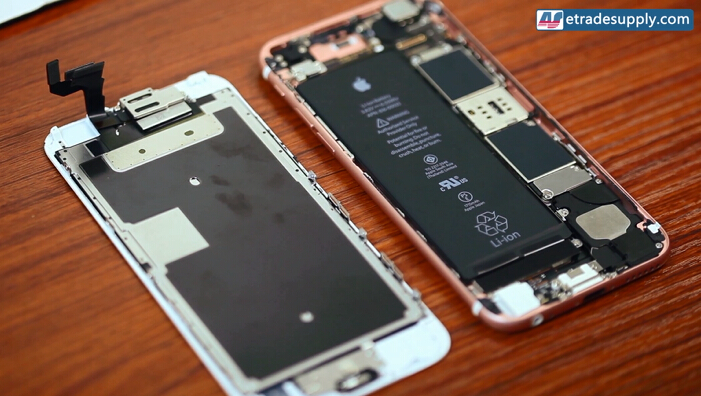

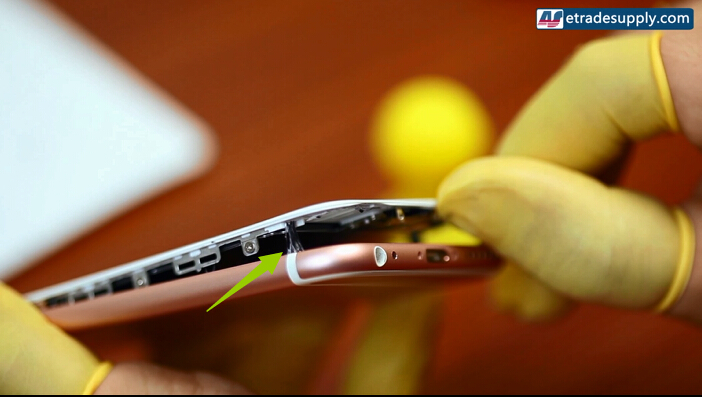

4. Undo the 4 screws to release the metal protection cover and then gently lift up the flex ribbon connectors to release the whole iPhone 6S LCD assembly. Be careful, there's adhesive underneath.

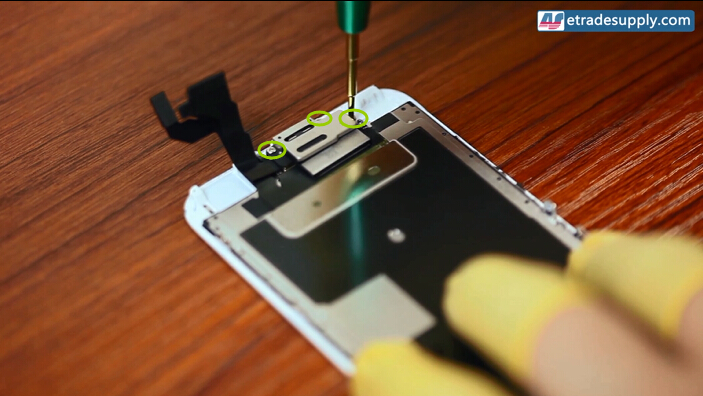

5. Undo the 3 screws to release the metal bracket covering the earpiece.

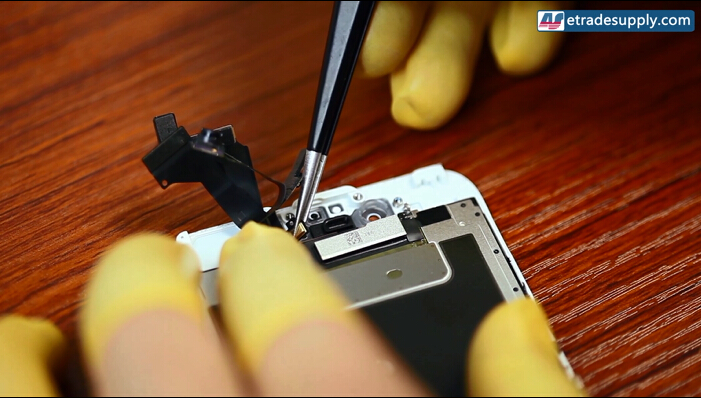

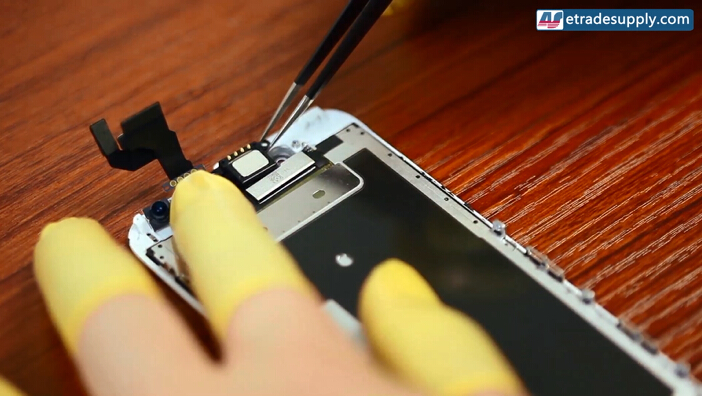

6. Remove the earpiece and front camera with sensor.

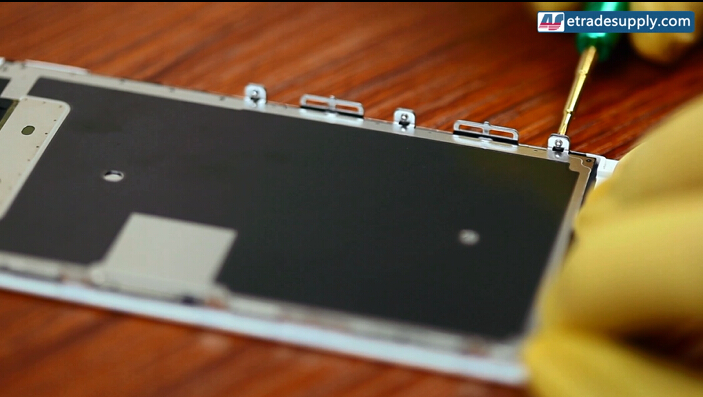

6. Undo the 8 screws and pry up the adhesives to release the metal LCD back plate.

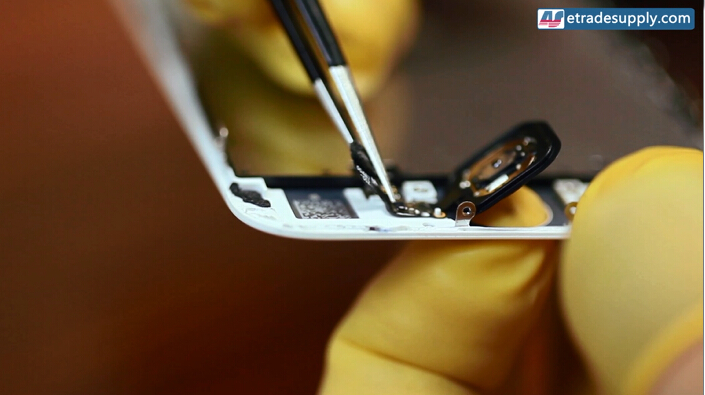

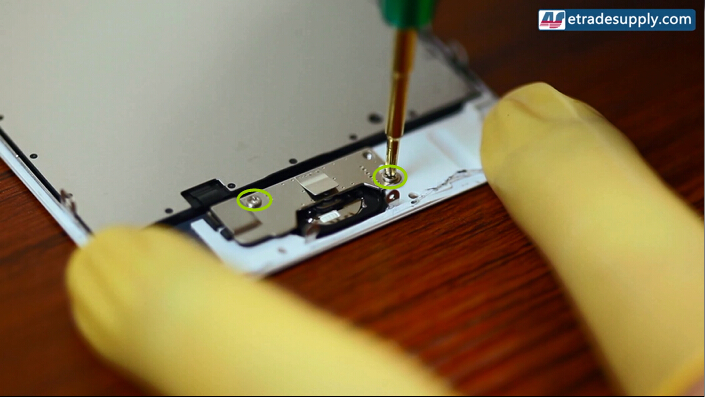

7. Undo the 2 screws, then pry up the metal bracket, the home button flex connector and adhesive to release the home button assembly.

Now replace the broken iPhone 6S screen with a new one in reverse order.
