How to replace your iPhone 7 Plus battery

Though we have a non-removable battery in most of the smartphones, still sometimes we need to get our battery changed to continue its life. Here we’re going to show you how to replace iPhone 7 Plus battery.



These tools are needed during the repair process:





Step 1 Remove LCD screen assembly



First, we need to power off the phone, then unscrew 2 Pentalobe screws at the bottom.



1.Unscrew 2 Pentalobe screws



Next, we’d better heat up the screen assembly for a while before using the suction cup to separate the screen and rear housing assembly.



2.REMOVE SCREEN ASSEMBLY



After a small gap between LCD screen assembly and rear housing assembly was generated, use a spudger to insert to cut the adhesives around the screen edges.

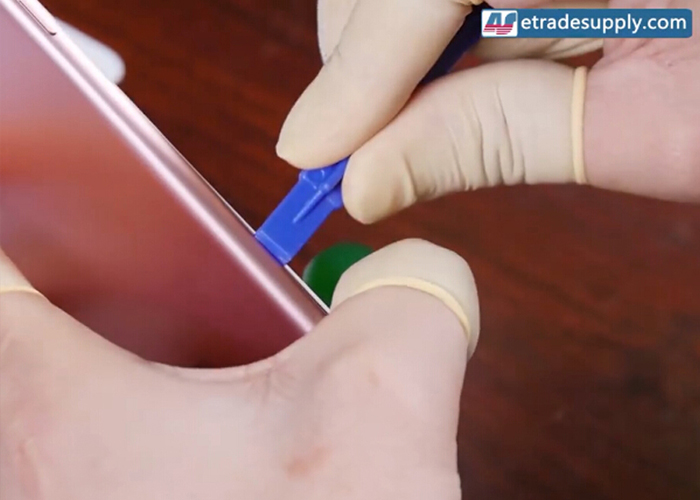

3

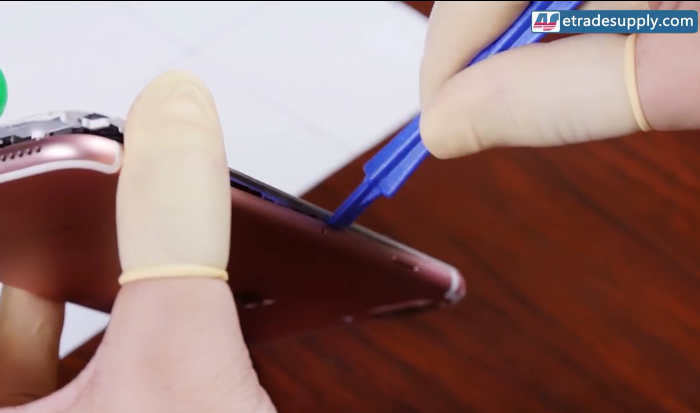

4.seperate screen assembly



Till all the screen adhesives were cut off, then we’re ready to separate the screen from the rear housing assembly.



5.remove screen



6.screen assembly



Before taking the screen off, there are some connectors need to be disconnected. Undo these 3 tri-point screws holding the metal cover, remove it and release the front-facing camera with sensor flex cable underneath.

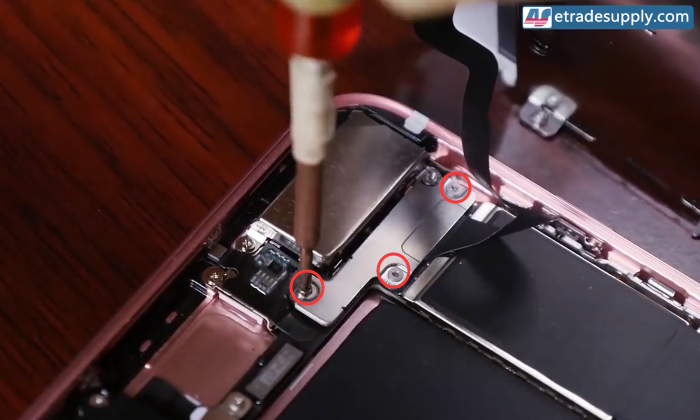

7.undo 3 screws



Then undo these 4 little screws and remove the metal cover.

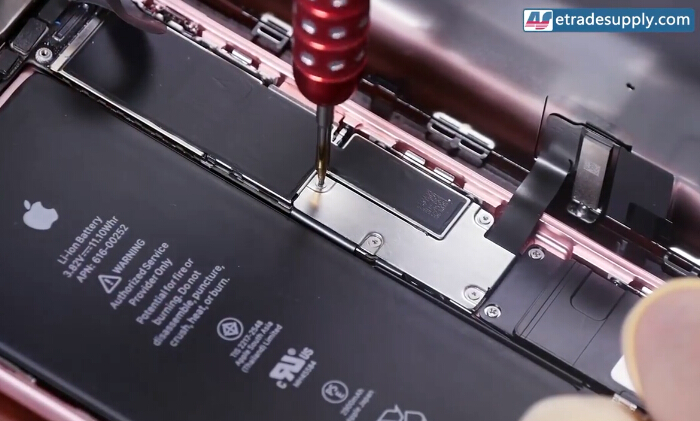

8.undo screws



Now, we can release the digitizer and LCD display screen connectors.



10.release screen connector



11.release screen connector



Now time to take out the screen assembly.



12.screen removed



Step 2 Remove battery



Remove taptic engine screws and the barometric vent (according to Apple) screws.

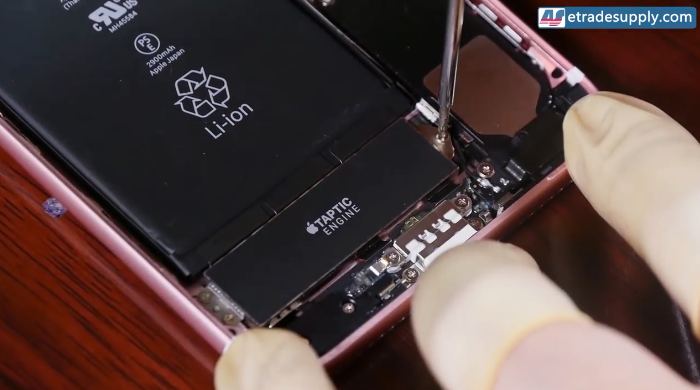

43.remove taptic engine screw



44.remove 2 screws



Then remove the barometric vent and disconnect the taptic engine connector so you can remove this vibrating motor.

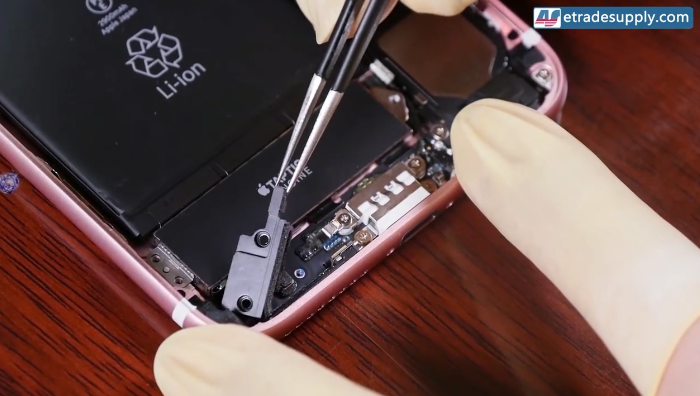

45.remove plastic cover



46.remove vibrator connector

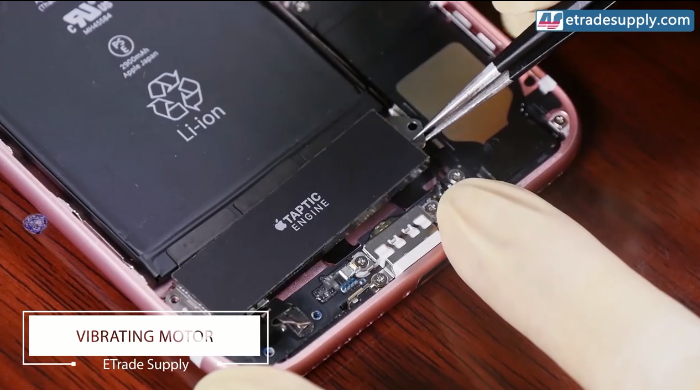

47.remove vibrator



Then all we left is taking out battery. Pull out 2 stripe of battery adhesives underneath and battery can be removed easily.



48.pull off battery tape




48.pulloff adhesives



Battery removed!



iPhone 7 Plus battery



If you want to check the whole iPhone 7 Plus teardown, Visit our Youtube Channel ETrade Supply. And if you need any iPhone 7 Plus spare parts, ETrade Supply provide you best products and service.
