How to refurbish Samsung Edge screen

Since Samsung apply the curved edge screen to S6/S7 series, which makes it looks very smooth, attractive as well functional. Especially Samsung S7 Edge, it carries many new shortcuts and tools. When someone calls or texts, it lights up automatically and shows information via a very tiny display. While nothing is perfect, the edge screen is easier to be broken. You need to take special care and protection on it. Not only users, even technicians of repairing and refurbishing have headaches. A Little mistake can ruin the whole screen. Then you will need to bear a lot! One day when you overcome this issue and well grasp this skill, we could say that you’re the best! If you’re ready to refurbish, the below may help you.

Tools Need:

Frozen Separator Machine

Pry piece

Non-dust cloth

Cleaning agent

Mold

Roller

Bubble Removing Machine

Step 1. Separate the glass from the LCD screen.

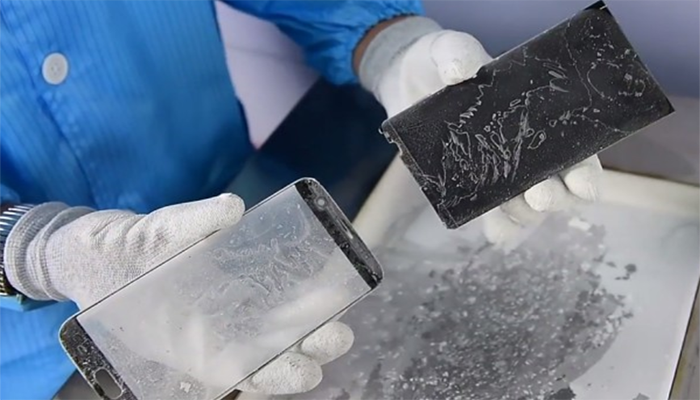

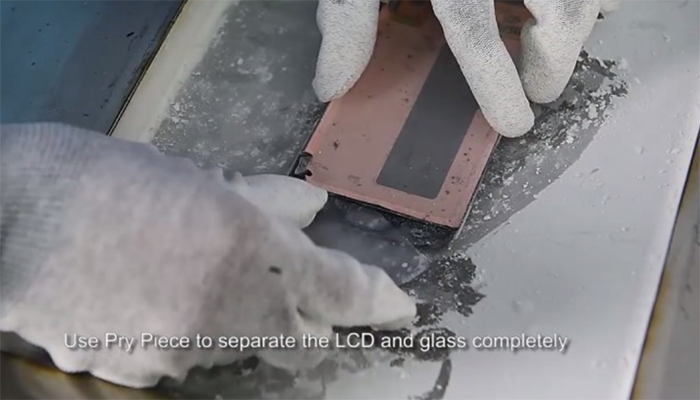

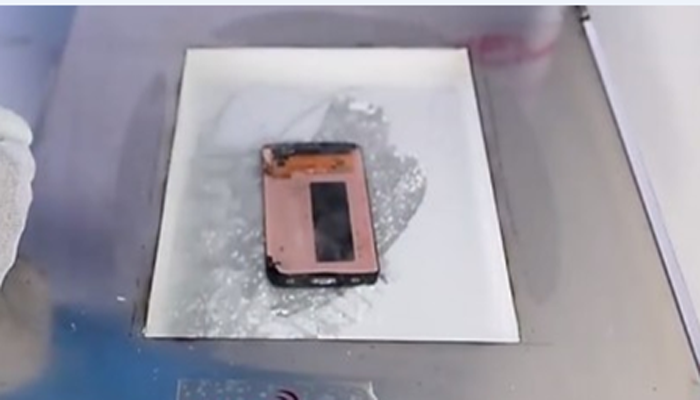

Set the frozen separator machine to -140℃ put the LCD screen into the machine with the glass face down for the 30s. Then use the pry piece separate the glass from LCD screen.

How to refurbish Samsung Edge screen1 How to refurbish Samsung Edge screen2 How to refurbish Samsung Edge screen3

Step 2. Remove the LCD adhesive.

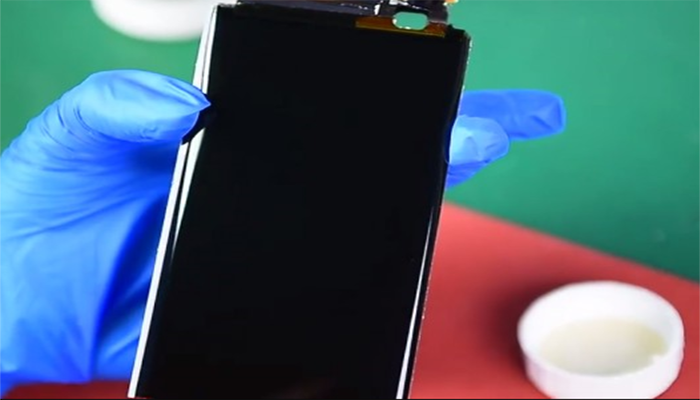

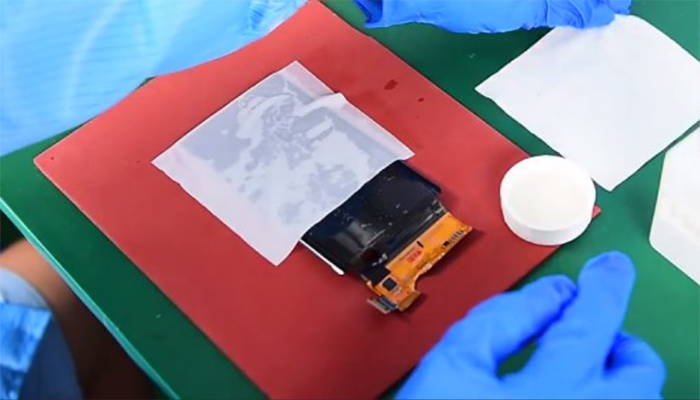

Remove the LCD with the non-dust cloth dipped the cleaning agent also you can use a plastic card.

How to refurbish Samsung Edge screen4 How to refurbish Samsung Edge screen5

Step 3. Laminate the OCA.

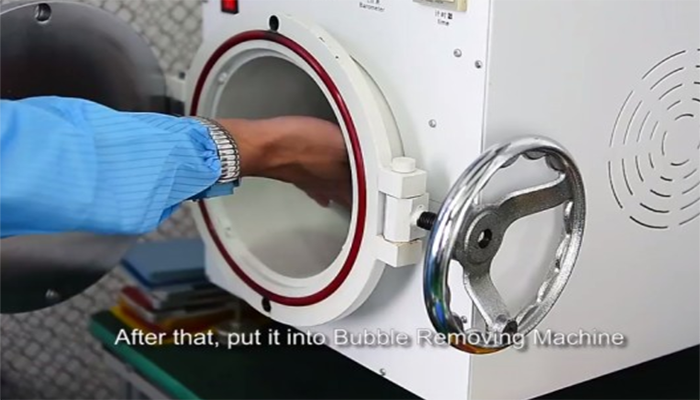

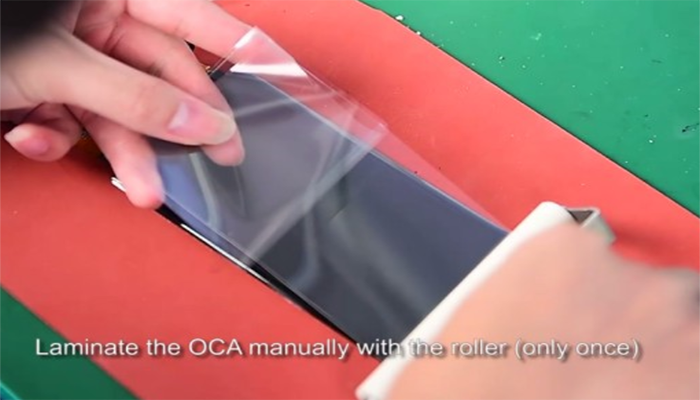

Laminate the OCA manually with the roller and then put in the bubble removing machine to remove bubbles. (Before laminating you should make sure there are no dust on the LCD surface)

How to refurbish Samsung Edge screen6 How to refurbish Samsung Edge screen7

Step 4. Laminate the LCD screen

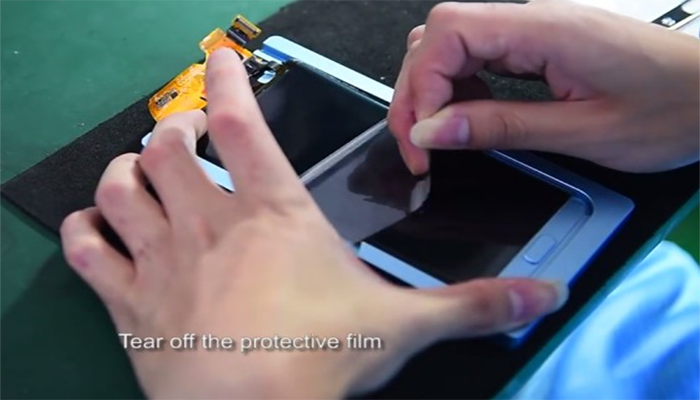

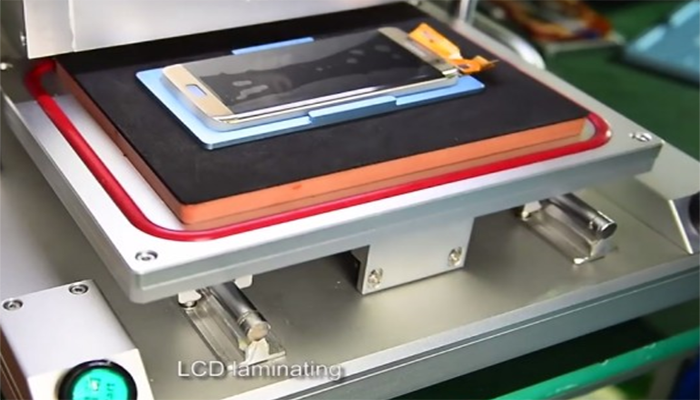

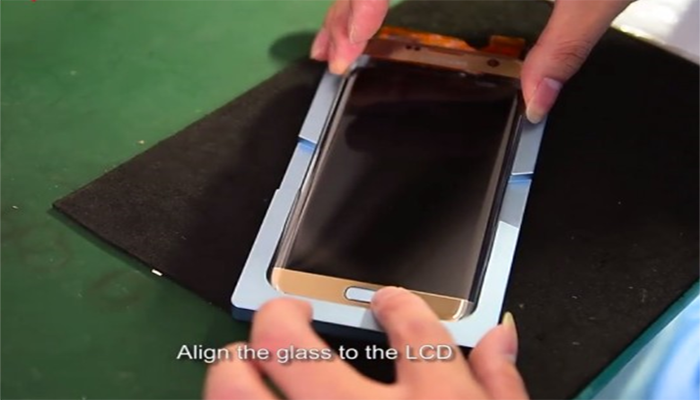

Put the LCD in a mold, tear off the LCD protective film, align the glass to the LCD and put it in the laminate machine. (You should make sure no dust on the glass before laminating)

How to refurbish Samsung Edge screen8 How to refurbish Samsung Edge screen9 How to refurbish Samsung Edge screen10 How to refurbish Samsung Edge screen11

Step 5. Remove the bubbles in the LCD screen

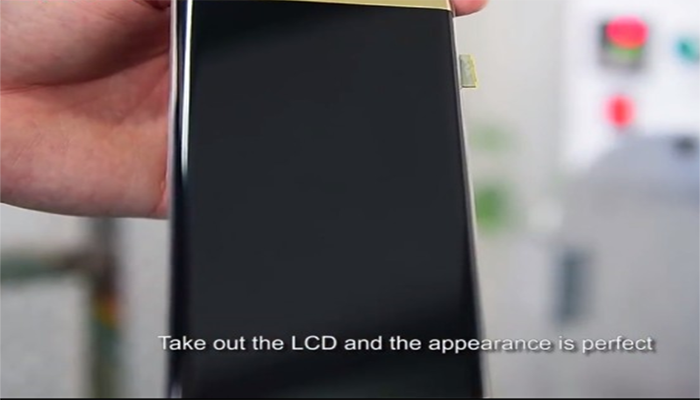

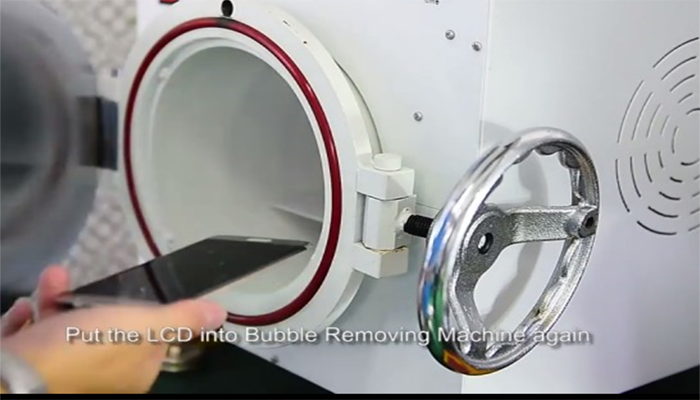

Put the LCD screen into the bubble removing machine again, when taking it out you will find it looks like a new one.

How to refurbish Samsung Edge screen12 How to refurbish Samsung Edge screen13

The above 5 steps look very easy, but you should care with each step, there are still risks damaging the LCD. It is hard to replace the front glass without professional people and machines.

If you have any questions, do not hesitate to leave your comment below!
