How to Reassemble LG G2 for Parts Repair

If you are confident with your DIY repair skills, you can take apart the broken LG G2 to repair broken parts. After you disassemble the LG G2 parts, it is helpful for you to learn from here how to reassemble the LG G2. Please note DIY repair LG G2 can save your money but will void your warranty.

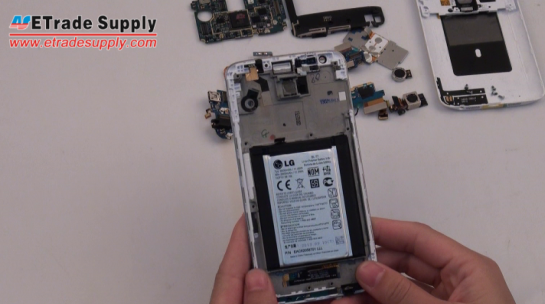

Step 1: Take a LG G2 LCD screen assembly with battery.

Reassemble LG G2 for Parts Repair

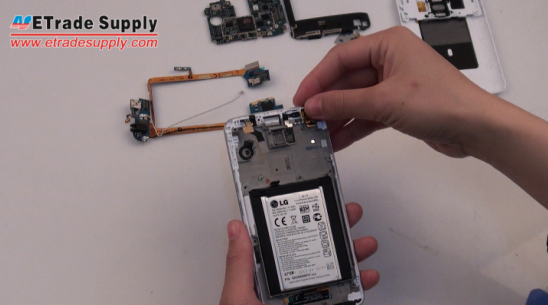

Step 2: Place the LG G2 sensor.

Place the LG G2 sensor

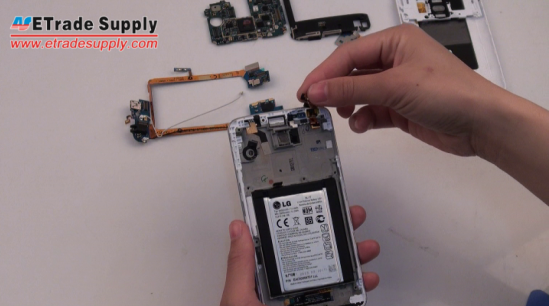

Step 3: Put the G2 front-facing camera in place.

Put the G2 front-facing camera

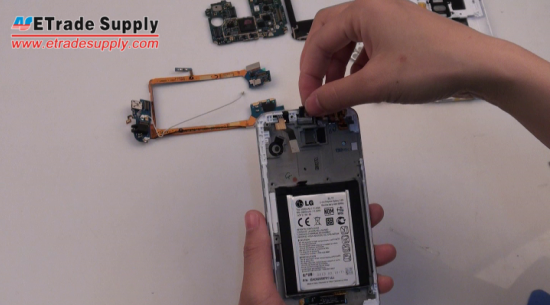

Step 4: Install the LG G2 ear speaker.

Install the LG G2 ear speaker

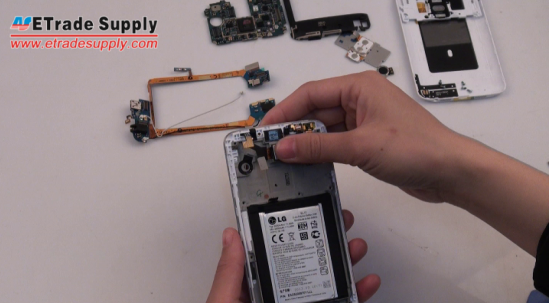

Step 5: Place the LG G2 rear-facing camera in position.

Place the LG G2 rear-facing camera

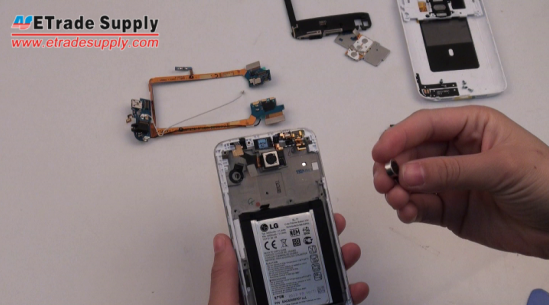

Step 6: Fix the LG G2 vibrating motor.

Fix the LG G2 vibrating motor

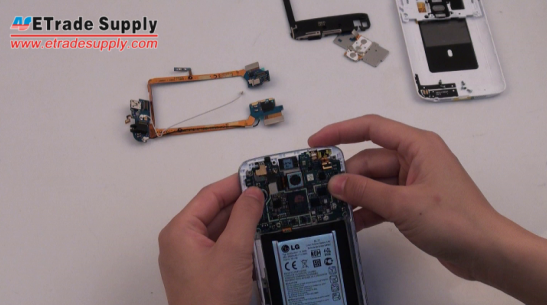

Step 7: Install the LG G2 logic board.

Install the LG G2 logic board

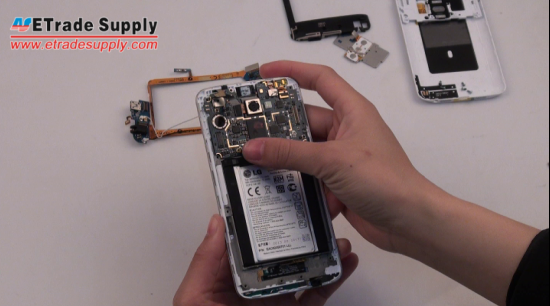

Step 8: Connect four connectors to secure the G2 logic board.

secure the G2 logic board

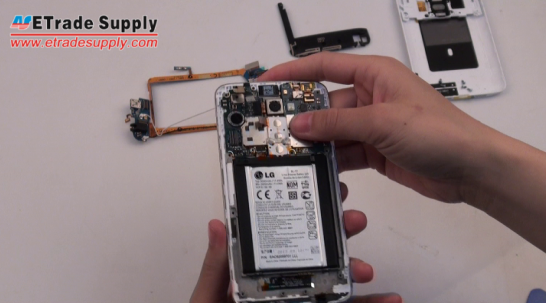

Step 9: Put the LG G2 keyboard in place.

Put the LG G2 keyboard in place

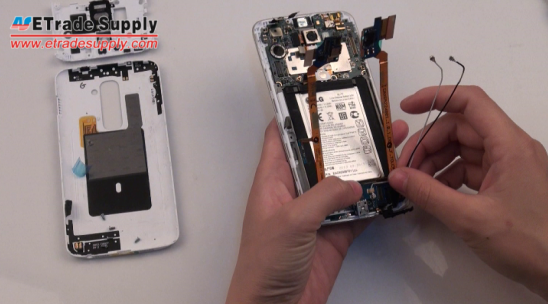

Step 10: Install the LG G2 charging port flex cable ribbon with earphone jack and antennas.

Install the LG G2 charging port flex cable ribbon

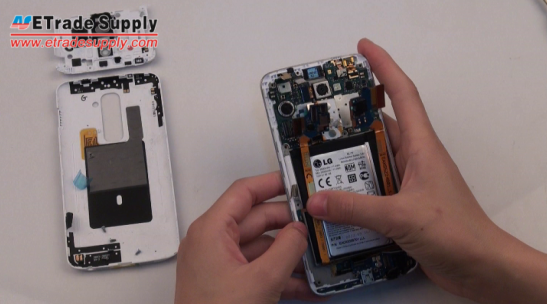

Step 11: Connect the left connector to fix the G2 charging port.

fix the G2 charging port

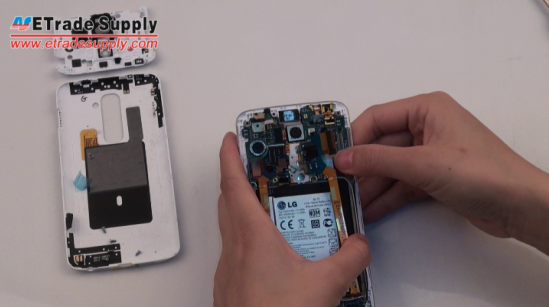

Step 12: Connect the two G2 antenna connectors.

Connect the two G2 antenna connectors

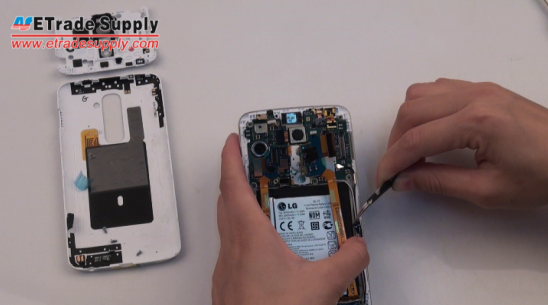

Step 13: Stick a tape to fix the LG G2 antenna connectors.

fix the LG G2 antenna connectors

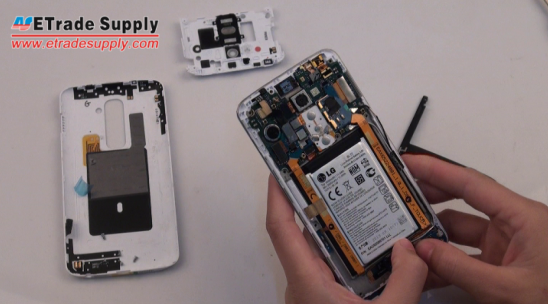

Step 14: Connect six connectors to secure the G2 charging port.

secure the G2 charging port

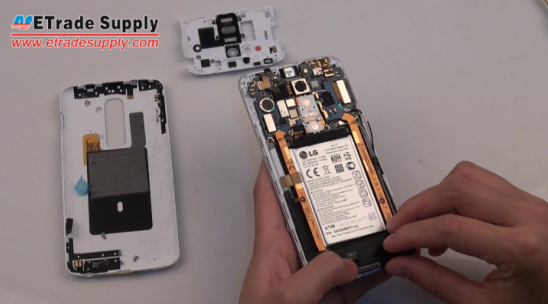

 Step 15: Install the LG G2 antenna module.

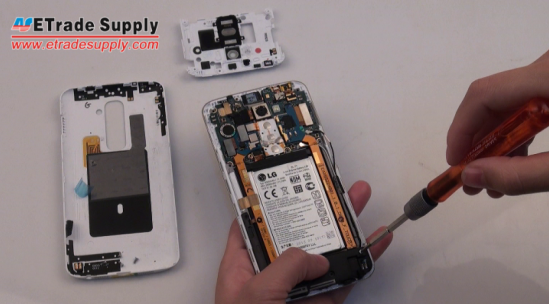

Install the LG G2 antenna module Step 16: Secure the G2 antenna module with five screws.

Secure the G2 antenna module

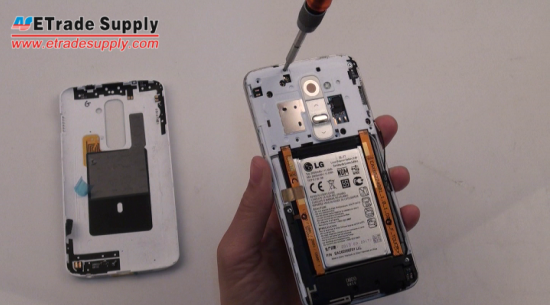

 Step 17: Install the G2 rear housing and  fasten it with seven screws.

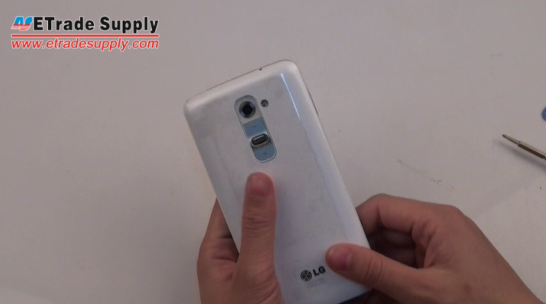

Install LG G2 rear housing Step 18: Install the G2 battery door.

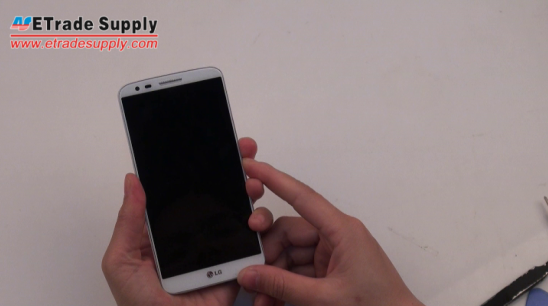

Install the G2 battery door Step 19: The LG G2 Reassembly is done!

LG G2 Reassembly is done

Please feel free to follow our YouTube Video LG G2 Reassembly Repair Guide to reassemble the LG G2 step by step.

  1. BY Daniel
    |

    Hi,

    I changed the screen of my LG G2 + the charging port flex cable. Phone is working perfectly except I have a problem with some letters on my keyboard, on the left and on the right. Some letters and signs like positioned in a vertical row are not working. What can it be and where should I verify ?

    Many thanks

  2. BY George Stoneham
    |

    I recently reassembled my lg g2 D805 and now the microphone at the base of the phone is not working. Will not allow voice control, and I cannot be heard on the other end of the phone unless I am on speaker phone.

    Do i need to send it to be repaired or can I do it myself?
