- Compatible With: Galaxy Note 5 SM-N920V, Note 5 SM-N920P, Note 5 SM-N920H, Note 5 SM-N920F
-
For Samsung Galaxy Note 5 SM-N920V/N920P/N920H/N920F Rear Housing Replacement - Sapphire - Grade S+
This item includes the following parts:
1. Rear Housing;
2. Volume Button;
3. Power Button;
4. Camera Lens and Bezel;
5. Camera Flash Lens and Bezel;
6. Power Button Flex Cable Ribbon;
7. Volume Button Flex Cable Ribbon;
8. Wireless Charger Chip;
9. Loud Speaker.
Specifications:
Color: Sapphire
Material: Plastic
Compatibility: Samsung Galaxy Note 5 SM-N920V (Verizon)
Features:
This Galaxy Note 5 Rear Housing is a brand new and original replacement.
This Galaxy Note 5 Back Housing replacement includes the small parts as mentioned above.
This Galaxy Note 5 Rear Housing is available in sapphire.
This Rear Housing replacement is compatible with Samsung Galaxy Note 5 verizon version only. Please do not confuse it with the Galaxy S6 Edge+ Rear Housing.
How to Install / Tips:
Please choose the right part before placing an order.
Special repairing tools are required for assembling or disassembling the Samsung Galaxy Note 5.
Handle the vulnerable and fragile flex cable ribbon carefully.
Please try to handle the repair or replacement work in a dry and dust free environment without direct sunlight.

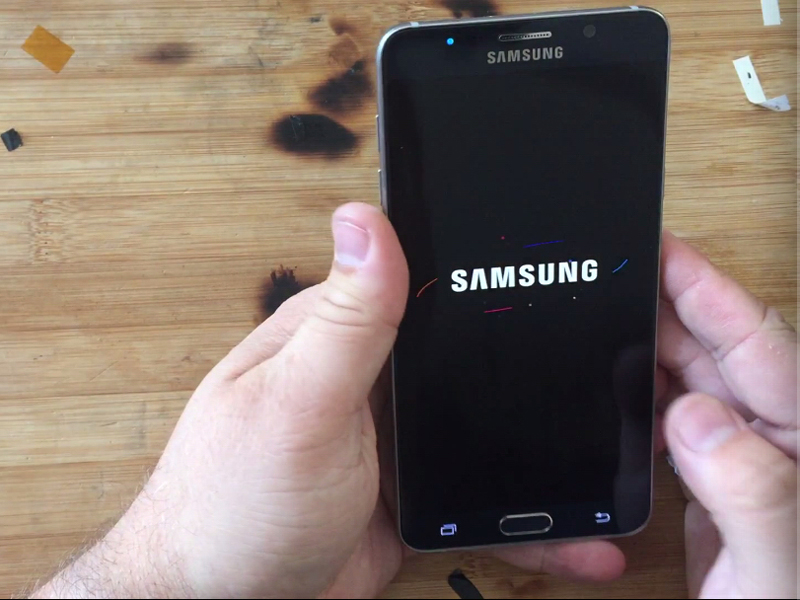

The installation of any new part should be done by a qualified person. ETS is not responsible for any damage caused during installation.1. Power off the Galaxy Note 5 and remove the S Pen.
2. Remove the Galaxy Note 5 back cover.

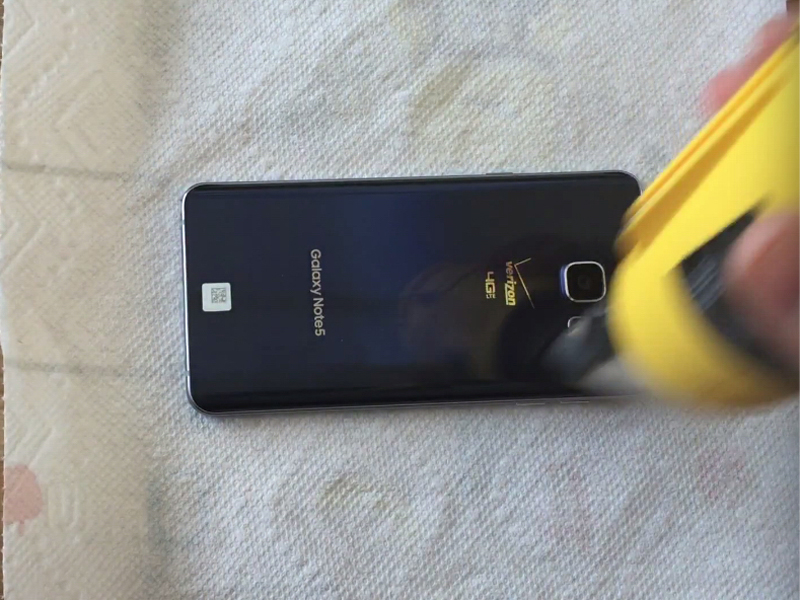

Run the hair drier or heat gun around the edges of Note 5 on the back to soften the adhesive.

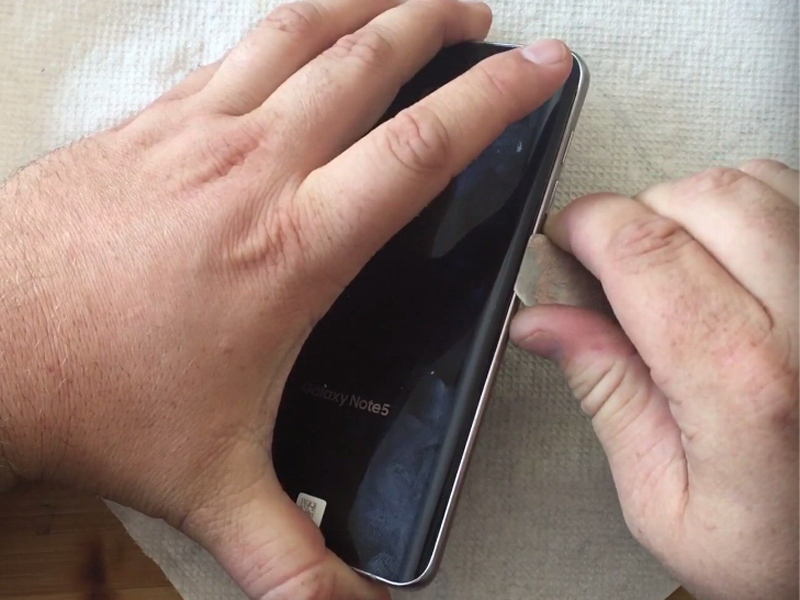

Gently pry up to release the back cover. Be patient on this step as the battery cover is glued by strong adhesive.
3. Release the Galaxy Note 5 rear housing.

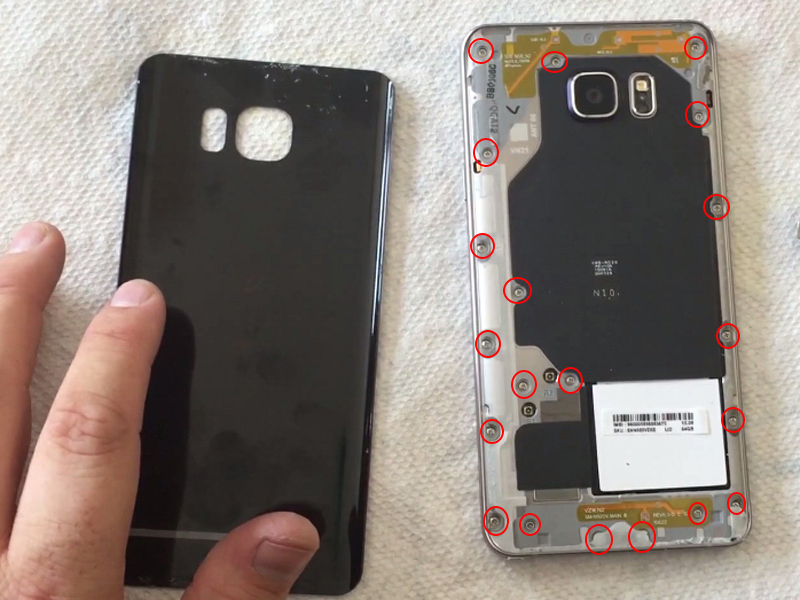

Undo the 20 screws in the rear housing.

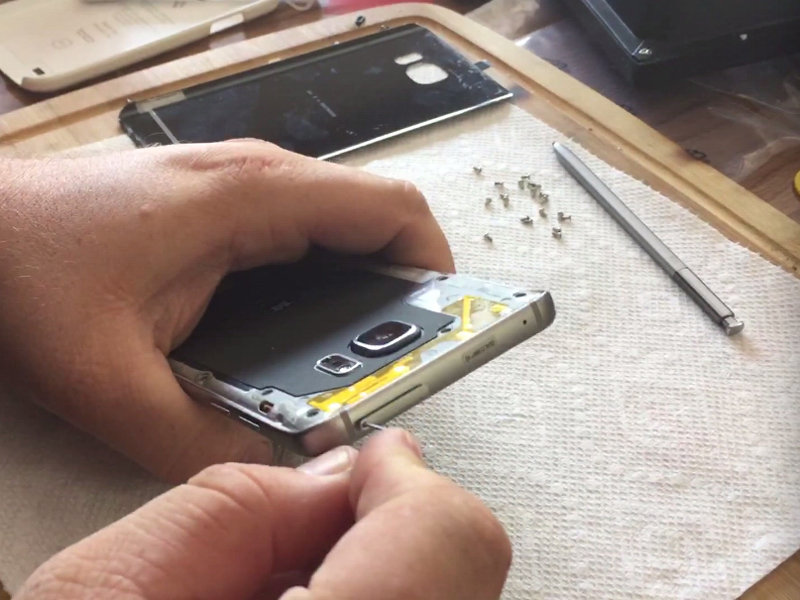

Remove the SIM card tray.

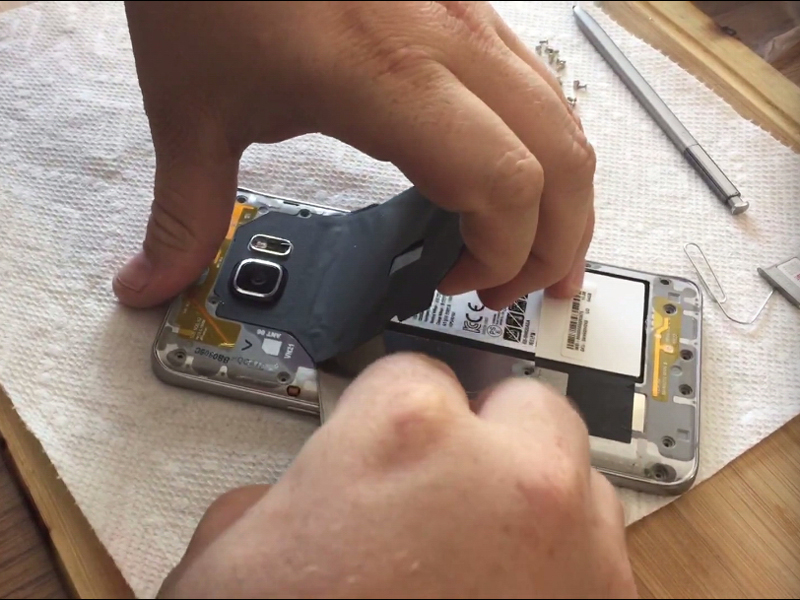

Pry up the wireless charging chip. Be careful not to damage the fragile flex ribbon.

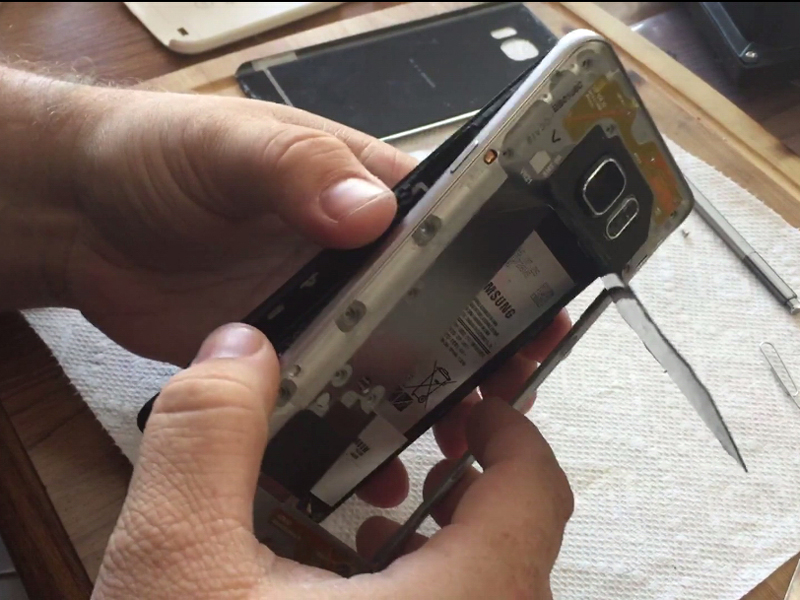

Insert the case opening tool into the gap between rear housing and LCD assembly to release the rear housing.
-
