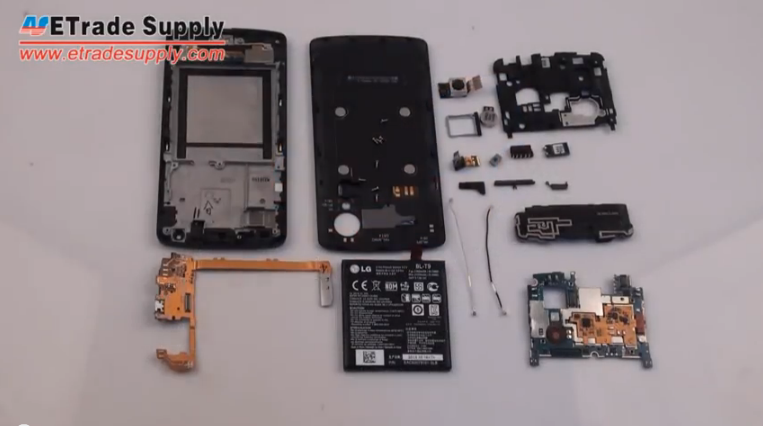

How to Reassemble Nexus 5 for Parts Replacement

Cracked the screen on your Nexus 5 and don’t know what to do with it? If you choose to DIY repair broken Nexus 5, you can follow this tutorial of repairing a cracked Nexus 5 screen. After that, follow the steps blow to reassemble your Nexus 5 after parts replacement.

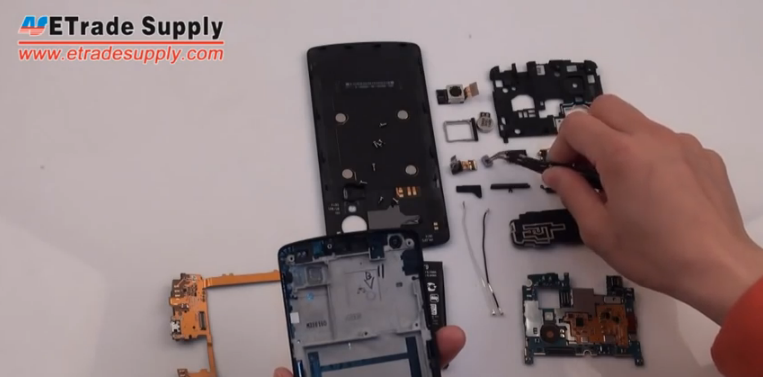

Step 1:

Use tweezers to install the Nexus 5 rubber gasket.

Step 2:

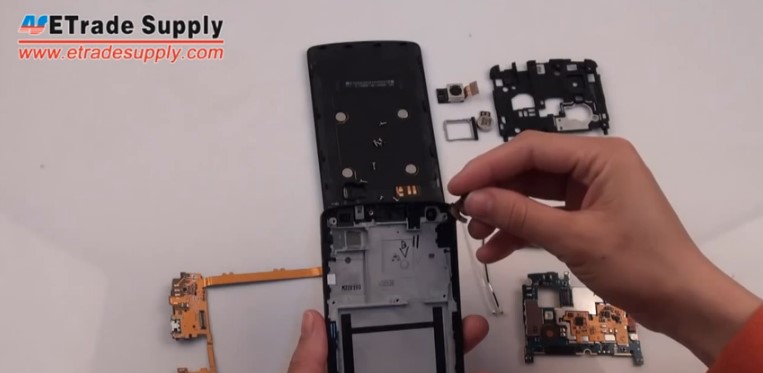

Replace the Nexus 5 front facing camera.

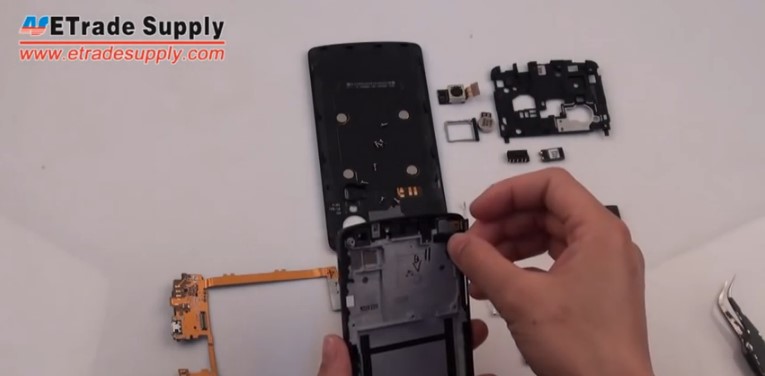

Step 3:

Secure the front camera with the black tape.

Step 4:

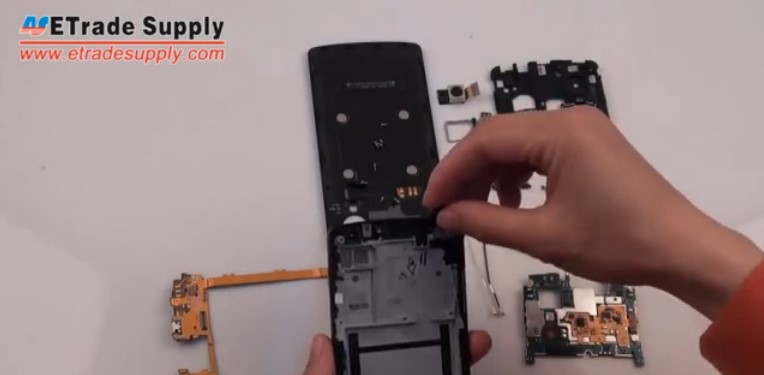

Install the Nexus 5 earphone jack.

Step 5:

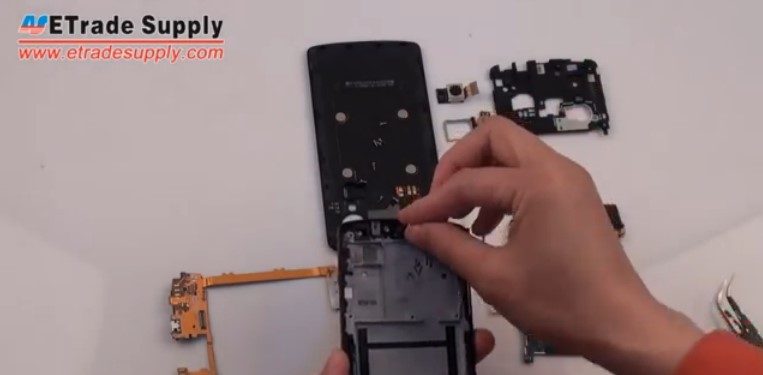

Put the Nexus 5 ear speaker back.

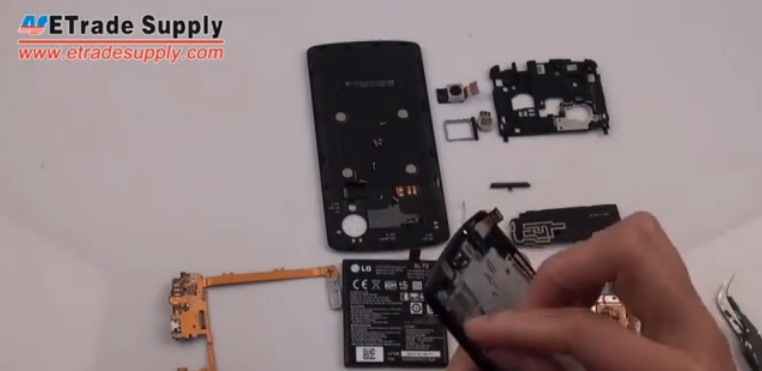

Step 6:

Reassemble the Nexus 5 power button.

Step 7:

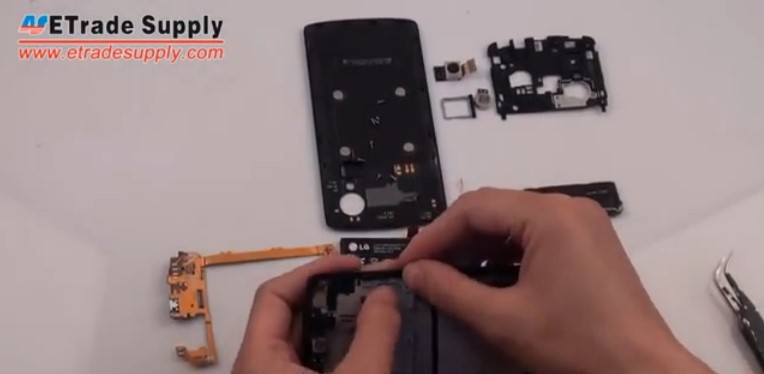

Install the Nexus 5 volume button.

Step 8:

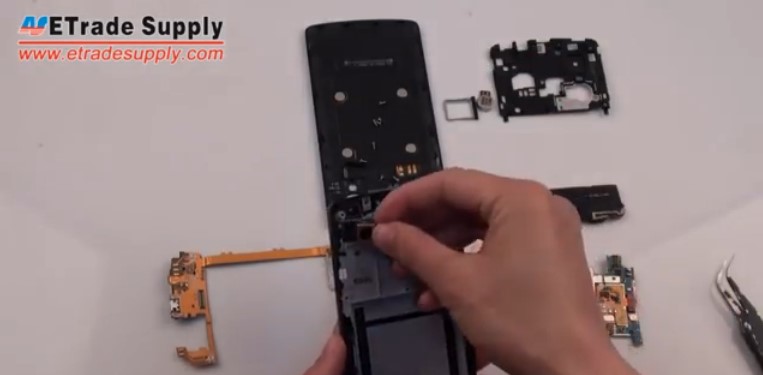

Replace the Nexus 5 rear facing camera.

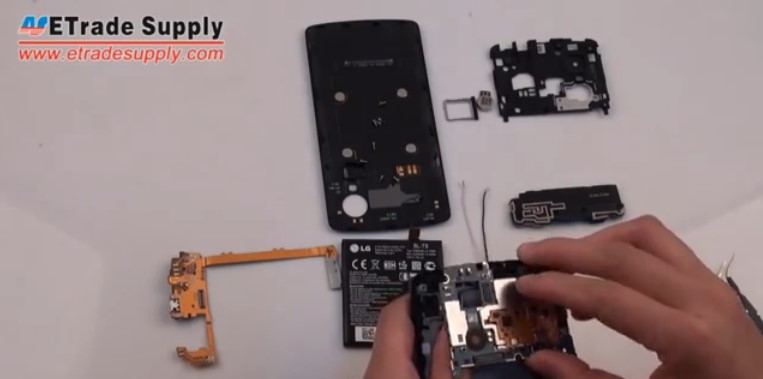

Step 9:

Install the Nexus 5 mainboard.

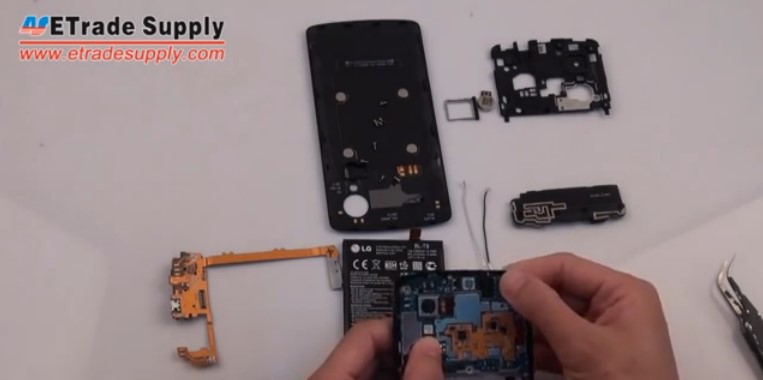

Step 10:

Buckle the two cameras’ connectors.

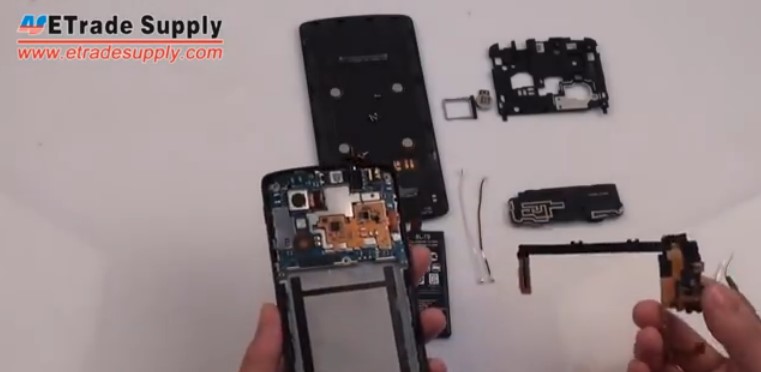

Step 11:

Install the Nexus 5 charging port flex cable ribbon.

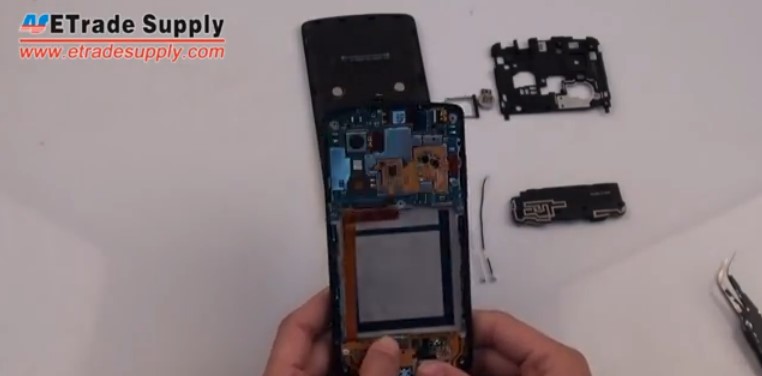

Step 12:

Buckle the connector on Nexus 5 charging port flex cable.

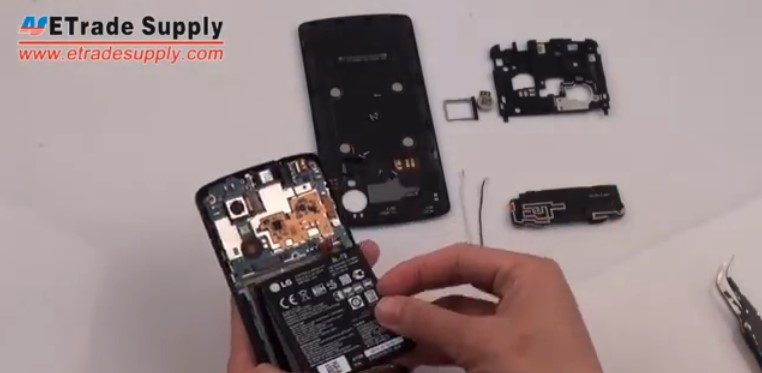

Step 13:

Install the Nexus 5 battery.

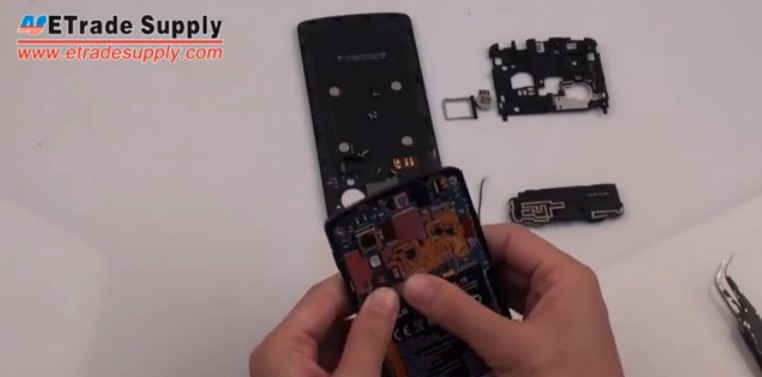

Step 14:

Buckle the connector.

Step 15:

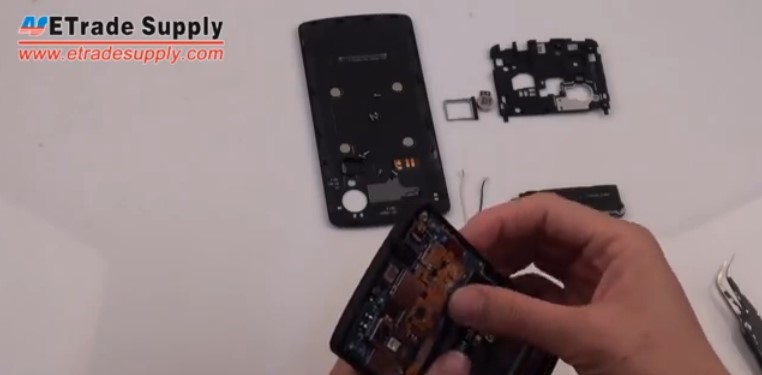

Buckle the Nexus 5 battery connector.

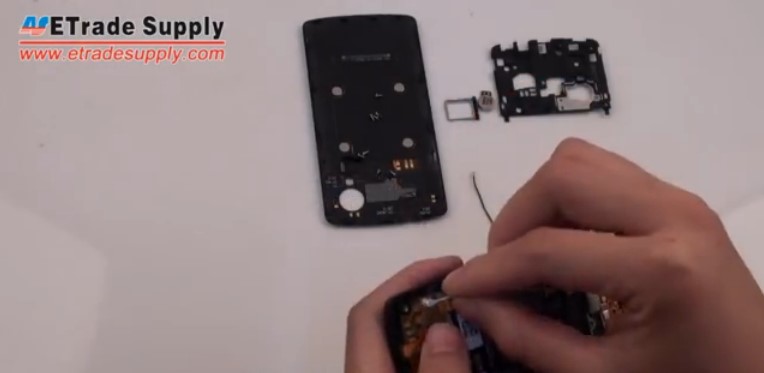

Step 16:

Plug the 4G antenna cable.

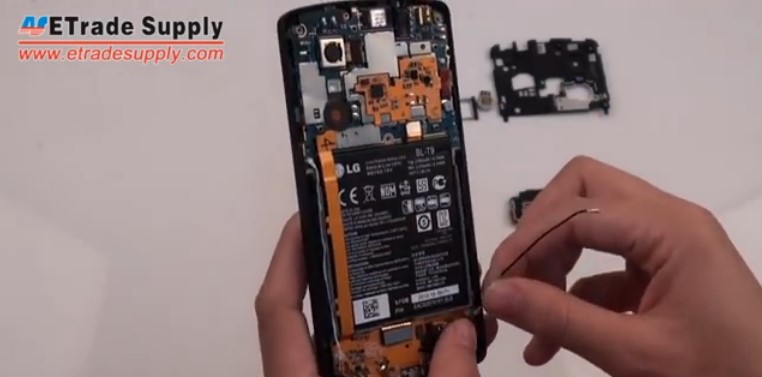

Step 17:

Plug the 3G antenna cable of Nexus 5.

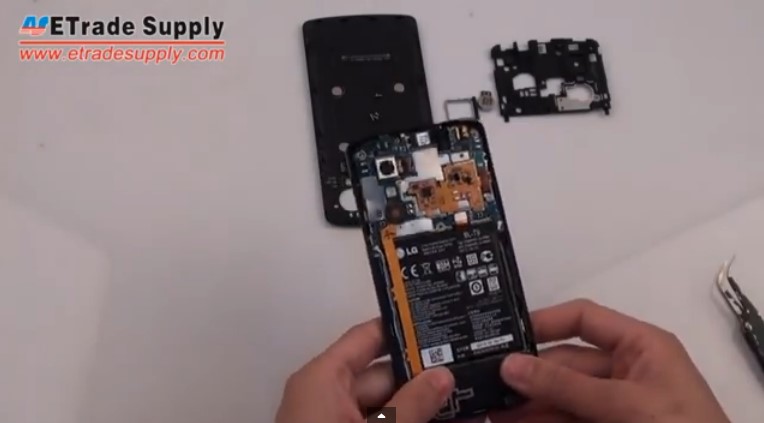

Step 18:

Assemble the Nexus 5 loud speaker module and fasten it with 4 screws.

Step 19:

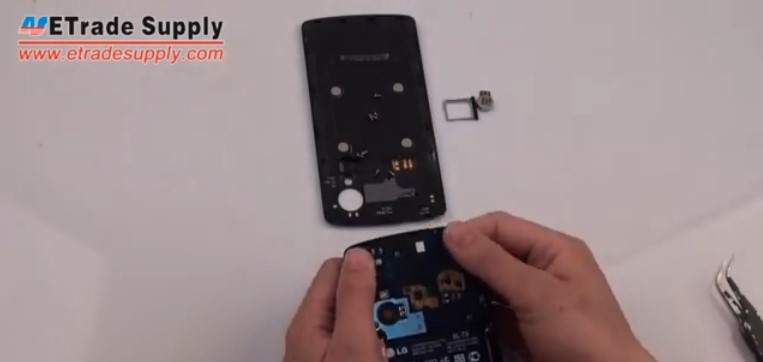

Install the Nexus 5 rear housing.

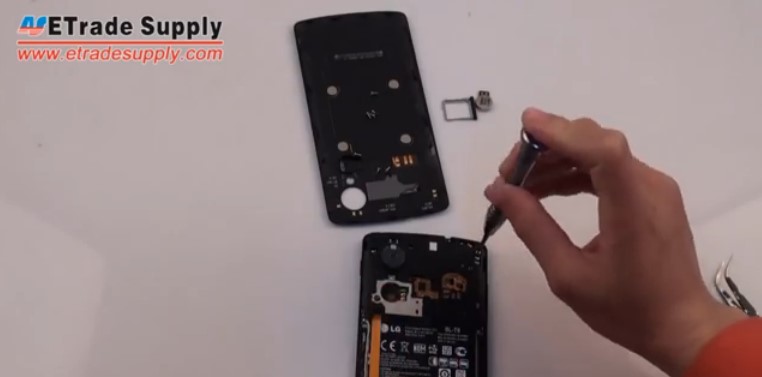

Step 20:

Fasten the Nexus 5 rear housing with six screws.

Step 21:

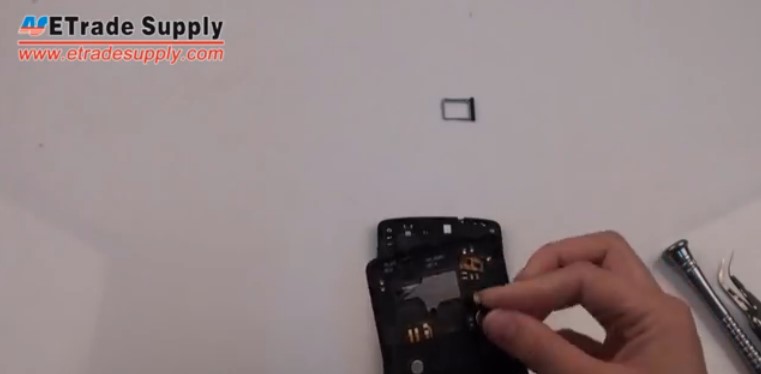

Reassemble the Nexus 5 vibrating motor.

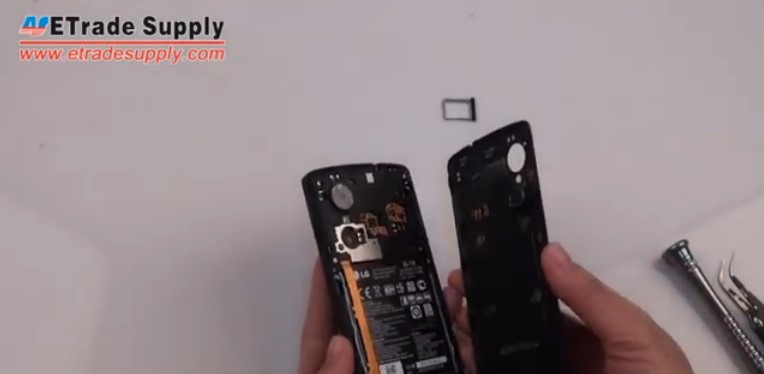

Step 22:

Close the Nexus 5 battery door.

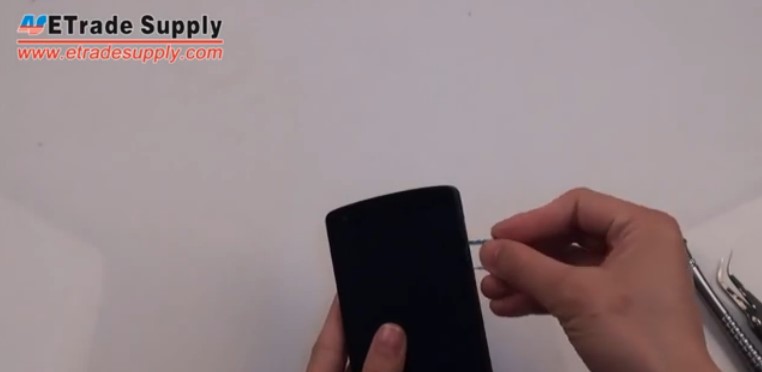

Step 23:

Insert the Nexus 5 SIM card tray.

Step 24:

Nexus 5 reassembly is completed!

You can follow this YouTube tutorial: Nexus 5 Reassembly Guide for Screen Replacement or Other Broken Parts Repair to step-by-step assemble your Nexus 5.
