LG G3 Reassembly

Tools Needed:

ž   Tweezers

ž   Philip screwdriver

LG G3 Reassembly



1.Put the rear camera into the slot.

1.	Put the rear camera into the slot

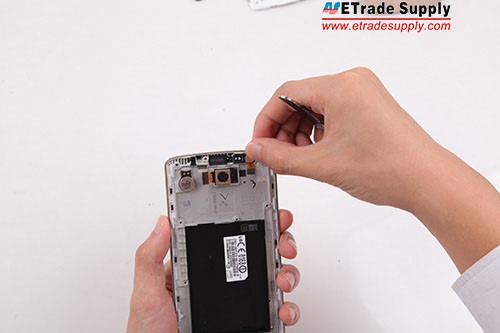

2.Insert the front camera into the slot, then press it down.

Insert the front camera

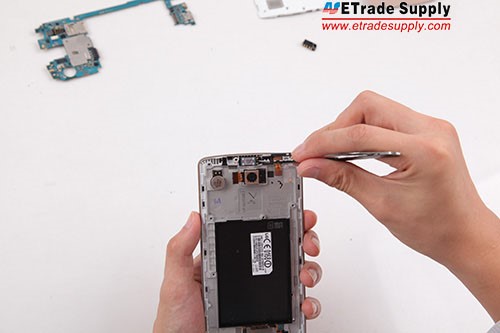

3.Put the earphone piece into the right place.

Put the earphone piece

4.Insert the earphone jack into the slot.

Insert the earphone jack

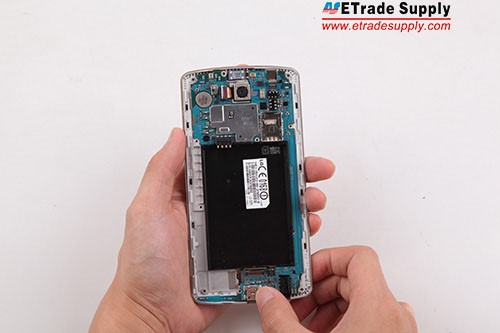

5.Assemble the motherboard with the front housing. Handle carefully for the sensitive PCB board. Notice the flex cables in the bottom, or they may hinder this process.

Assemble the motherboard with the front housing

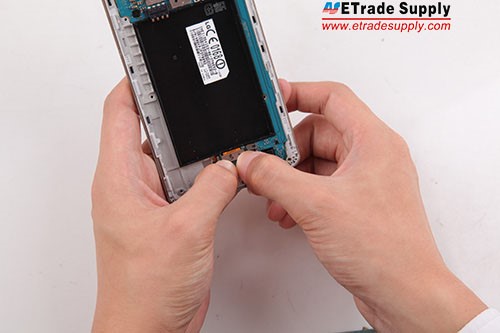

6.Connect the LCD Assembly connectors on the motherboard.

Connect the LCD Assembly connectors

7.Cover the upper half of the rear housing on the main board.

Cover the upper half of the rear housing

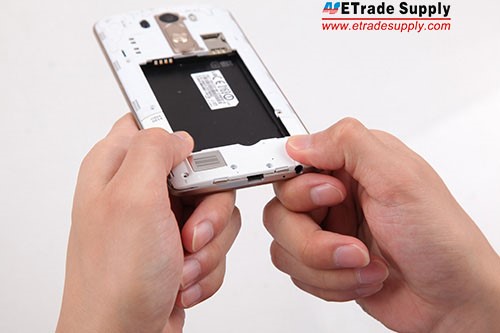

8.Cover the bottom half of the rear housing on the loud speaker assembly and press it down carefully.

Cover the bottom half of the rear housing

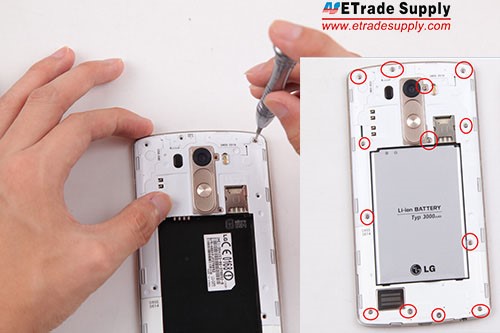

9. Fasten the rear housing with 13 screws.

Fasten the rear housing

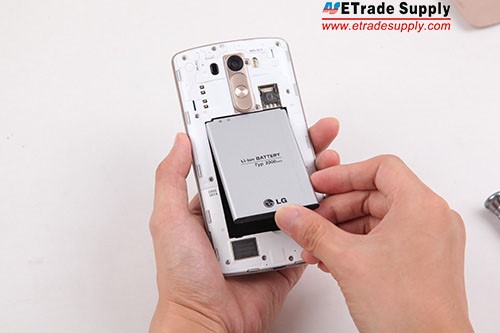

10.Put in the battery and cover the battery door. Finally, the LG G3 reassembly finished.

Put in the battery and cover the battery door                       We show you how to reassemble your LG G3 step by step.

we hope it  is helpful by watching  our tutorial to fix your broken cellphone.
