Cracked the screen on your HTC One X? Don’t worry. This HTC One X screen replacement repair guide could help you. Please note the DIY repair might save money but it will void your device’s warranty.
ETrade Supply is always your prime choice to get the
HTC One X replacement parts.

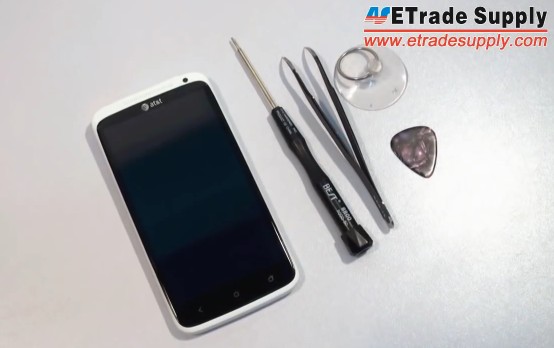

Tools and parts needed for replacing the HTC One X screen:
Suction cup
Tweezers
Plastic opening pry tool
Small Phillips screwdriver
New HTC One screen replacement part

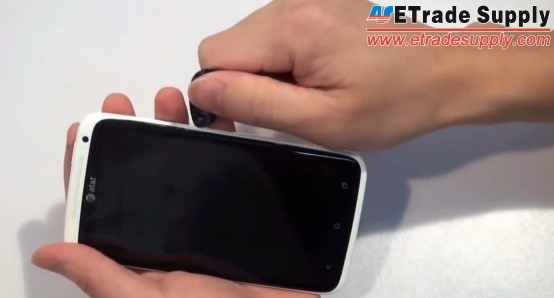

Step 1
Power the device off and remove the SIM card tray.

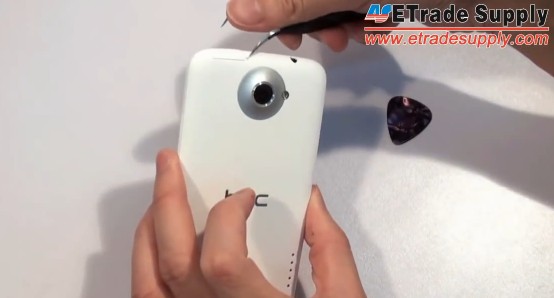

Step 2

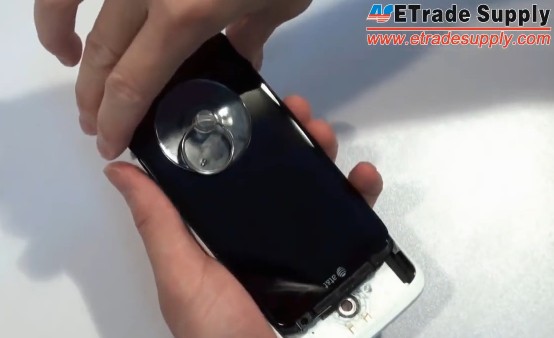

Use plastic opening pry tool and suction cup to remove the rear housing.

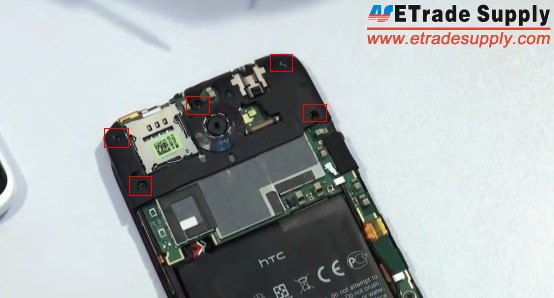

Step 3
Use small Phillips screwdriver to remove 5 screws.

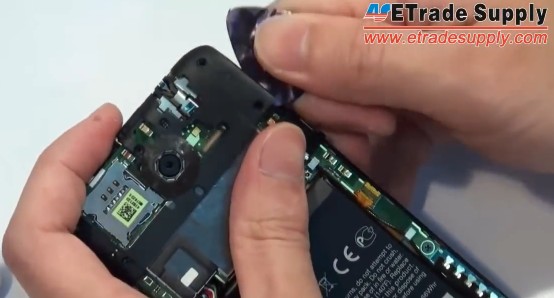

Step 4
Use plastic opening pry tool to remove the internal top cover.
Step 5

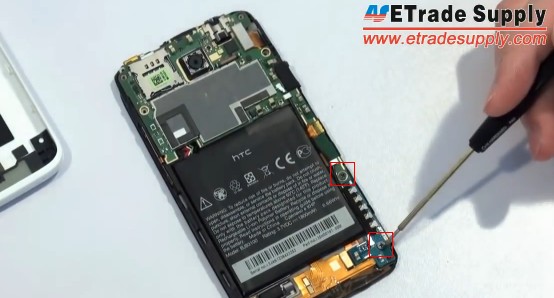

Use small Phillips screwdriver to remove 2 screws.

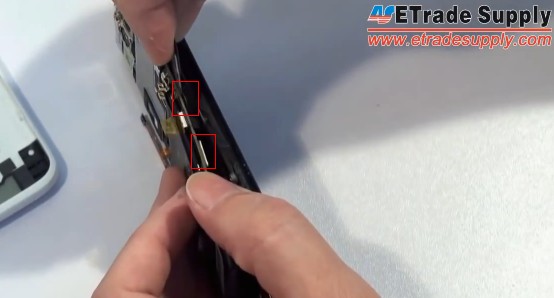

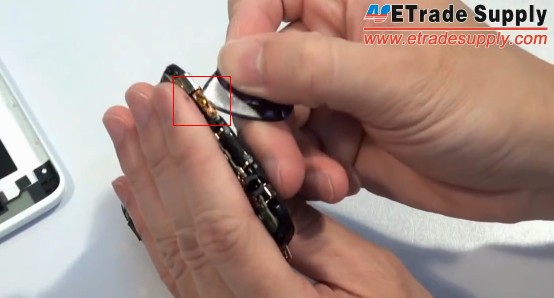

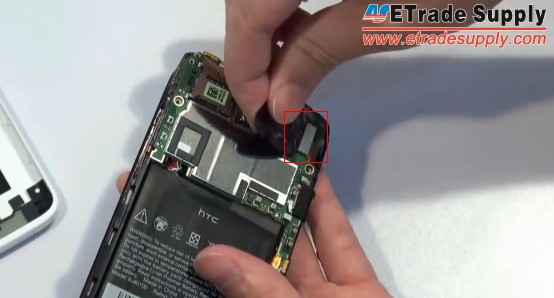

Step 6

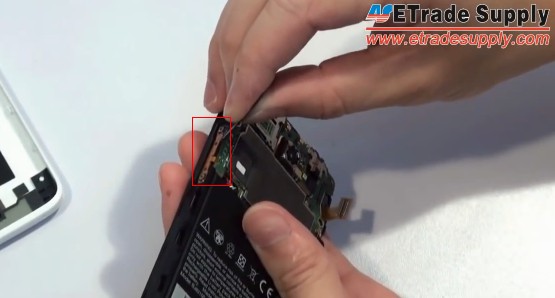

Disconnect the LCD flex cable, side key and power button connectors.

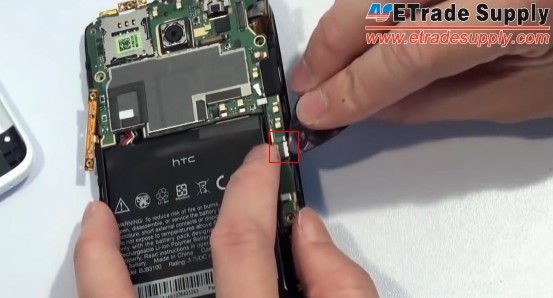

Step 7

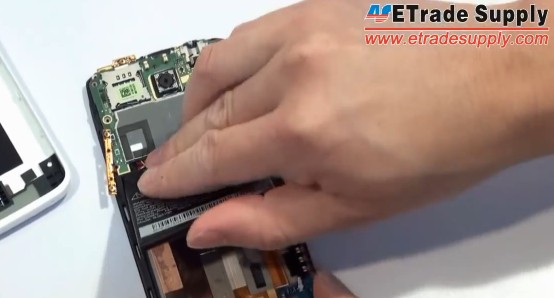

Lift up the battery and then disconnect 3 connectors.
Step 8

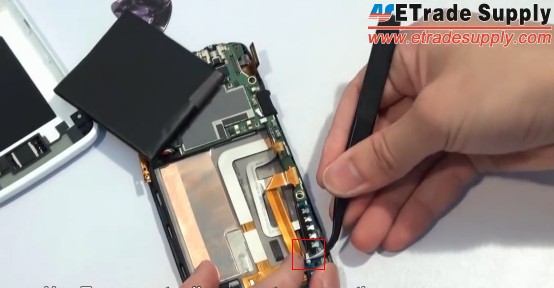

Use tweezers to disconnect antenna to remove it.

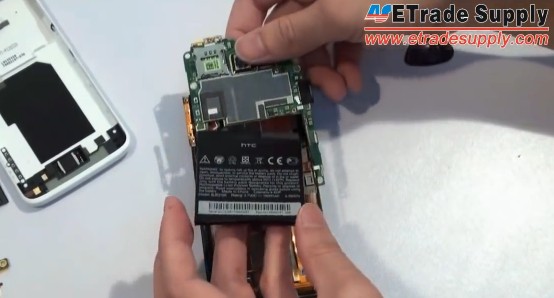

Step 9
Remove the motherboard with battery.

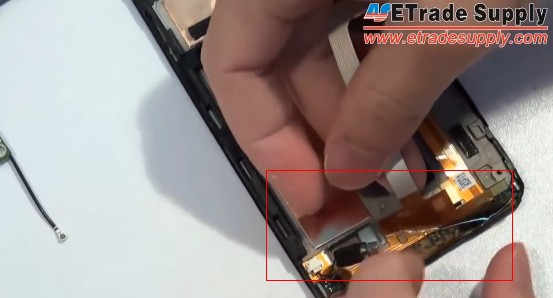

Step 10

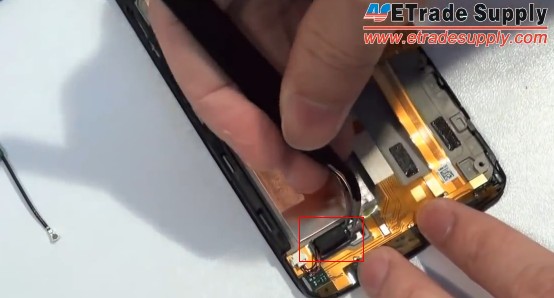

Remove the vibrating motor with Navigation Light flex cable ribbon.

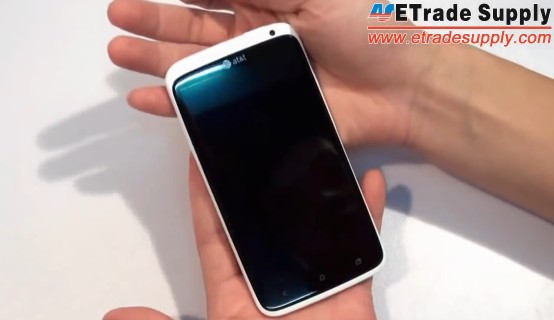

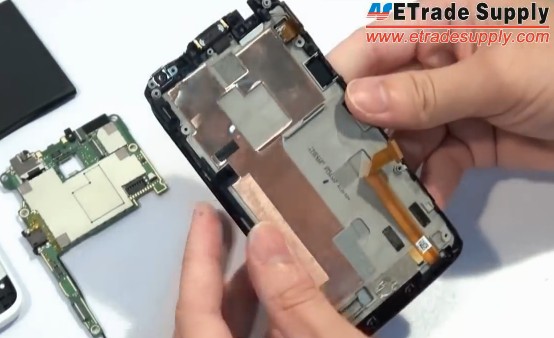

Now only the screen assembly with front housing is left.
If you get a new
HTC One X screen replacement with front housing, you can assemble the new screen now as the steps above in reverse order. But if you get a new
HTC One X screen replacement without front housing, you have to transfer the front housing from the cracked screen to the new one.
Watch the HTC One X (AT&T version) disassembly video below for more detailed information.
