How To Repair A Broken Galaxy Note Edge Screen

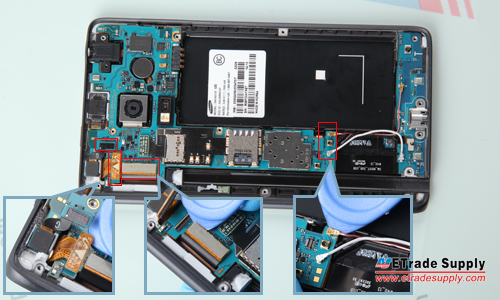

Smartphone screens are still easily damaged after sudden drops even though they’re protected by advanced glass and cases. Is this curved display Galaxy Note Edge hard to repair? Here we walk you through how to repair a broken Galaxy Note Edge screen.   Tools Needed: 1. Tweezers; 2. Phillips Screwdriver; 3. Case Opening Tool; 4. Galaxy Note Edge LCD Screen and Digitizer Assembly Replacement. Note Edge Disassembly 1. Remove the Galaxy Note Edge S Pen. ● Power off the device; ● Pull out the S Pen stylus. Note Edge S Pen Off 2. Remove the Galaxy Note Edge Battery Door. ● Pull the battery door out through the small gap between the power button and the battery door. Note Edge Battery Door Off 3. Remove the Galaxy Note Edge Battery. Note Edge Battery Off 4. Remove the Galaxy Note Edge Rear Housing. ● Undo the 15 screws in the rear housing; ● Insert the case opening tool to take out the rear housing. (Notice: The loudspeaker assembly is located in the rear housing and difficult to remove.) Note Edge Rear Housing Screw Off Note Edge Rear Housing Off 5. Remove the Galaxy Note Edge Motherboard. ● Pry up the 5 connectors; ● Release the upper portion of the motherboard; ● Pry up the connector on the back of the board to release the bottom part of motherboard. Note Edge Motherboard Connectors Off Note Edge Motherboard Connectors Off 2 6. Remove the Galaxy Note Edge Charging Port Flex Assembly. ● Pry up the 3 connectors; ● Undo the screw; ● Release the USB charger port flex assembly. Note Edge Charging Port Flex Off 8. Remove Small Parts from the Galaxy Note Edge. ● Remove the front facing camera; ● Remove the proximity sensor; ● Remove the ear speaker with power button flex; ● Remove the vibrating motor; ● Remove the earphone jack; ● Remove the volume button flex. (Notice: The power button and volume button are assembled in the front housing and not easily removed.) Note Edge Front Housing Small Partd Off Note Edge Side Keys The Galaxy Note Edge disassembly is now completed. Please note the front housing is attached to the Galaxy Note Edge LCD Touch Screen by a very strong adhesive, we do not recommend attempting to separate the frame from the LCD assembly, as it’s very difficult with a high risk of breakage. Thus, replace the cracked Galaxy Note Edge screen with a new one in reverse orders.
