How To Disassemble Samsung Galaxy Note Edge

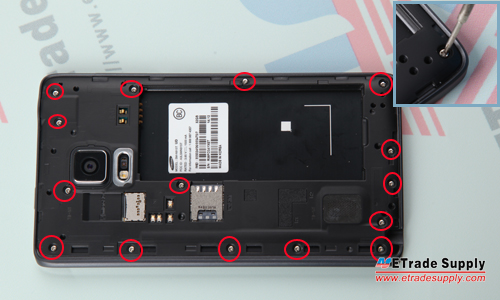

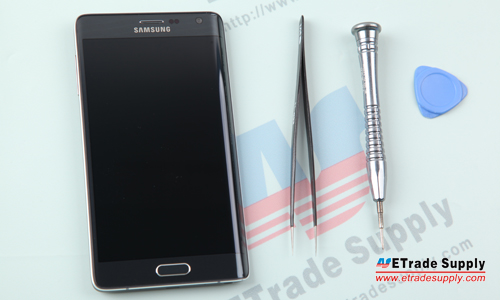

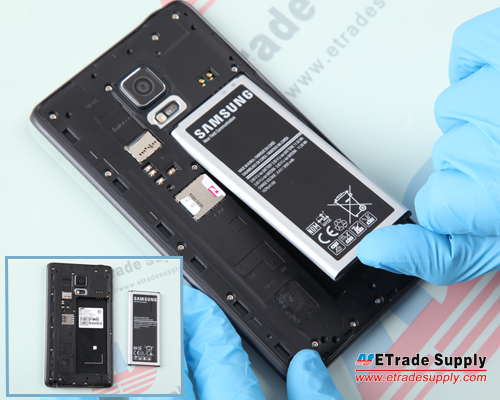

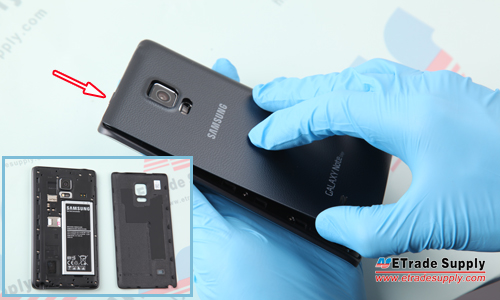

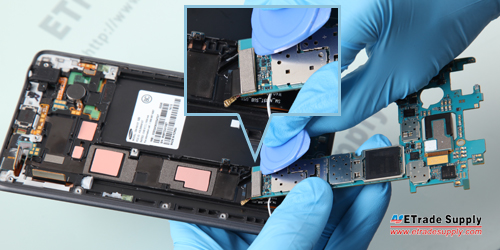

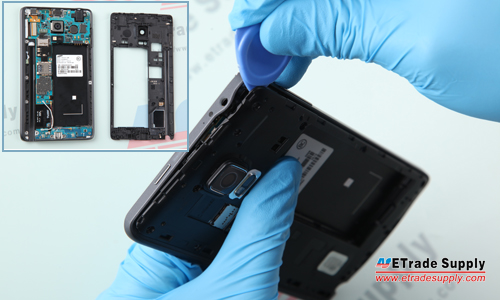

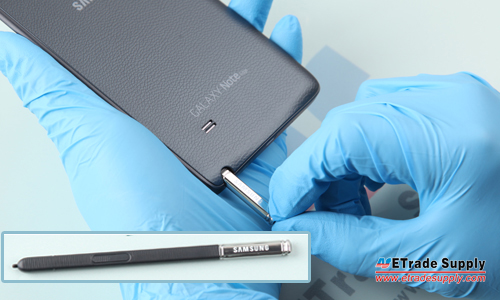

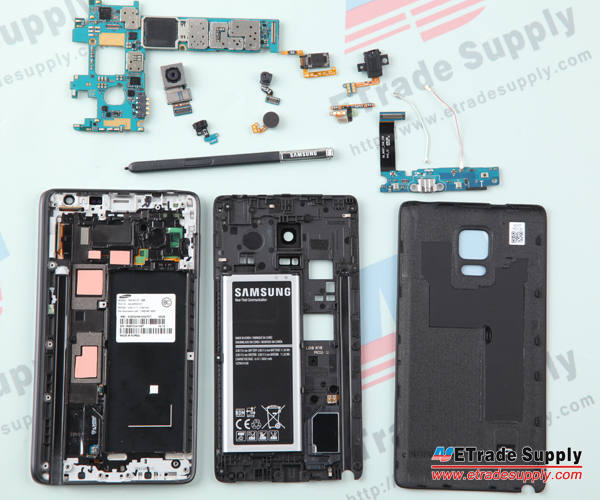

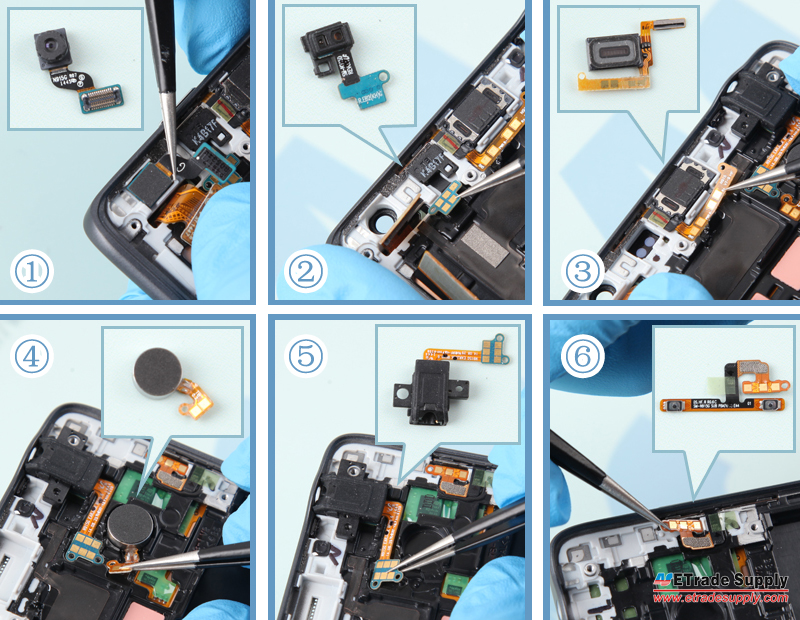

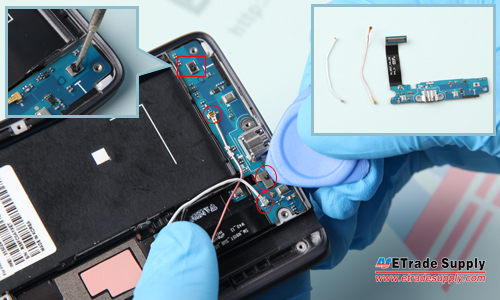

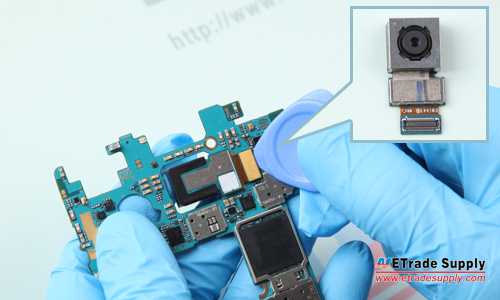

The most distinct feature of the Samsung Galaxy Note Edge is the curved display, which is a new and quick way for users to access frequently used apps, notifications and other information all with the swipe of a thumb. What else is inside to make the device so special? Let’s tear down the Galaxy Note Edge and have a look.   Tools Needed: 1. Tweezers; 2. Phillips Screwdriver; 3. Case Opening Tool.   Note Edge Disassembly 1. Remove the Galaxy Note Edge S Pen. ● Power off the device; ● Pull out the S Pen stylus. Note Edge S Pen Off 2. Remove the Galaxy Note Edge Battery Door. ● Pull the battery door out through the small gap between the power button and the battery door. Note Edge Battery Door Off 3. Remove the Galaxy Note Edge Battery. Note Edge Battery Off 4. Remove the Galaxy Note Edge Rear Housing. ● Undo the 15 screws in the rear housing; ● Insert the case opening tool to take out the rear housing. (Notice: The loudspeaker assembly is located in the rear housing and difficult to remove.) Note Edge Rear Housing Screw Off Note Edge Rear Housing Off 5. Remove the Galaxy Note Edge Motherboard. ● Pry up the 5 connectors; ● Release the upper portion of the motherboard; ● Pry up the connector on the back of the board to release the bottom part of motherboard. Note Edge Motherboard Connectors Off Note Edge Motherboard Connectors Off 2 6. Remove the Galaxy Note Edge Rear-Facing Camera. ● Pry up the connector on the back side of the motherboard; ● Remove the back camera. Note Edge Rear Camera Off 7. Remove the Galaxy Note Edge Charging Port Flex Assembly. ● Pry up the 3 connectors; ● Undo the screw; ● Release the USB charger port flex assembly. Note Edge Charging Port Flex Off 8. Remove Small Parts from the Galaxy Note Edge. ● Remove the front facing camera; ● Remove the proximity sensor; ● Remove the ear speaker with power button flex; ● Remove the vibrating motor; ● Remove the earphone jack; ● Remove the volume button flex. (Notice: The power button and volume button are assembled in the front housing and not easily removed.) Note Edge Front Housing Small Partd Off Note Edge Side Keys The Galaxy Note Edge disassembly is now completed. The front housing is attached to the Galaxy Note Edge LCD Touch Screen by a very strong adhesive; we do not recommend attempting to separate the frame from the LCD assembly, as it’s very difficult with a high risk of breakage. Note Edge Disassembly Finished

  1. BY Mervin
    |

    Do you repair samsung note edge? I cant turn it on

    • BY kaye
      |

      Hi Mervin, glad to hear from you but we ETrade Supply don’t repair cellphone, we sell mobile spare parts online.

  2. BY Thomas
    |

    Hi,
    My SD Card isn’t being detected. I have tried multiple cards and its just not working on my Note Edge but works elsewhere. I found the SD Card/Sim Card Flex cable part online. Is it possible to replace the part as its on the logic board? Is it soldered or is it just a connector that needs to be clicked on?
    Thanks in advance. 🙂

  3. BY Chin
    |

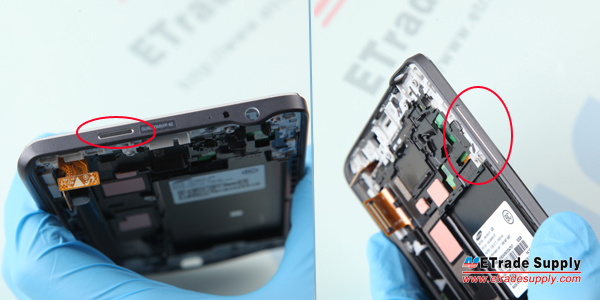

    Can you help me on how to swap power and volume buttons. Somehow I received a frame assembly replacement which does not have them.

  4. BY Robert
    |

    My sensors don’t seems to work, what will be the problem because I had it tested on a different board and it worked

  5. BY Rjay Oso
    |

    Hi Thanks for sharing!

    Can you tell me where the gps antenna is located? Thanks!

    • BY May
      |

      Hi Rjay, please check on step 7, one of the two cables is the GPS antenna.

      • BY Eric Orosz
        |

        Which cable in example 7 is for gps?

      • BY Rjay Oso
        |

        Thanks so much may! 🙂

        • BY May
          |

          No problem, hope it helps 🙂
