How To Disassemble Nexus 6 In 10 Steps





Released in October of 2014, the Nexus 6 is the 6th generation smartphone in the Google Nexus family. The Nexus 6 runs the latest Android OS, Android 5.0 "Lollipop" and will be the first Nexus device to support T-Mobile's Wi-Fi calling which will arrive in early 2015. As it’s manufactured by Motorola, the Nexus 6 features similar hardware as the Moto X 2nd, let’s tear down the device and have a closer look.



Tools Needed:





Nexus 6 disassembly



1. Remove the Motorola Nexus 6 SIM Card Tray.



  • ● Power off the device;
  • ● Use an eject pin or tweezers to release the SIM card tray.



Nexus 6 take out sim card tray



2. Remove the Motorola Nexus 6 Battery Door.



  • ● Heat up the battery door for 2 minutes to soften the battery door adhesive;
  • ● Insert the case opening tool and pry up the battery door.



Nexus 6 pry up battery door



3. Remove the Motorola Nexus 6 Rear Housing Assembly.



  • ● Undo the 22 screws in the rear housing as shown below;
  • ● Gently remove the rear housing assembly from the screen assembly.



Nexus 6 rear housing screws



Nexus 6 take out rear housing



4. Release the Connectors in the Rear Housing.



  • ● Remove the gasket on the rear housing near the bottom of the phone;
  • ● Carefully pry up the flex ribbon connector underneath;
  • ● Remove the gasket on the rear housing near the top of the phone;
  • ● Carefully pry up the flex ribbon connector underneath.



Nexus 6 (56)



Nexus 6 (57)



5. Release the Flex Cable Ribbon Extender.



●  Carefully pry up the latch on the flex connector to separate it from the flex ribbon extender.



 Nexus 6 Pry up connector 3



6. Remove the Motorola Nexus 6 Battery.



  • ● Heat up the rear housing for 10 seconds to soften the battery adhesive;
  • (Notice: be more careful on this step as batteries might explode when overheated.)
  • ● Pry up the battery flex connector that adhered to the rear housing;
  • ● If you want to release the wireless charging coil as well, gently pry up the charging coil connector. However, we don’t recommend performing this step as you run a high risk of damaging the charging coil and battery.

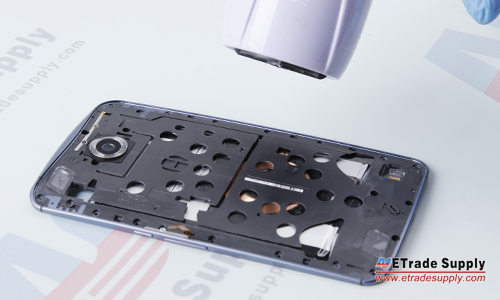

 Nexus 6 heat up battery

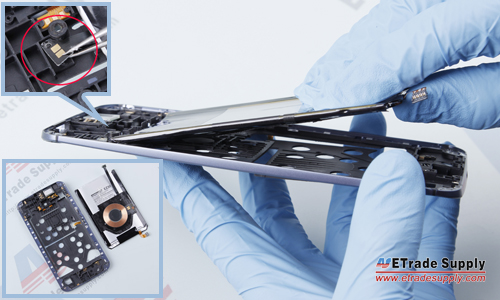

Nexus 6 take out battery



7. Release the Motorola Nexus 6 Side Keys.



  • ● Undo the screw that locks the side key metal bracket;
  • ● Remove the side key flex cable ribbon.

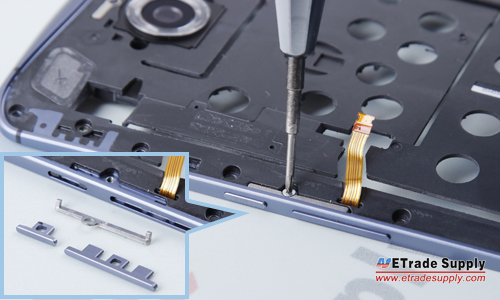

Nexus 6 undo side key screw

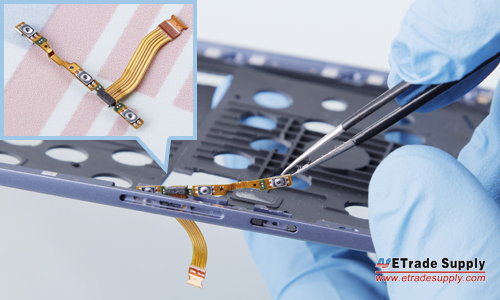

Nexus 6 take out side key flex



8. Remove the Motorola Nexus 6 Motherboard.



  • ● Undo the screw and metal bracket that locks the front housing and main board;
  • ● Pry up the LCD flex connector and digitizer connector;
  • ● Remove the motherboard.



Nexus 6 undo main board screw



Nexus 6 pry up main board connector





9. Remove the Motorola Nexus 6 Cameras.



  • ● Pry up the rear-facing camera flex connector;
  • ● Remove the back camera;
  • ● Pry up the front-facing camera flex connector;
  • ● Remove the front camera;



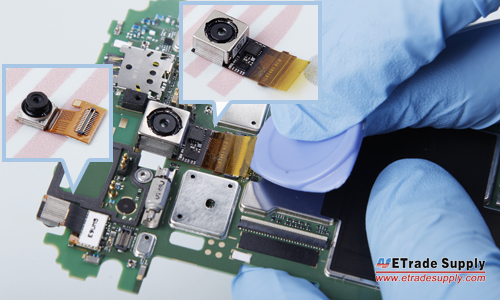

Nexus 6 motherboard view 2



10. Remove the Motorola Nexus 6 Ear Speaker and Headphone Jack.



  • ● Remove the front speaker.
  • (Notice: be careful not to scratch the flex ribbon underneath.)
  • ● Remove the headphone jack.
  • (Notice: the headphone jack is strongly attached to the front housing with an adhesive.)



Nexus 6 take out ear speaker 2



Nexus 6 take out earphone jack



The Motorola Nexus 6 disassembly is now completed.

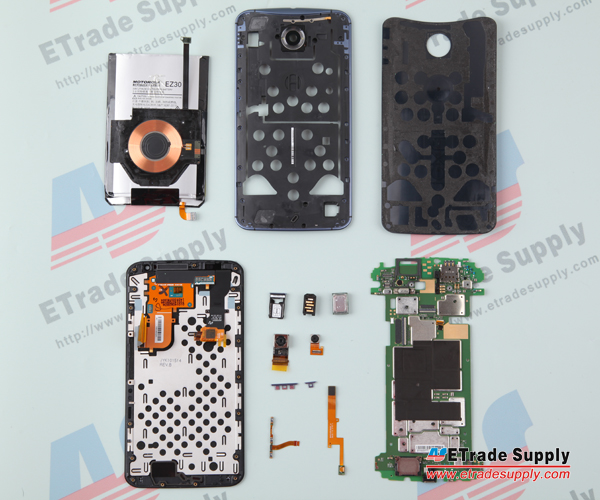

Nexus 6 disassembly done
