How to Tear Down Samsung Galaxy S6 Edge In 5 Steps Within 10 Minutes


We got a hold of Samsung's Galaxy S6 Edge and tore it down for you. During the disassembly, we found that taking apart this phone is way harder than Samsung's Galaxy S6. Especially, tearing down the dual-curved display was the most difficult step, and we ended up breaking the screen. So we won't show you how to remove the LCD screen in this tutorial. We do recommend any replacement should be done by a qualified repair technician. Otherwise, here we show you how to tear Samsung's Galaxy S6 Edge in 5 steps.



Tools needed:



1. Remove the battery door.

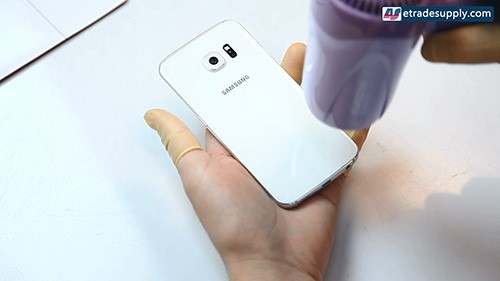

     1.1. Heat up the Galaxy S6 Edge's back cover.(Notice: the adhesive on the battery door is extremely strong. Be Very Careful! Apply heat for no longer than 1 min.)

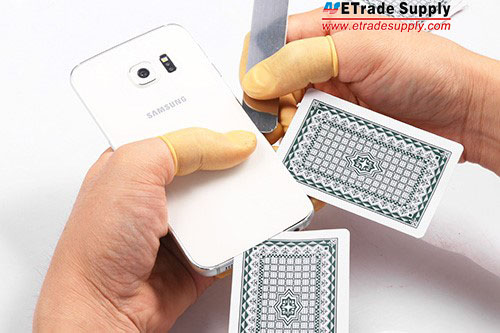

   1.2.  Insert poker cards into the edge to remove the adhesive and widen the gap.(You will also need a case opening tool.)





2. Remove the rear housing.

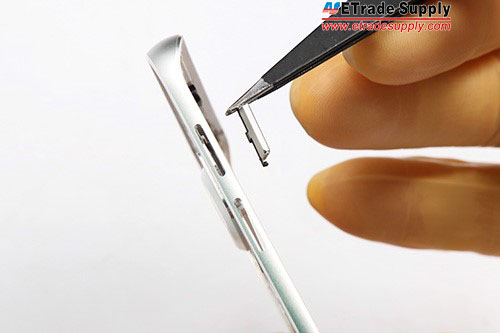

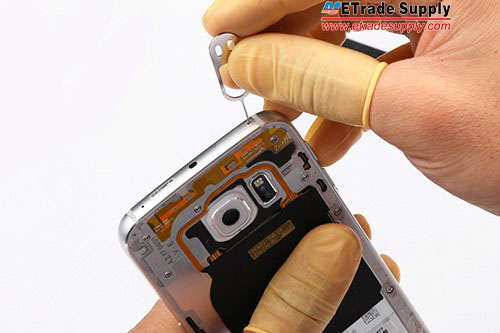

     2.1. Take the SIM card tray out.

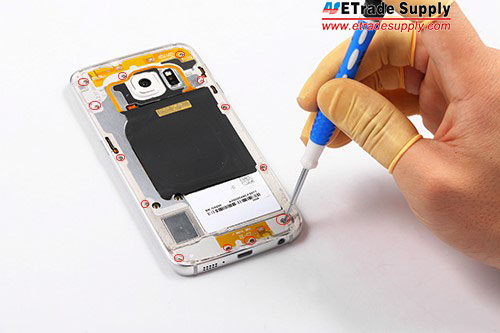

     2.2.  Undo the 13 screws in the rear housing.

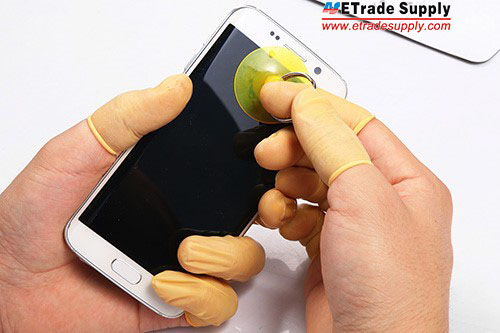

    2.3 Separate the rear housing from the LCD Assembly with the help of a suction cup tool and a case opening tool.

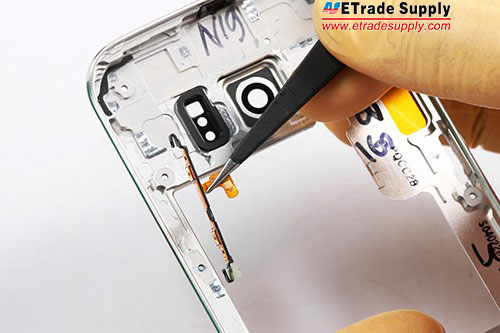

   2.4  Remove the 3 case button flex ribbon cables. (Notice: the case buttons are all interchangeable.)

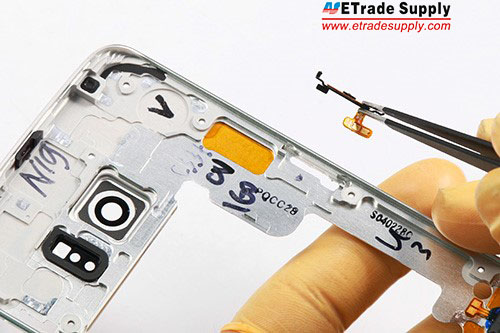

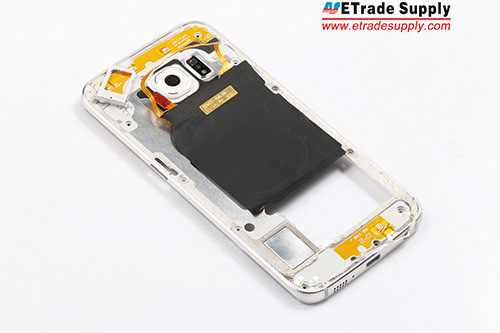

    2.5  Peel off the wireless charging coil. (Notice: the wireless charging coil is not compatible with S6.)





3.  Remove the motherboard.

     3.1 Remove the front facing camera.





   3.2 Pry up the 2 antennas from the main board.

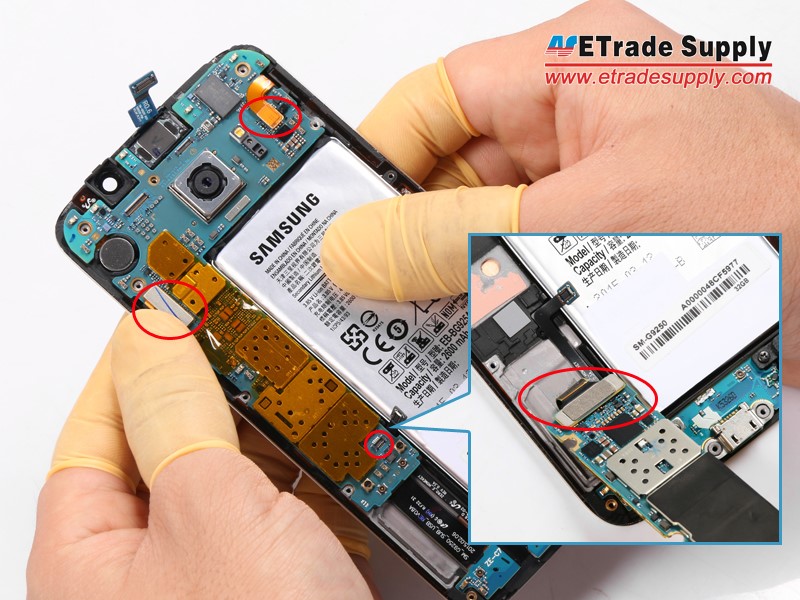

   3.3 Disconnect the Galaxy S6 LCD screen and digitizer, battery, ear speaker, and home button flex cable connectors. Turn over the motherboard and disconnect the charging port flex cable connector.

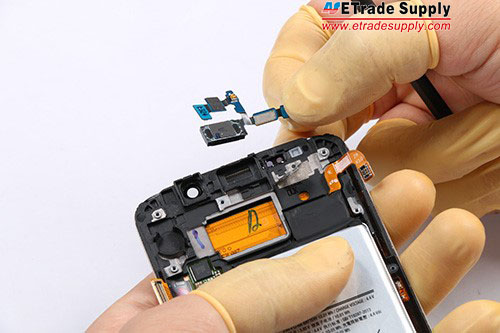

  3.4 Remove the ear speaker assembly.(Notice: The ear speaker flex cable includes the ear speaker and proximity sensor, and it is folded in a special way. Pay attention to it for reassembly.)

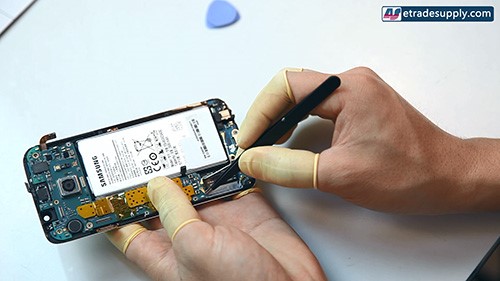

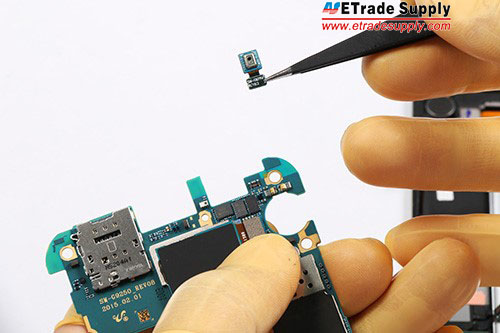

  3.5 Remove the mic from the top of the logic board. (Notice: The Galaxy S6's mic is non-removable while the Galaxy S6 edge's mic is not.)

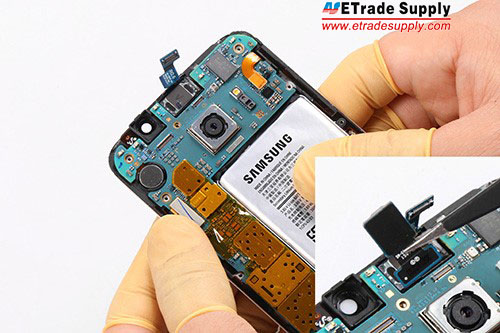

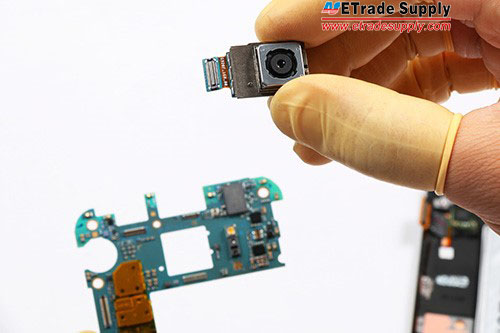

  3.6 Remove the rear facing camera.





4. Remove the charging port assembly.

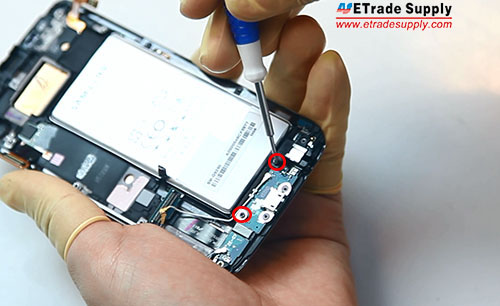

   4.1  Undo the 2 screws near the earphone jack by the charging port. These screws are smaller than those in the rear housing. Then gently pry up the charging port assembly. (Notice: These 2 screws are smaller than others. Don't mix up them up during reassembly.)





5. Remove the battery.

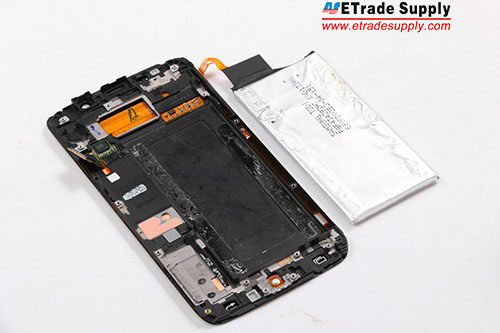

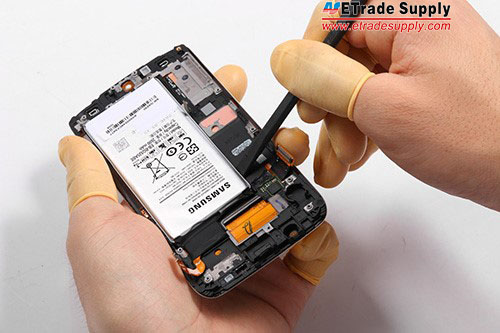

  5.1  Gently pry up the battery with a spudger tool. (Notice: Adhesive is applied to the front housing down the two sides of the battery’s length. You need to insert the spudger or other tool through the adhesive gently.)





 5.2 Notice: We recommend using a plastic spudger to prevent damage to the device.





If you have any questions about this tutorial, or issues about the Samsung Galaxy S6 Edge, comment below to let us know. We will reply ASAP, or you can contact us by email: service@etradesupply.com.
